Specifications:
| Type | AB6-A | |
| Mode of Operation | Emergency Type | |
| Contact Part Type | Normally Closed Button(NC) and Normally Opened Button(NO) | |
| Contact Material | Silver, Silver Alloy, Cladding thickness is 4μm | |
|
Withstand voltage |
Between Contact and
Lamp Terminal |
2000V,AC50Hz,1 min |
| Between Terminal of the Same Pole | 1000V,AC50Hz,1 min | |
|
Between Terminal of Different Pole |
2000V,AC50Hz,1min | |
| Vibration Resistance | 50Hz, Amplitude is about 1.2mm | |
| Shock Resistance | >10g | |
| Other Function | Waterproof | |
| Rated Voltage | AC24V,AC110V,AC220V | |
| Insulation Resistance | ≥100mΩ | |
| Contact Resistance | ≤30mΩ | |
| Lifetime | ≥100×10^4times | |
| Wiring | Diameter of Welded Wire:2×0.8mm
Area of Copper Wire Max:0.75mm² Connecting Link:2.8*0.5mm |
|
| Solder Heat Resistance | 230℃ No Than 3 second | |
| conventional thermal current | 5A | |
| International Protection | IP65 | |
| pollution level | III | |
| Above Sea Level | ≤2000m | |
| Operating temperature | -25℃~+55℃ | |
| Relative Humidity | 45~85%RH(No Condensation) | |

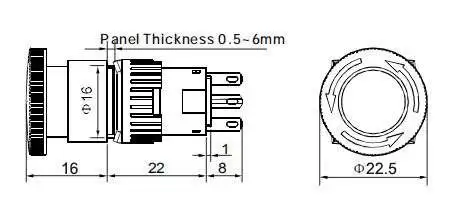

Dimensions:
