ER26500 Westinghouse C Lithium Battery 3.6V 9000mAh

ER26500 Westinghouse C Lithium  Battery 3.6V 9000mAh

The ER26500 Westinghouse C Lithium Battery 3.6V 9000mAh is a high-performance primary (non-rechargeable) battery designed for long-lasting and reliable power. With a 3.6V voltage output and a 9000mAh capacity, this lithium thionyl chloride (Li-SOCl₂) battery is ideal for applications requiring stable, high-energy density power sources.

Features:

• High Energy Density where Provides a much higher capacity compared to alkaline or NiMH batteries, ensuring longer operational life.
• Long Shelf Life where Has a low self-discharge rate (<1% per year), allowing storage for 10+ years without significant capacity loss.
• Wide Operating Temperature Range where Performs reliably in extreme environments, from -55°C to 85°C, making it suitable for harsh conditions.
• Stable Voltage Output where Maintains a consistent 3.6V output throughout most of its discharge cycle, ensuring stable device performance.
• Lightweight & Compact where Despite its high energy capacity, it remains lightweight, making it suitable for portable and remote applications.
• Reliable & Safe where Built with safety features to prevent leakage and withstand high-drain applications.

Specifications:

• Brand: Westinghouse
• Model: ER26500
• Rechargeable: Non-Rechargeable
• Battery Type: Primary Lithium Thionyl Chloride (Li-SOCl₂)
• Size: C
• Terminal Type: Standard flat contacts
• Nominal Voltage: 3.6V
• Capacity: 9000mAh (9Ah)
• Max Continuous Discharge Current: 200mA
• Max Pulse Discharge Current: 400mA

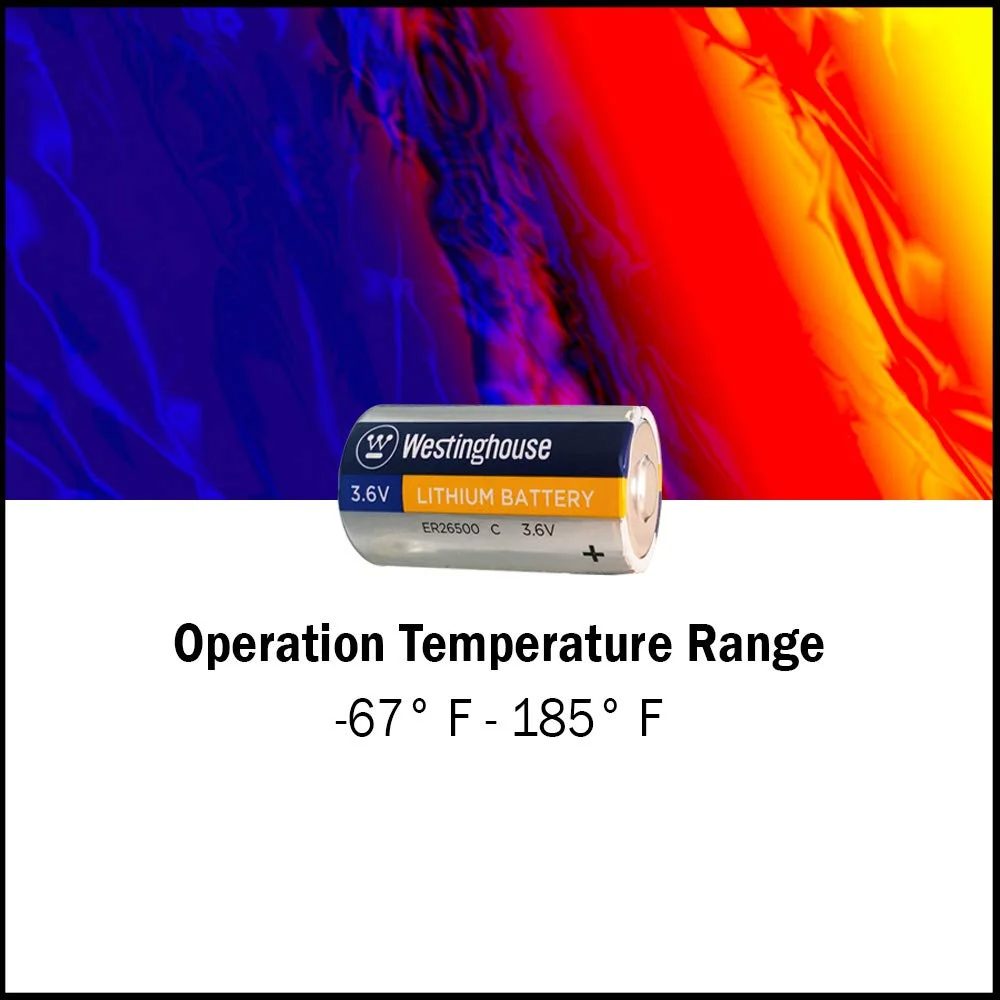

• Operating Temperature Range: -55°C to 85°C
• Self-Discharge Rate: <1% per year
• Shelf Life: 10+ years

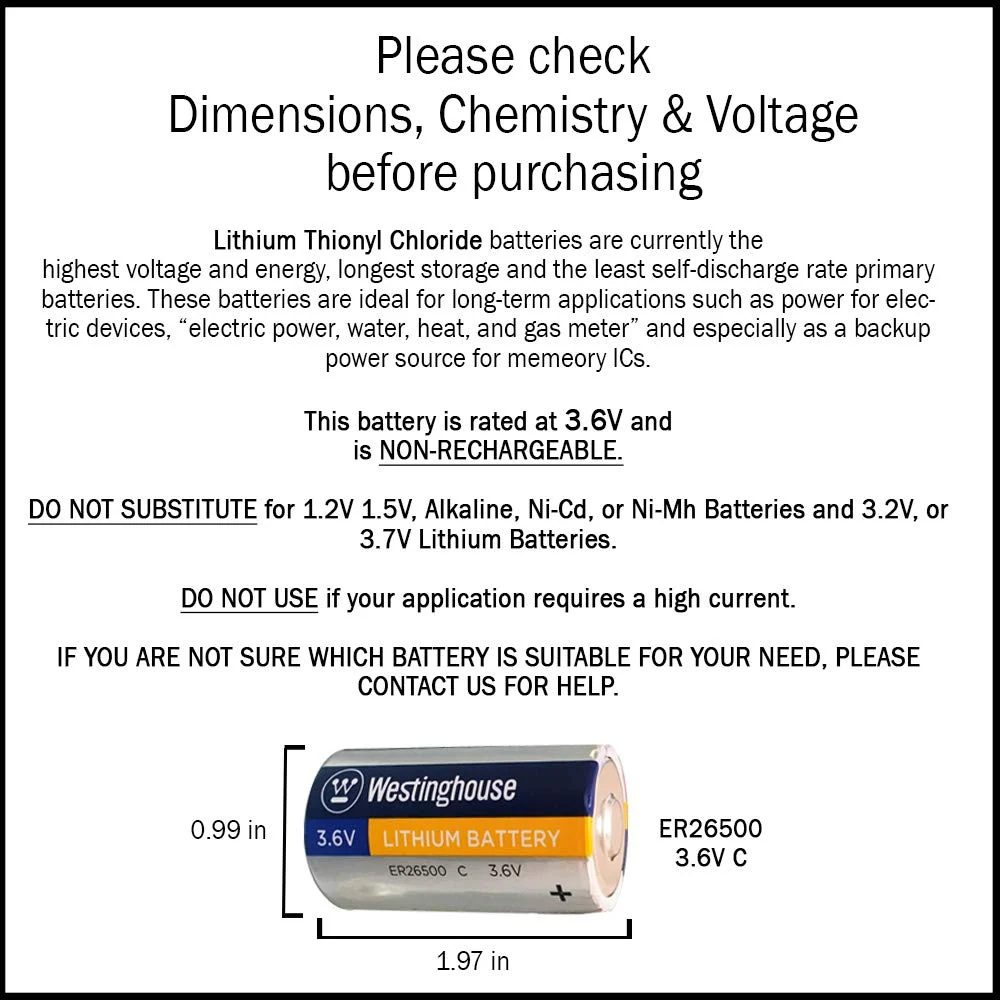

• Dimensions:
  • Diameter: 26.2mm
  • Height: 50.0mm
• Weight(Approx.): 52g

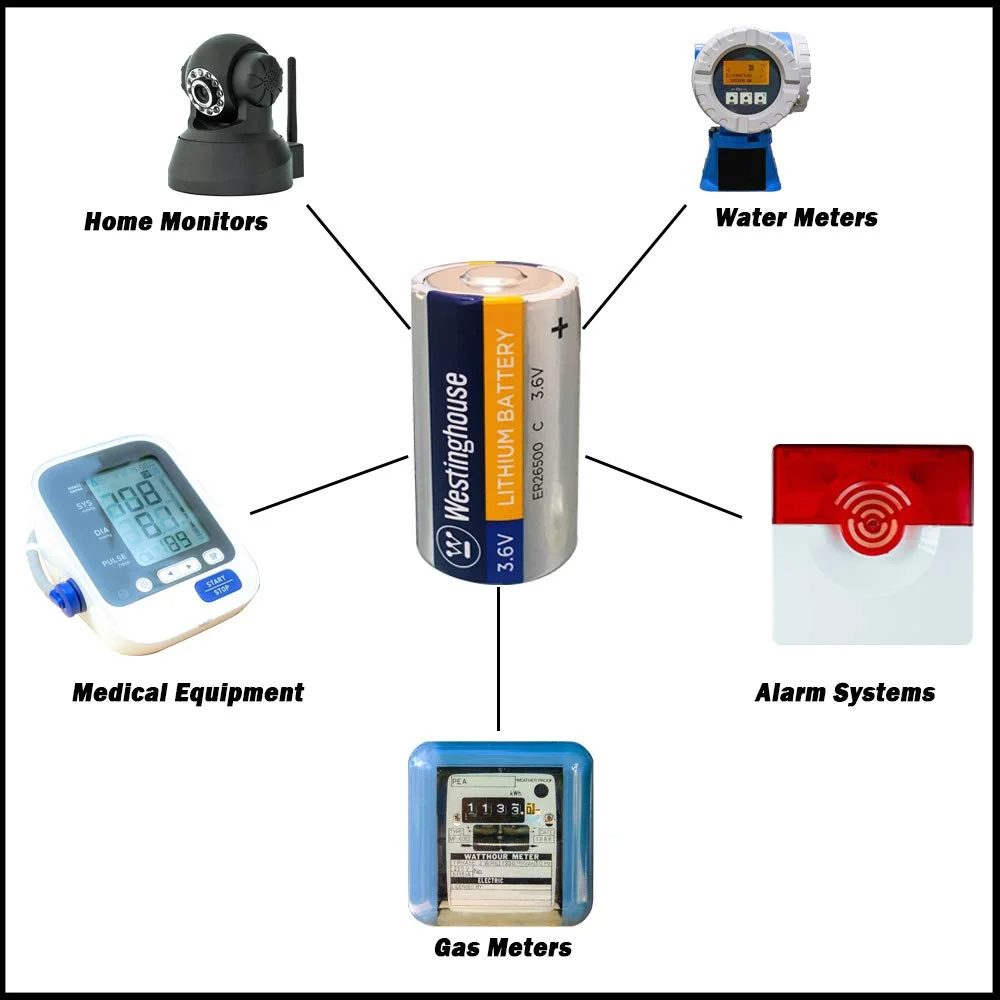

Applications:

• Utility & Metering Systems.
• Industrial & IoT Devices.
• Security & Alarm Systems.
• Medical & Healthcare Equipment.
• Military & Aerospace.
• Backup Power & Specialty Uses.
