ER26500 Westinghouse C Lithium Battery 3.6V 9000mAh
The ER26500 Westinghouse C Lithium Battery 3.6V 9000mAh is a high-performance primary (non-rechargeable) battery designed for long-lasting and reliable power. With a 3.6V voltage output and a 9000mAh capacity, this lithium thionyl chloride (Li-SOCl₂) battery is ideal for applications requiring stable, high-energy density power sources.
Features
- High Energy Density where Provides a much higher capacity compared to alkaline or NiMH batteries, ensuring longer operational life.
- Long Shelf Life where Has a low self-discharge rate (<1% per year), allowing storage for 10+ years without significant capacity loss.
- Wide Operating Temperature Range where Performs reliably in extreme environments, from -55°C to 85°C, making it suitable for harsh conditions.
- Stable Voltage Output where Maintains a consistent 3.6V output throughout most of its discharge cycle, ensuring stable device performance.
- Lightweight & Compact where Despite its high energy capacity, it remains lightweight, making it suitable for portable and remote applications.
- Reliable & Safe where Built with safety features to prevent leakage and withstand high-drain applications.
Specifications
- Brand: Westinghouse
- Model: ER26500
- Battery Type: Lithium Battery
- Chemistry: Primary Lithium Thionyl Chloride (Li-SOCl₂)
- Size: C
- Terminal Type: Standard flat contacts
- Rechargeable Availability: Non-Rechargeable
- Nominal Voltage: 3.6V
- Capacity: 9000mAh (9Ah)
- Max Continuous Discharge Current: 200mA
- Max Pulse Discharge Current: 400mA
- Operating Temperature Range: -55°C to 85°C
- Self-Discharge Rate: <1% per year
- Shelf Life: 10+ years

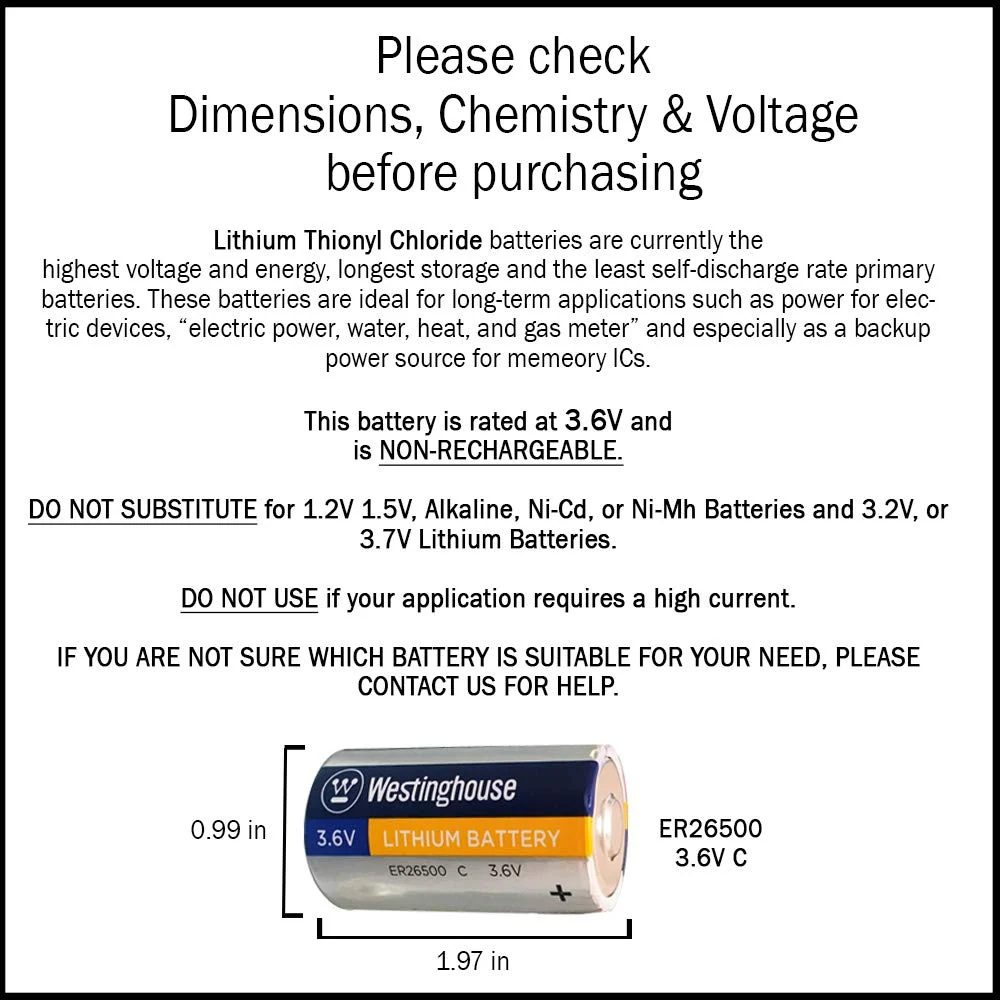

- Dimensions:
- Diameter: 25.1mm
- Height: 50.0mm
- Weight(Approx.): 52g

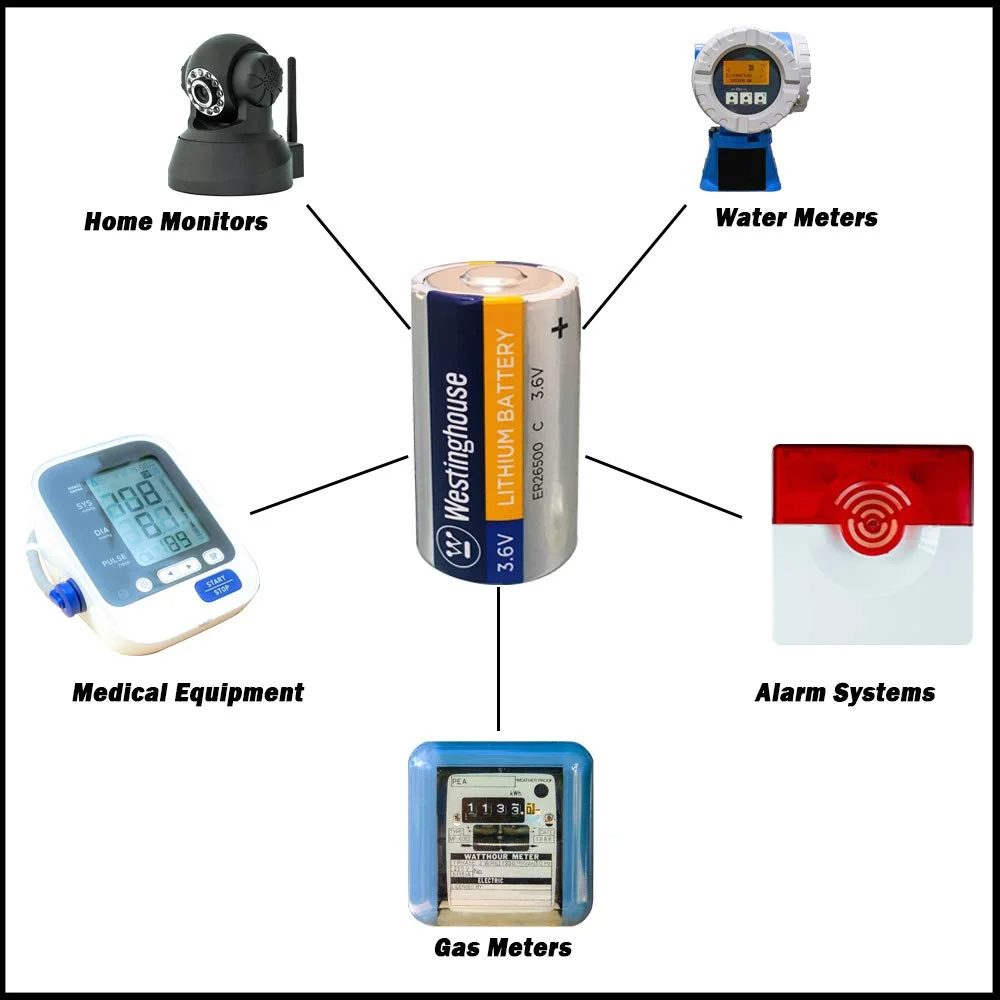

Applications
- Utility & Metering Systems.
- Industrial & IoT Devices.
- Security & Alarm Systems.
- Medical & Healthcare Equipment.
- Military & Aerospace.
- Backup Power & Specialty Uses.
Package Contents
- 1 x ER26500 Westinghouse C Lithium Battery 3.6V 9000mAh
