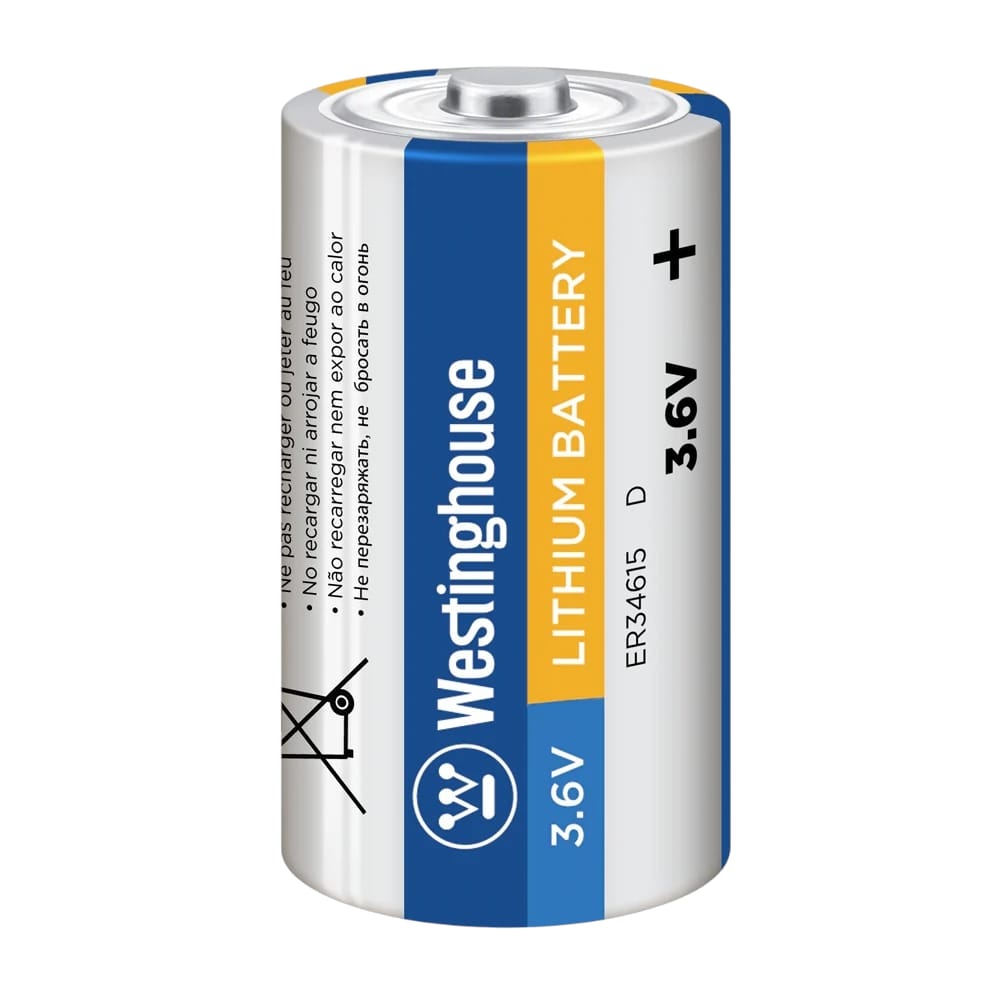

ER34615 Westinghouse D Lithium Battery 3.6V 19000mAh

ER34615 Westinghouse D Lithium  Battery 3.6V 19000mAh

The ER34615 Westinghouse D Lithium Battery 3.6V 19000mAh is a high-performance primary (non-rechargeable) battery designed for long-lasting and reliable power, high-energy-density, long-lasting, and reliable power source designed for industrial and professional applications. With a voltage of 3.6V and a massive 19000mAh capacity, this lithium-thionyl chloride (Li-SOCl₂) battery is well-suited for low-drain, long-term applications. It is known for its stable voltage output, low self-discharge rate, and wide operating temperature range, making it ideal for remote monitoring devices, metering systems, and backup power applications.

Features:

• Offers up to 5 times the energy density of alkaline batteries, providing long-lasting performance.
• Long Shelf Life where Has a low self-discharge rate (<1% per year), allowing storage for 10+ years without significant capacity loss.
• Functions efficiently in extreme temperatures, from -55°C to +85°C, making it ideal for harsh environments.
• Provides consistent 3.6V power throughout its lifespan, ensuring reliable performance for sensitive electronics.
• Best suited for smart meters, industrial sensors, GPS tracking devices, medical equipment, security systems, and IoT applications.
• Built with hermetic sealing and high safety standards to prevent leaks and malfunctions.

Specifications:

• Brand: Westinghouse
• Model: ER34615
• Rechargeable: Non-Rechargeable
• Battery Type: Lithium-Thionyl Chloride (Li-SOCl₂)
• Form Factor: D-Size
• Terminal Type: Standard flat contacts
• Voltage: 3.6V
• Capacity: 19,000mAh (19Ah)
• Max Continuous Discharge Current: 230mA
• Max Pulse Discharge Current: 400mA
• Self-Discharge Rate: <1% per year
• Operating Temperature Range: -55°C to +85°C
• Shelf Life: 10+ years
• Dimensions:
  • Diameter: 34.2mm
  • Height: 61.5mm
• Weight(Approx.):~100g

Applications:

• Utility & Metering Systems.
• Industrial & IoT Devices.
• Security & Alarm Systems.
• Medical & Healthcare Equipment.
• Military & Aerospace.
• Backup Power & Specialty Uses.
