ESP32-C3 Super Mini Development Module
A compact development board featuring the ESP32-C3 chip, offering Wi-Fi 802.11b/g/n and Bluetooth 5 (LE) connectivity, ideal for IoT applications
550.00 EGP
Buy NowESP32-C3 Mini Development Board – Compact Wi-Fi & Bluetooth 5 for IoT Projects
Features:
- Compact Form Factor: Designed for space-constrained projects, facilitating easy integration into various applications.
- Wireless Connectivity: Supports Wi-Fi 802.11b/g/n and Bluetooth 5 (LE) for versatile wireless communication.
- RISC-V Architecture: Built on a single-core RISC-V CPU, providing efficient processing capabilities for IoT tasks.
- GPIO Accessibility: Offers multiple GPIO pins for flexible interfacing with sensors and peripherals.
- Security Features: Includes secure boot and flash encryption to protect application code and data.
Specifications:
| Specification | Details |
|---|---|
| Chipset | ESP32-C3 |
| Processor | Single-core RISC-V CPU |
| Wireless Connectivity | Wi-Fi 802.11b/g/n, Bluetooth 5 (LE) |
| GPIO Pins | Multiple GPIOs with support for ADC, SPI, I2C, and touch functions |
| Operating Voltage | 3.3V DC |

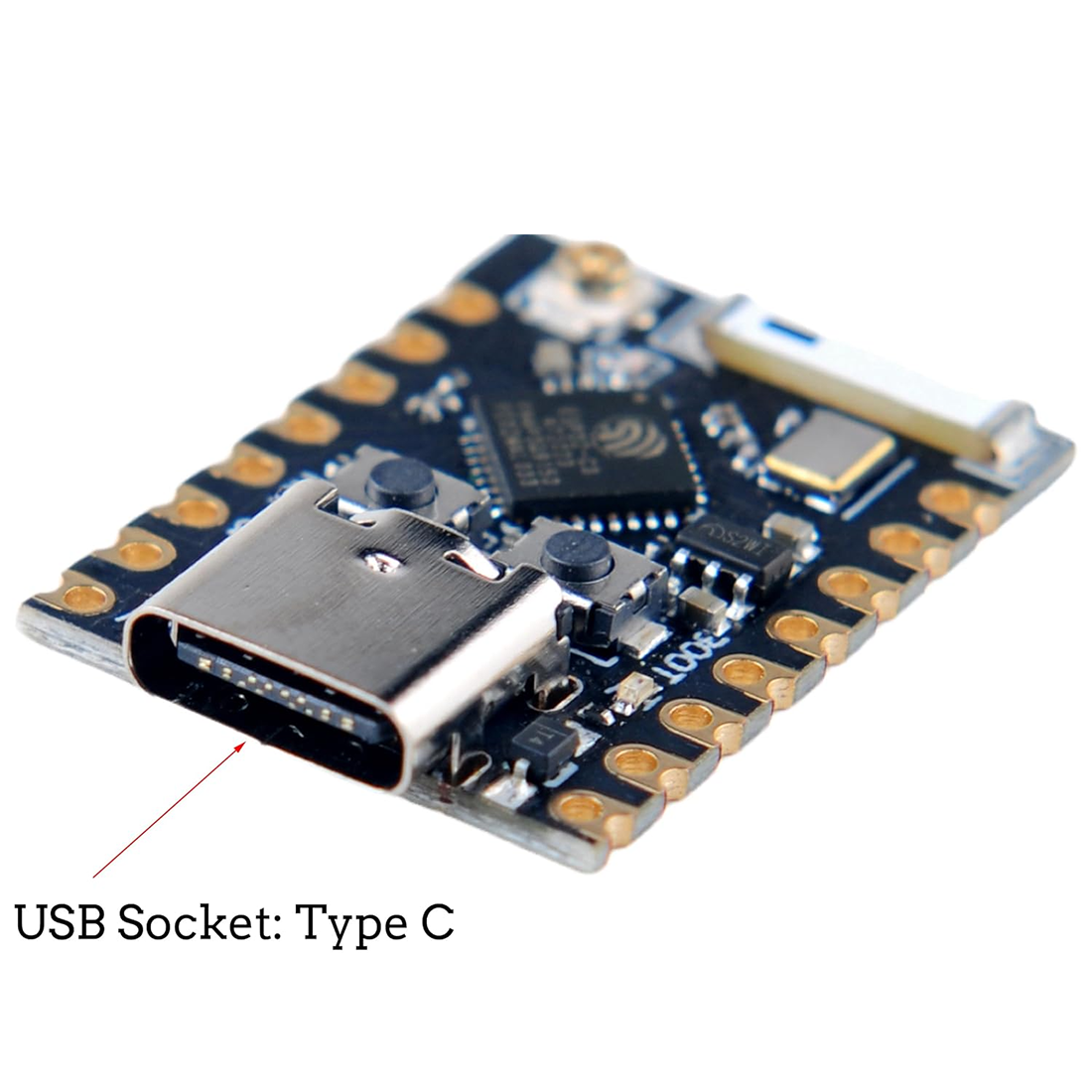

| Programming Interface | Supports programming via USB Type-C interface |
| Security Features | Secure boot, flash encryption |

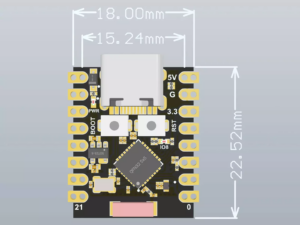

| Dimensions (L x W x H) | Approximately 22.5mm x 18mm x 3mm |
| Development Support | Compatible with ESP-IDF, Arduino IDE, and other development environments |
Applications:
- IoT Devices: Ideal for developing connected devices requiring reliable wireless communication.
- Wearable Technology: Suitable for compact wearables with Bluetooth connectivity.
- Home Automation: Enables smart home applications through Wi-Fi and Bluetooth integration.
- Sensor Networks: Facilitates deployment in sensor networks with its GPIO and wireless capabilities.
- Prototyping: Perfect for rapid prototyping of IoT solutions due to its small size and versatile features

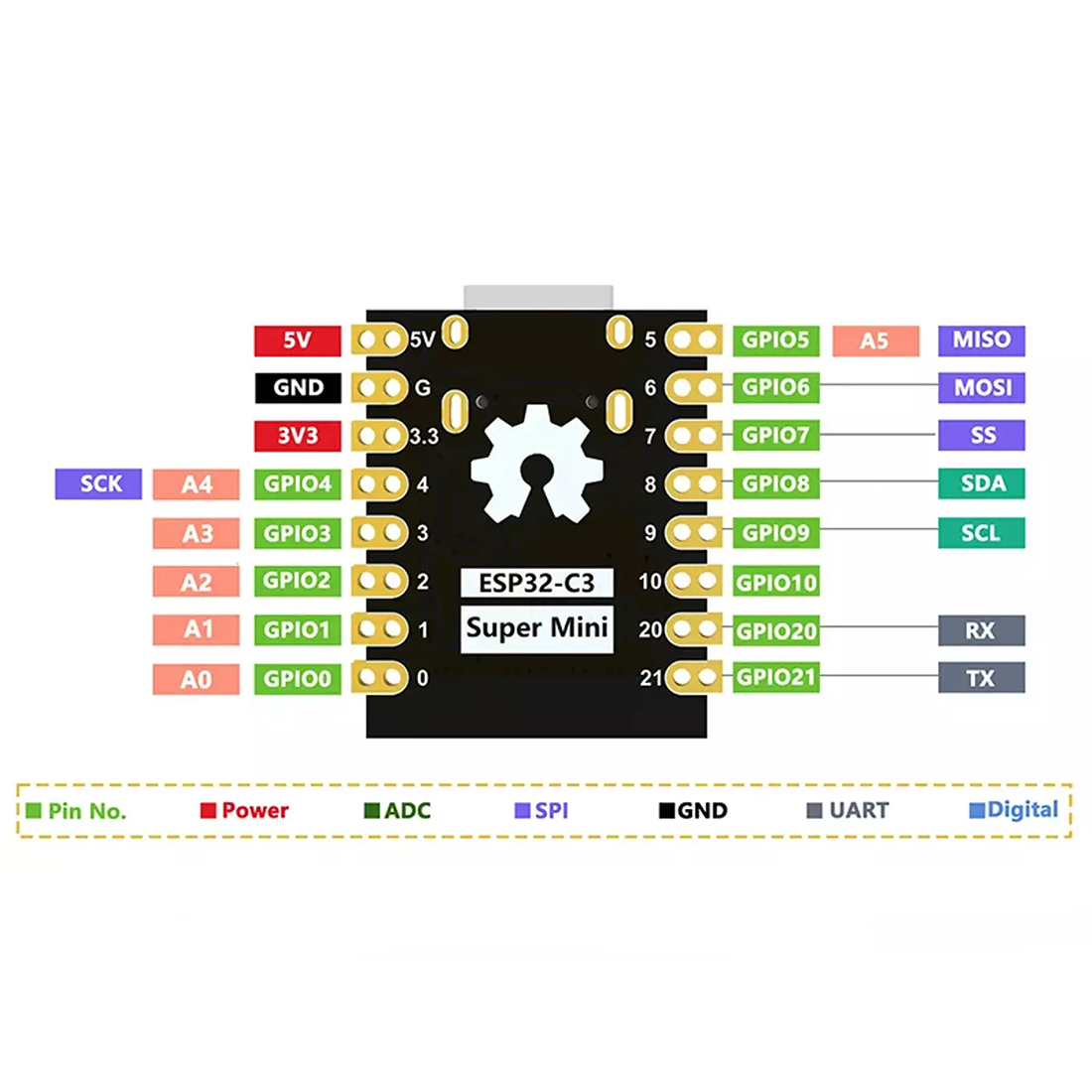

ESP32-C3 Pin Configuration:
| Pin | Name | Function |
|---|---|---|
| GPIO0 | GPIO0 | General-purpose I/O, boot mode selection |
| GPIO1 | U0_TXD | UART0 Transmit (TX), can be used as a general-purpose I/O |
| GPIO2 | GPIO2 | General-purpose I/O, supports ADC, SPI, I2C, touch functionality |
| GPIO3 | U0_RXD | UART0 Receive (RX), can be used as a general-purpose I/O |
| GPIO4 | GPIO4 | General-purpose I/O, supports ADC, SPI, I2C, touch functionality |
| GPIO5 | GPIO5 | General-purpose I/O, supports ADC, SPI, I2C, touch functionality |
| GPIO6 | SCK | SPI Clock (SCK) |
| GPIO7 | MISO | SPI Master In Slave Out (MISO) |
| GPIO8 | MOSI | SPI Master Out Slave In (MOSI) |
| GPIO9 | CS | SPI Chip Select (CS) |
| GPIO10 | RTC_GPIO10 | RTC I/O, can be used for input/output |
| GPIO11 | RTC_GPIO11 | RTC I/O, can be used for input/output |
| GPIO12 | RTC_GPIO12 | RTC I/O, can be used for input/output |
| GPIO13 | GPIO13 | General-purpose I/O, supports PWM, SPI, ADC |
| GPIO14 | GPIO14 | General-purpose I/O, supports PWM, SPI, ADC |
| GPIO15 | GPIO15 | General-purpose I/O, supports PWM, SPI, ADC |
| GPIO16 | GPIO16 | General-purpose I/O, supports PWM, ADC, SPI |
| GPIO17 | GPIO17 | General-purpose I/O, supports PWM, ADC, SPI, I2C |
| GPIO18 | GPIO18 | General-purpose I/O, supports PWM, ADC, SPI |
| GPIO19 | GPIO19 | General-purpose I/O, supports PWM, ADC, SPI |
| GPIO20 | GPIO20 | General-purpose I/O, supports PWM, ADC, SPI |
| GPIO21 | GPIO21 | General-purpose I/O, supports I2C |
| GPIO22 | GPIO22 | General-purpose I/O, supports I2C, UART |
| GPIO23 | GPIO23 | General-purpose I/O, supports PWM, SPI, I2C |
| GPIO24 | GPIO24 | General-purpose I/O, supports PWM, ADC |
| GPIO25 | GPIO25 | General-purpose I/O, supports PWM, ADC |
| GPIO26 | GPIO26 | General-purpose I/O, supports PWM, ADC |
| GPIO27 | GPIO27 | General-purpose I/O, supports PWM, ADC |
| GPIO28 | GPIO28 | General-purpose I/O, supports PWM, ADC |
| GPIO29 | GPIO29 | General-purpose I/O, supports PWM, ADC |
| GPIO30 | GPIO30 | General-purpose I/O, supports PWM, ADC |
| GPIO31 | GPIO31 | General-purpose I/O, supports PWM, ADC |
Other Important Pins:
- 3V3 (3.3V): Provides 3.3V output for powering the module and peripherals.
- GND: Ground pin.
- EN (Enable): Used to enable or disable the ESP32-C3 chip.
- RST (Reset): Reset pin for the module.
