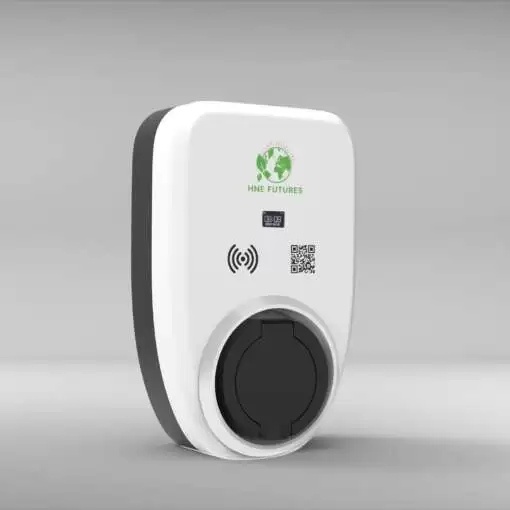

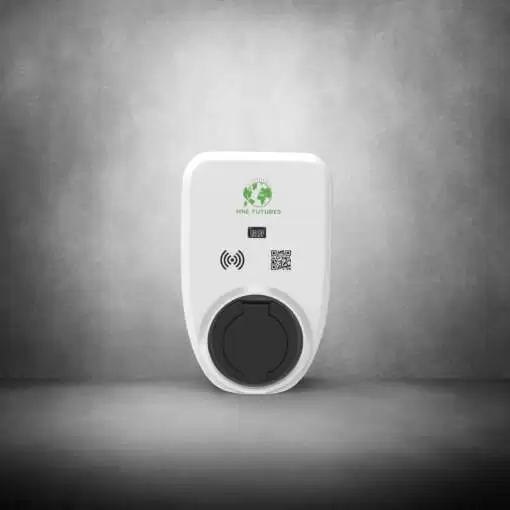

Model X
Our new Model X charger is out with a slick new design with a WIFI connection, RFID, and a very competitive price. Charge your EV car in style. With a very slim frame and a weight of only 1.5 Kg it will be mounted to your wall in no to time.
User Interface
| Connectivity | WiFi / RFID. |
| User Identification | HNE Software App. |
| User Interface | HNE Application. |
| Information Display | HNE Application, and OLED Screen. |
| Color | White / Black |
Electrical Specifications
| Charging Power | 7.4 kW | 11 kW | 22 kW |
| Rated Voltage | 220-240 V | 380-400 V | 380-400 V |
| Rated Current | 32 A (1Ph) | 16 A (3Ph) | 32 A (3Ph) |
| Rated Frequency | 50/60 Hz | 50/60 Hz | 50/60 Hz |
| GFCI | 20 mA | – | – |
| Connector Type | Type 2 Socket | ||
| Protection Rating | IP 54 | ||
| RCD | External RCD Required | ||

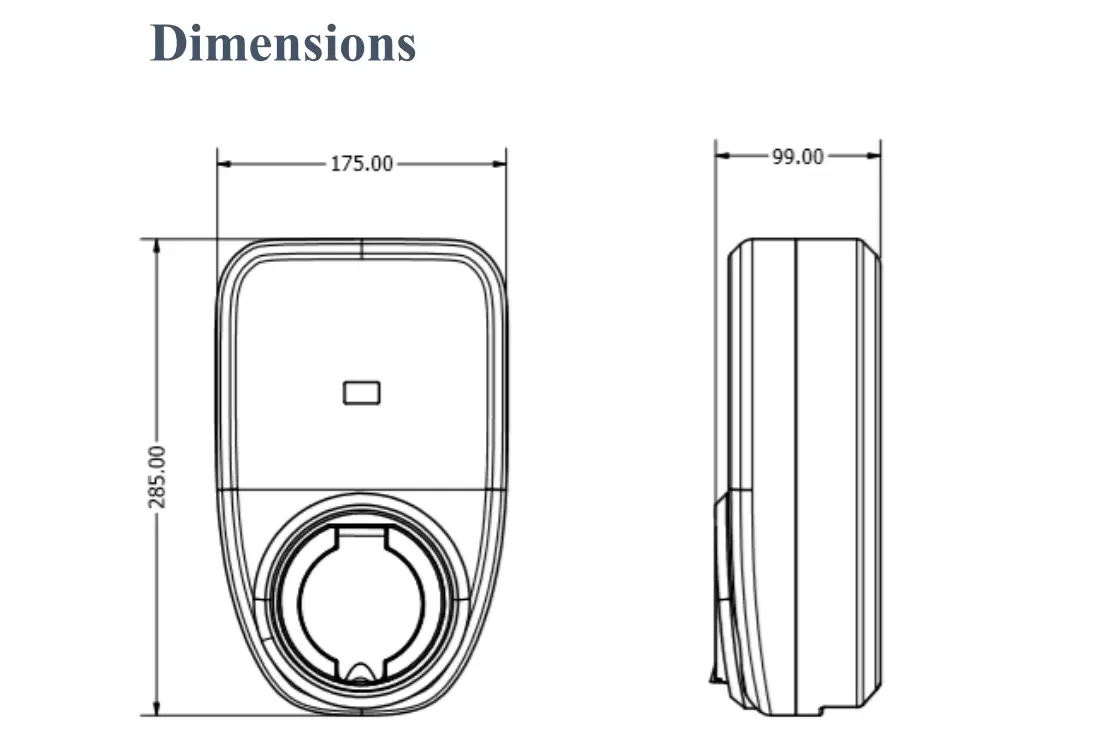

| Dimensions | 285x175x99mm | ||
| Weight | 1.5 kg | ||
