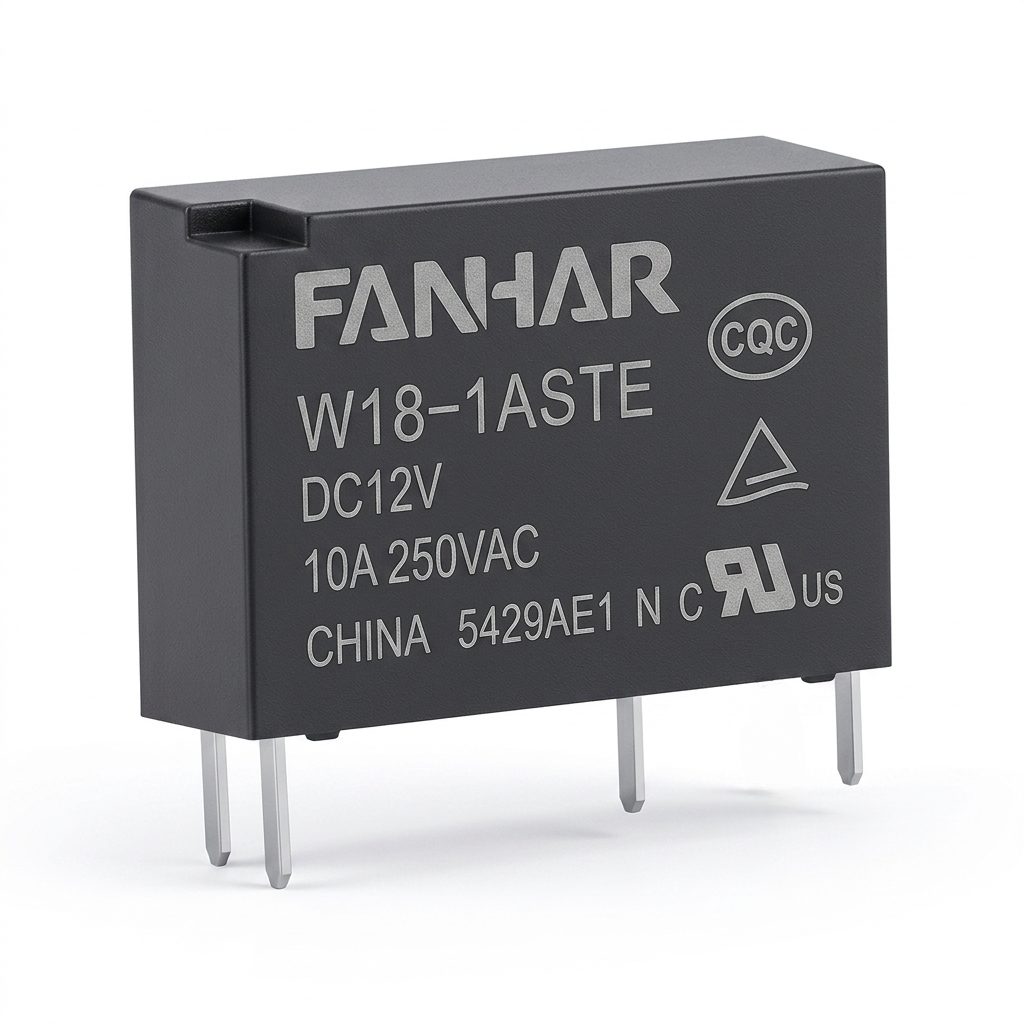

FANHAR Power Relay W18-1ASTE-DC12V 10A 4 Pin
The FANHAR W18-1ASTE-DC12V is a compact and highly sensitive power relay designed for a wide range of applications, particularly in modern home appliances and smart home devices. Its slim 7mm profile makes it an excellent choice for high-density PCB installations. This relay offers a robust 10A switching capability and is built to meet international safety standards, including IEC60335-1 and IEC60730-1. With a low coil power consumption of just 200mW and a Class F UL insulation system, the W18 relay ensures both energy efficiency and reliable performance.
Features
● 10A switching capability
● The thickness of the product is 7mm,suitable for high density installation
● Provide the product meet the standards of IEC60335-1 , IEC60730-1
● Products with operating temperature of 105℃ are available
● High sensitive type,coil power is 200mW
● UL insulation system:Class F
● Environment-friendly product(RoHS compliant)
● Outline Dimensions:(20.5×7.2×14.7)mm
Applications
- Home Appliances
- Smart Home Devices
- Electric Power Meters
