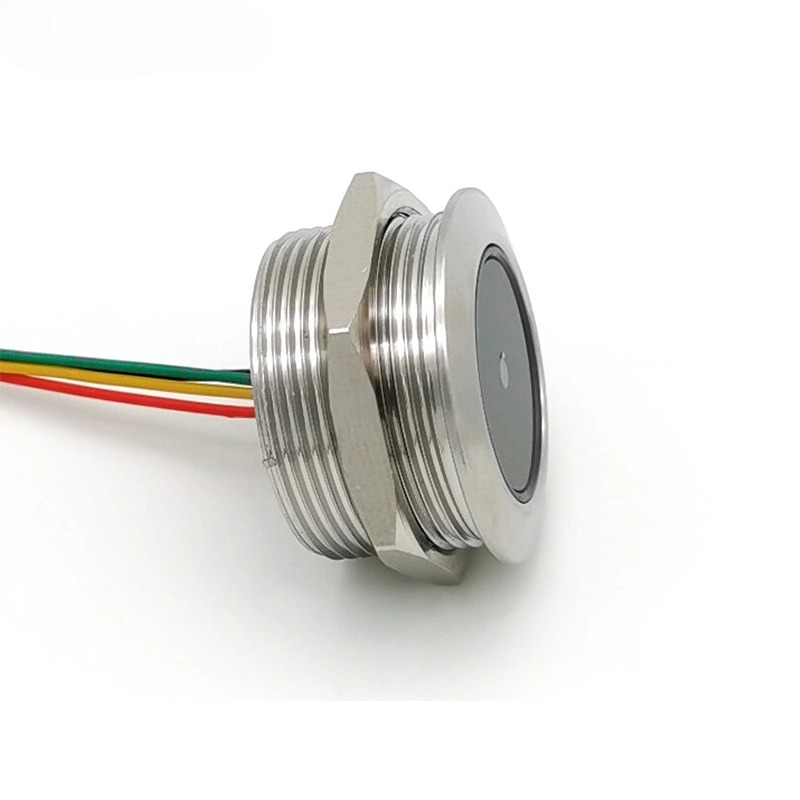

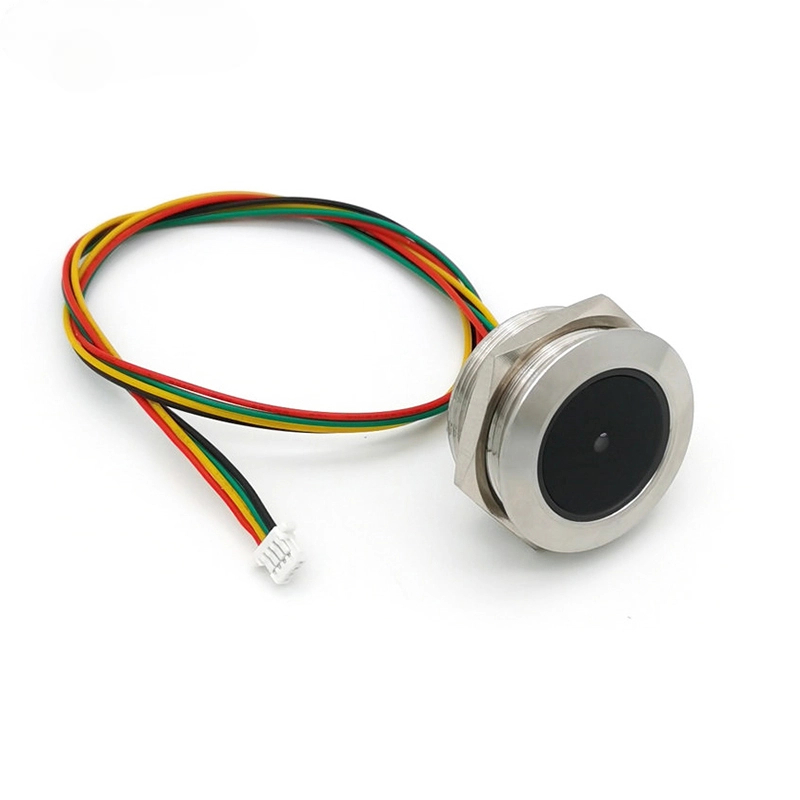

GROW GM60 1D/2D Bar Code QR Code Barcode Scanner Reader Module with Ring Indicator Light
The GROW GM60 1D/2D Bar Code QR Code Barcode Scanner Reader Module with Ring Indicator Light is a compact, high-performance barcode scanning module designed for embedded identification, automation, and self-service applications. Equipped with an advanced CMOS image sensor and intelligent decoding algorithm, the module quickly and accurately reads a wide range of 1D and 2D barcodes, including printed and screen-displayed codes.
Features:
- Supports both 1D and 2D barcode decoding.
- High-performance CMOS image sensor.
- TTL UART serial communication interface.

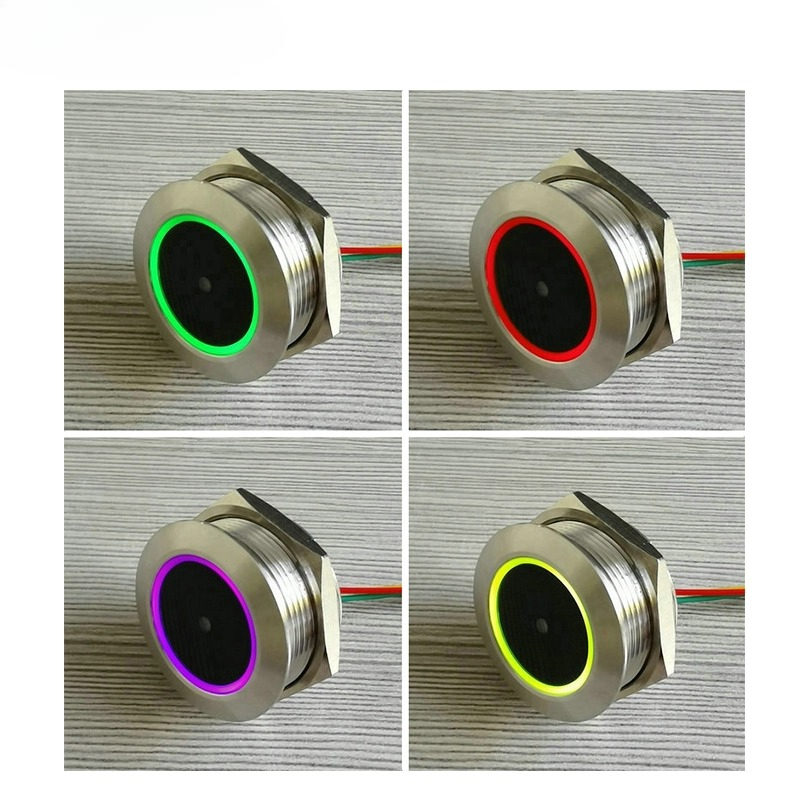

- Integrated RGB ring indicator light.
- Built-in buzzer for scan confirmation.
- Reads printed and digital screen barcodes.
- Multiple scanning modes.
- Fast and accurate barcode recognition.
Specifications:
|
Model
|
GM60
|
|
Type
|
Barcode Scanner
|
|
Decoding Ability
|
QR Code, Data Matrix, PDF417,EAN13,UPC,Code 39,Code 93,Code 128,UCC/EAN 128
|
|
Scan Mode
|
640*480
|
|
Interface
|
UART
|
|
Resolution
|
5mil
|
|
Serial Baud Rate(UART)
|
57600
|
|
Operating Voltage
|
3.3V
|
|
Operating Current
|
70mA
|
|
Contrast
|
≥25%
|
|
Weight
|
25g
|
|

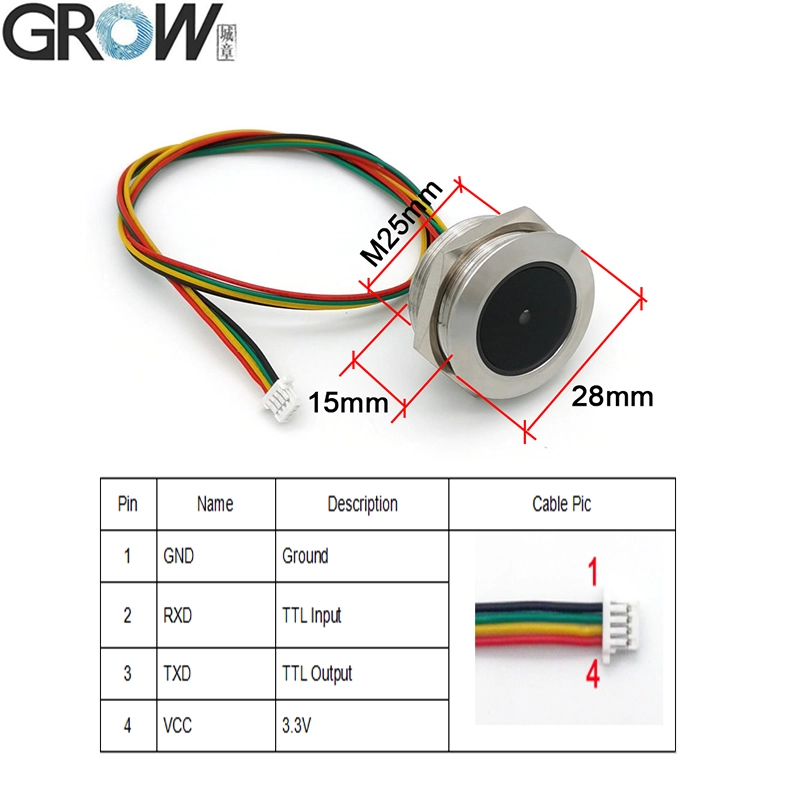

Size
|
External Diameter 28mm Internal Diameter 25mm
Height 15mm Thread M25
|
|
Scan Angle
|
Roll 360°, Pitch 55°, Yaw 55°
|
|
Viewing Angle
|
69°(Inclination), 56°(Elevation)
|
|
Light
|
Colorful indicator/green light flashing prompt reading success
|
|
Operating Temperature
|
-30 degrees to 70 degrees
|
|
Storage Temperature
|
-30 degrees to 85 degrees
|
|
Temperature Humidity
|
5% to 95% Relative humidity, Non-condensing
|
Applications:
- Point-of-sale (POS) terminals.
- Self-service kiosks.
- Access control systems.
- Ticket validation systems.
- Vending machines.
- Warehouse management.
- Inventory tracking.
- Logistics automation.
- Medical equipment.
- Industrial automation.
- Smart lockers.
- Embedded barcode recognition systems.
Package Include:
- 1x GROW GM60 1D/2D Bar Code QR Code Barcode Scanner Reader Module with Ring Indicator Light.
- 1x M25 Nut.
