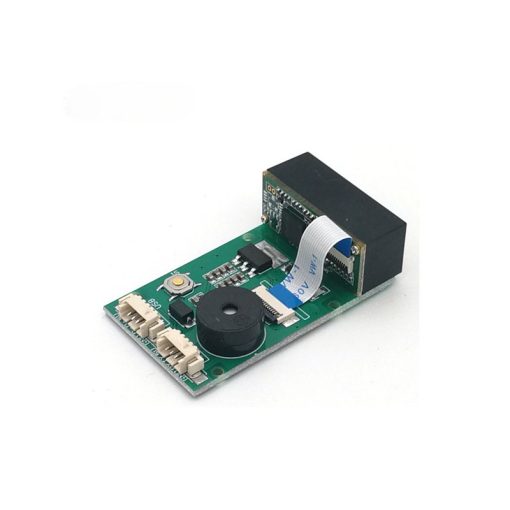

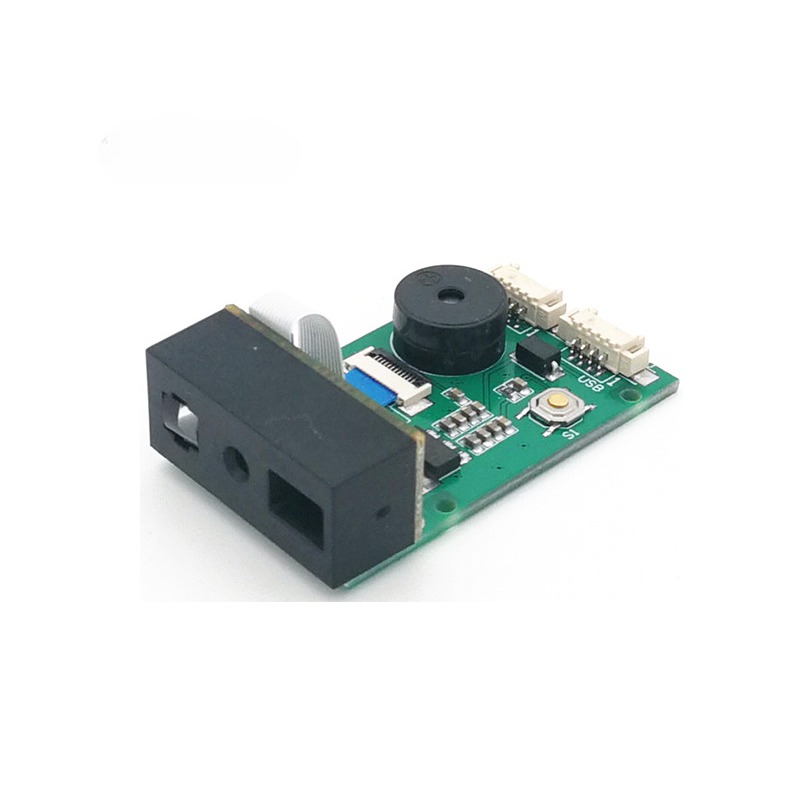

GROW GM67 1D 2D USB UART Bar Code Qr Code Scanner Module
The GROW GM67 1D 2D USB UART Bar Code QR Code Scanner Module is a compact, high-performance embedded barcode scanning module designed for fast and reliable decoding of both 1D and 2D barcodes. Utilizing an advanced CMOS image sensor and intelligent decoding technology, the module provides excellent reading performance for printed labels as well as digital barcodes displayed on LCD, OLED, and smartphone screens.
Features:
- USB wired barcode scanner to capture 1D, 2D code on labels, paper, mobile phone or computer.
- High-efficiency recognization and high upload speed for improving your working efficiency.
- With buzzer for reminding you that the scanning successfully or not.

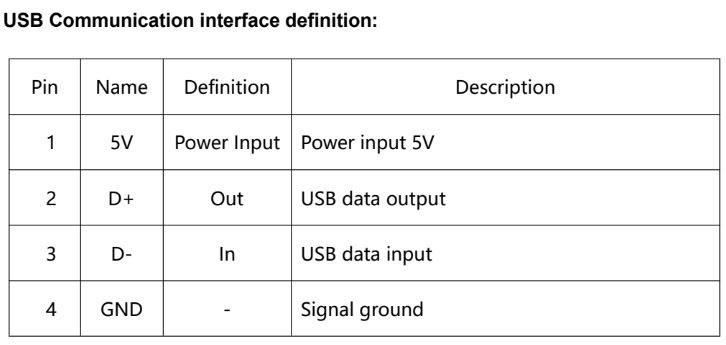

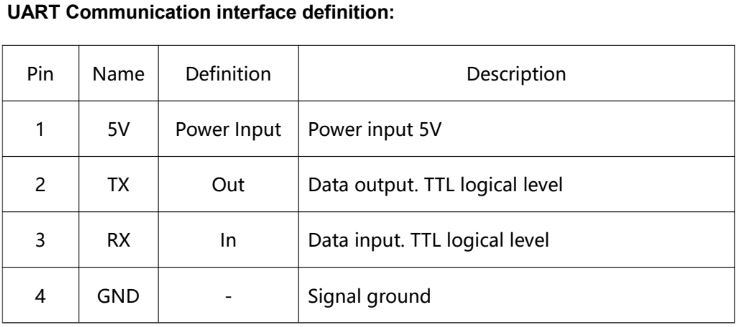

- Compatible with USB and UART interface.
- Over 180 configurable options
- Macro support replace a string in the bar code with another
- Programmable preamble postamble and termination strings
- Superior reading performance utilizing advanced decoding algorithms
Specifications:
|
Scanning Performance
|
Scan Mode
|
640*480 CMOS
|
||
|
Lighting
|
White LED
|
|||
|
Collimate
|
Red LED
|
|||
|
Read Code
Type
|
2D
|
QR Code, Data Matrix, PDF417,Aztec,Micro QR,Micro PDF417
|
||
|
1D
|
EAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128, Codabar,
|
|||
|
Interleaved 2 of 5, ITF-6,ITF-14,ISBN,ISSN, MSI-Plessey
|
||||
|
GS1 Databar ,Code 11,Industrial 25,
|
||||
|
Standard 25,Plessey, Matrix 2 of 5
|
||||
|
Accuracy of reading
|
≥5mil
|
|||
|
Depth of Field
|
EAN-13
|
60mm-220mm (13mil)
|
||
|
Code 39
|
40mm-90mm (5mil 10 byte)
|
|||
|
QR Code
|
30mm-220mm (20mil 16 byte)
|
|||
|
Data Marix
|
40mm-110mm (10mil 20 byte)
|
|||
|
PDF417
|
30mm-130mm (6.67mil 7 byte)
|
|||
|
Contrast
|
≥25%
|
|||
|
Scanning angle
|
Intersection angle 360°,Elevation ± 55°
Deflection angle ± 55°
|
|||
|
Viewing Angle
|
D:42° H:34° V:26°
|
|||
|
Mechanical/
Electrical Parameters
|
Interface
|
TTL-232 , USB (HID-KBW, Virtual serial port)
|
||
|

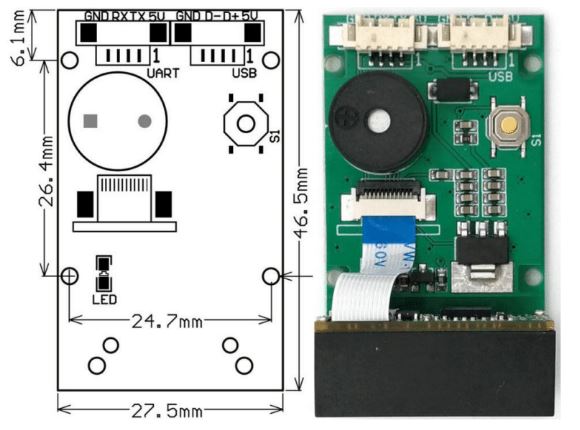

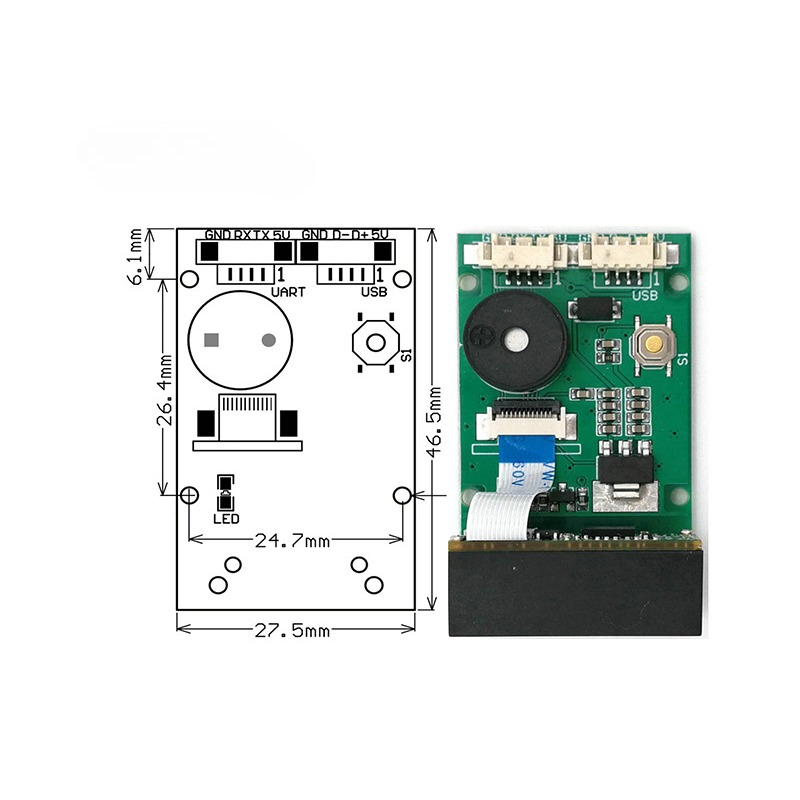

Dimension
|
27.5(W)*46.5(D)*14(H)mm
|
|||
|
Operating Voltage
|
DC 5 V
|
|||
|
Operating Current
|
180mA
|
|||
|
Standby Current
|
USB:25mA; TTL:10mA
|
|||
|
Environmental Parameters
|
Operating Temperature
|
-20℃~+50℃
|
||
|
Storage Temperature
|
-40℃~+70℃
|
|||
|
Operating Humidity
|
5%~95%（Non-Condensing）
|
|||
|
Environmental Light
|
0~100000LUX
|
|||
Configuration:
Applications:
- Point-of-sale (POS) terminals.
- Self-service kiosks.
- Vending machines.
- Ticket verification systems.
- Access control equipment.
- Medical instruments.
- Logistics and warehouse management.
- Industrial automation.
- Embedded electronic devices.
- Inventory management systems.
- Smart lockers.
- Payment terminals.

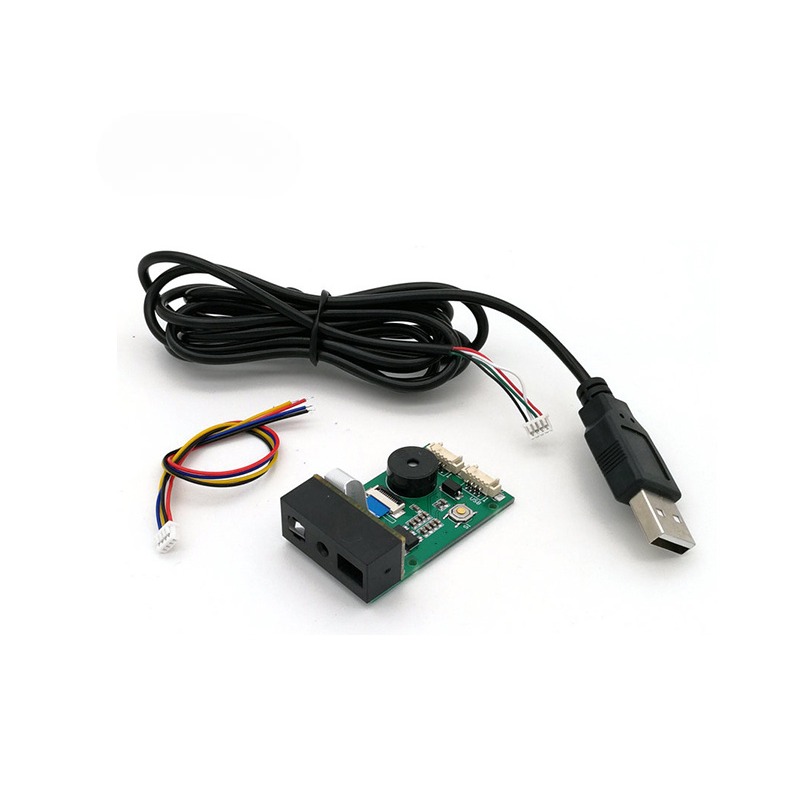

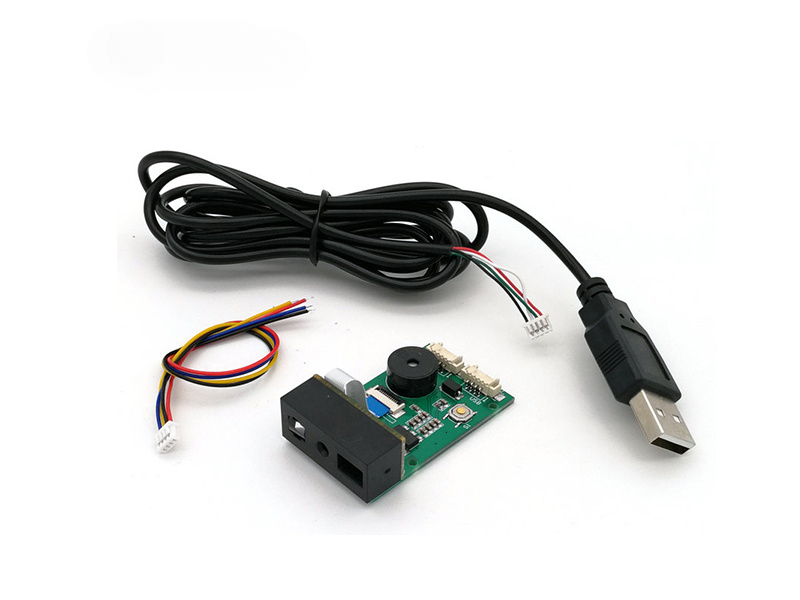

Package Include:
- 1x GROW GM67 1D/2D Barcode Scanner Module.
- 1x USB Connection Cable.
- 1x TTL UART Interface Cable.
