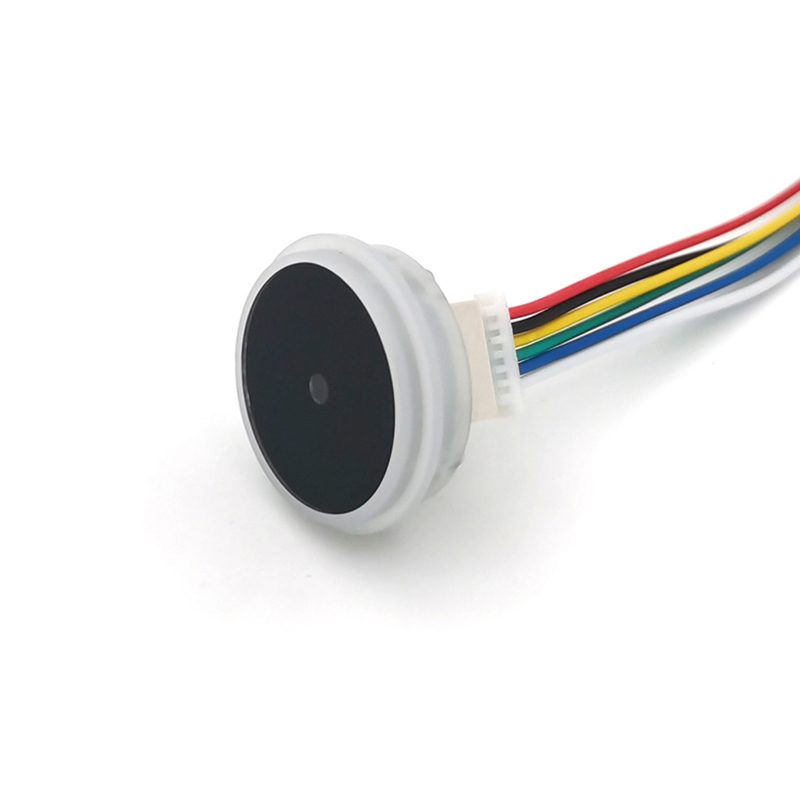

GROW GM861S Barcode Scanner 3.3V 70mA Module
The GROW GM861S Barcode Scanner Module is a miniature high-performance barcode scanning engine capable of reading both 1D and 2D barcodes with fast and accurate decoding. Equipped with a 640 × 480 CMOS image sensor, it supports popular barcode formats including QR Code, Data Matrix, PDF417, Code128, EAN, UPC, Code39, and many others. Its compact size and lightweight design make it ideal for integration into handheld devices, vending machines, self-service kiosks, access control systems, and embedded industrial equipment.
The module operates from a 3.3V supply and communicates through TTL-UART or USB, making it easy to interface with microcontrollers, single-board computers, and embedded controllers. With a fast startup time, wide scan angle, and reliable decoding performance, the GM861S provides an excellent solution for compact barcode scanning applications where space, power consumption, and performance are important.
Features:
- Supports both 1D and 2D barcode decoding.
- High-performance CMOS image sensor.
- Compact and lightweight module.
- Fast barcode recognition.
- Wide scan angle for flexible reading.
- TTL-UART and USB communication interfaces.
- Green LED successful-read indicator.
- Low power consumption.
- Easy integration into embedded systems.
- Plug-and-play USB operation.
- Suitable for fixed-mount and embedded applications.
- Supports multiple international barcode standards.
Specifications:
| Specification | Value |
|---|---|
| Image Sensor | CMOS |
| Scan Resolution | 640 × 480 Pixels |
| LED Indicator | White Light (Power On), Green Light (Read Successful) |
| LED Fill Light | White Light |
| Supported 1D Barcodes | EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-14, ITF-6, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 39, Code 11, MSI-Plessey, GS1 Composite, GS1 DataBar (RSS) |
| Supported 2D Barcodes | QR Code, Data Matrix, PDF417, Micro QR, Micro PDF417, Aztec |
| Reading Distance | 5–30 cm |
| Minimum Print Contrast | >25% |
| Scan Angle | Roll: 360°, Pitch: 65°, Yaw: 65° |
| Viewing Angle | Horizontal: 67°, Vertical: 53° |
| Reading Accuracy | ≥10 mil |
| Interface | TTL-232, USB |

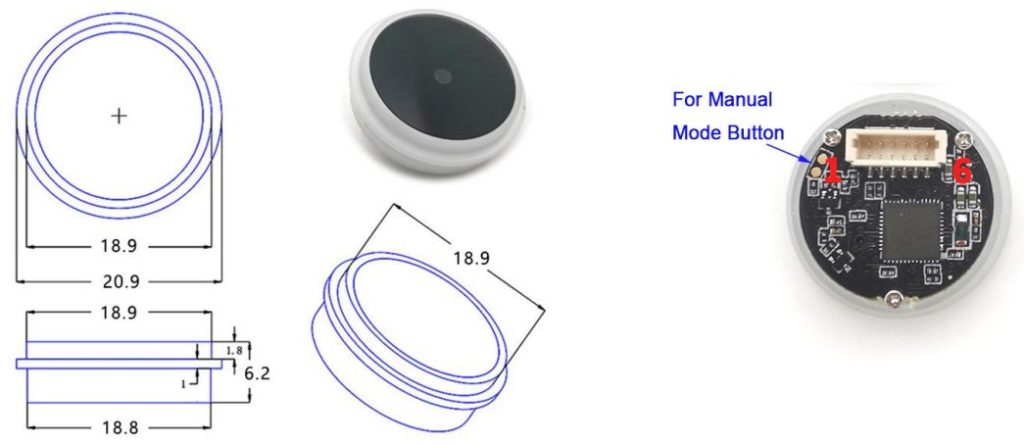

| Dimensions | Ø20.9 × 6.2 mm |
| Weight | 2 g |
| Prompt Mode | LED Indicator |
| Operating Voltage | 3.3V DC |
| Operating Current | 70 mA (Max.) |
| Standby Current | ≤6 mA |
| Startup Time | ≤250 ms |

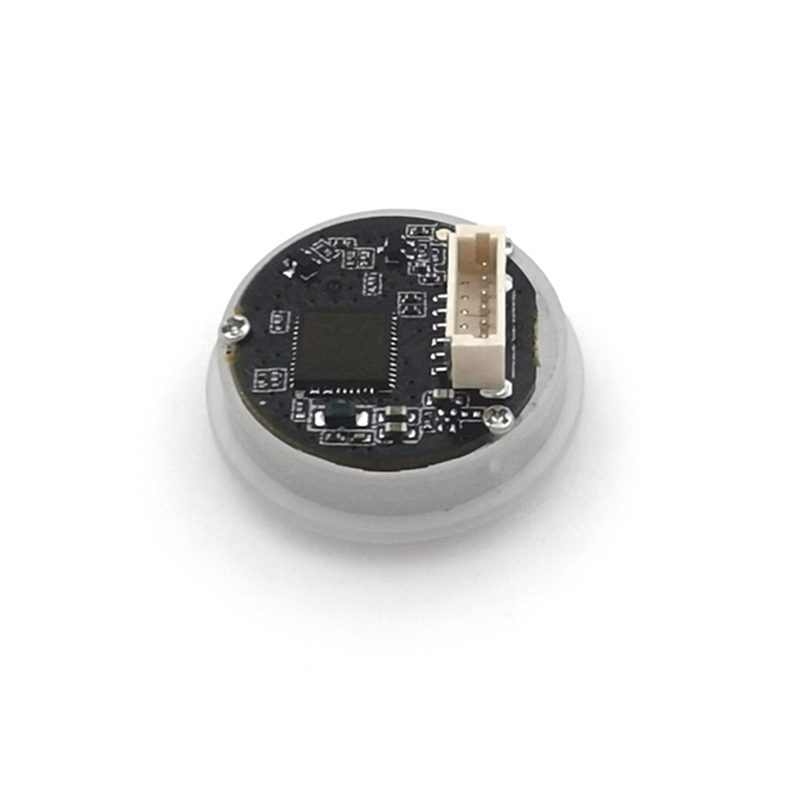

Pinout:
| No. | Definition | Instruction |
|---|---|---|
| 1 | D+ | USB data output |
| 2 | D- | USB data input |
| 3 | GND | Signal ground |
| 4 | RXD | Serial port receiver signal (TTL Level) |
| 5 | TXD | Serial port send signal (TTL Level) |
| 6 | VCC | Power input 3.3V |

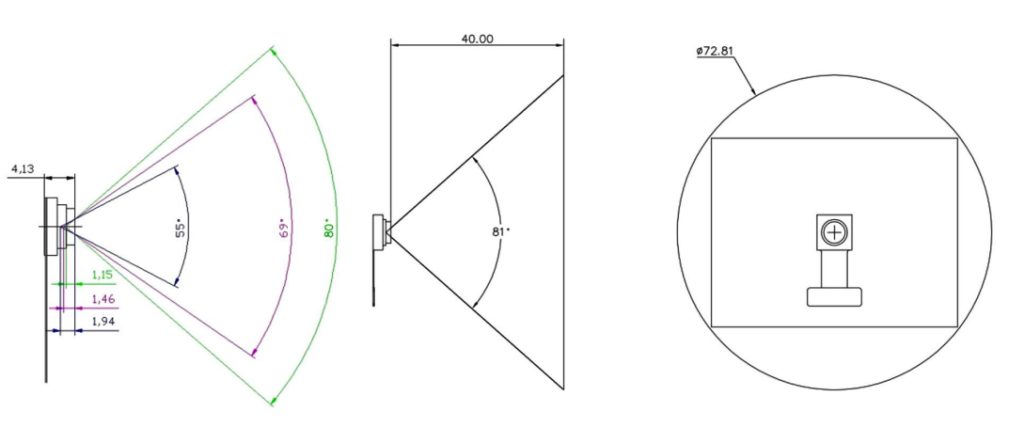

Scan Area:
Applications:
- Smart door locks.
- Access control systems.
- Time attendance terminals.
- Electronic safes.
- Embedded authentication devices.
- IoT security systems.
- Industrial control equipment.
- Security kiosks.
- Home automation.
- User identification systems.
Package Includes:
- 1 × GROW GM861S Fingerprint Sensor 3.3V 70mA Module.
