Features:
- The purpose of the extender is to achieve long-distance signal transmission with low- cost wires.
- Audio format support: DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
- Extend the transmission distance and improve transmission signal
- Signal transmission :cat5e or cat-6(recommended) cables up to 100 meters instead of HDMI cables are connected between TX and RX Extender
- Compliant with HDMI2.0, HDCP2.2 and DVI 1.0
- Support video format up to 4k 2k@60Hz with 24bit RGB/YcbCR 4:4:4/YCBCR4:4:4,and up to 4k2k@60Hz with 12bit YCBCR 4:4:4
- Support 3D frame sequential video format up to 1080p@60
- Support EDID Switch
Specifications:
- Length of CAT5e/CAT6 cable between Rx and TX: Up to 100 meters
- HDMI Input : up to 4K30Hz
- HDMI Output : up to 4K30Hz
- Max bandwidth : 340MHz
- Max baud rate : 3.4x3Gbps
- Input video signal : 0.5~1.5Volts p-p
- Output DDC signal : 5Volts p-p (TTL)
- Input HDMI cable distance : ≤10m AWG26 HDMI standard cable
- Output HDMI cable distance : ≤10m AWG26 HDMI standard cable
- Power adapter format :
- Input: AC (50HZ, 60HZ) 100V-240V.
- Output: DC 5V/1A
- Operating Temperature range : (-15 to +55℃)
- Operating Humidity range : 5 to 90%RH (No Condensation)
- Dimension approx. (L x W x H) : 81x47x22 (mm)
- Color : Silver
Installation and Precautions:
- To avoid electric shock, product damage and to protect your safety , please notice the following:
- Please slowly plug or unplug signal cables and do not often plug , unplug , or shake them.
- The equipment should not be placed under the sun , rain and damp or unventilated environment.
- Liquid items should not be placed on the equipment.
- Do not install the equipment near heat sources such as fire , power , or other amplifiers that produce heat.
- Do not insert the metal or other objects to the equipment in addition to connecting cables to ports.
- Do not demolish the equipment by yourself ; it should be maintained by professional maintenance staff.

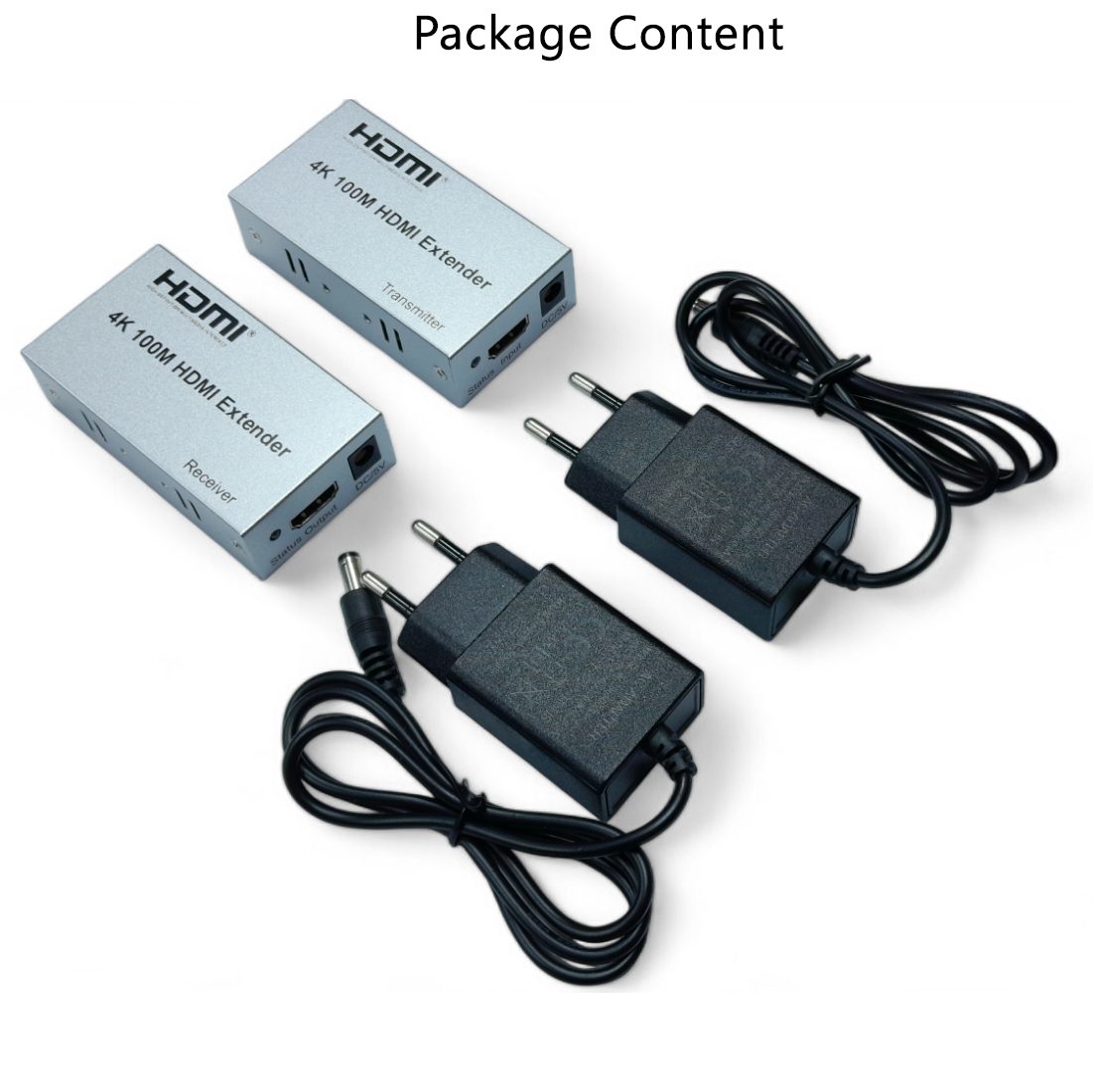

Package included:
- 1 x 4K 100M HDMI Transmitter
- 1 x 4K 100M HDMI Receiver
- 2 x Power Adapter 5V/1A
- 1 x User Manual
