Features:

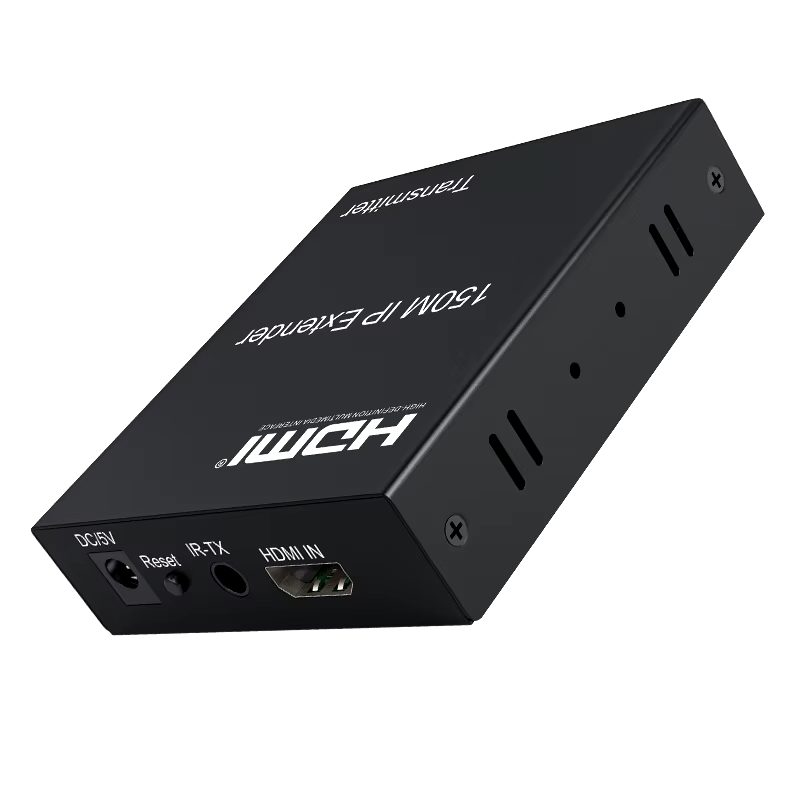

- 150M HDMI IP Extender is based on TCP/IP standard.
- It transmits your HD display with the high resolution up to 150 meters away from your DVD or computer source by using one CAT5e/6 cable.
- It’s convenient to transmit HDMI audio and video source by point-to-point mode, point-to-multipoint, multipoint-to -multipoint mode and cascade connection mode .
- Support HDCP1.4

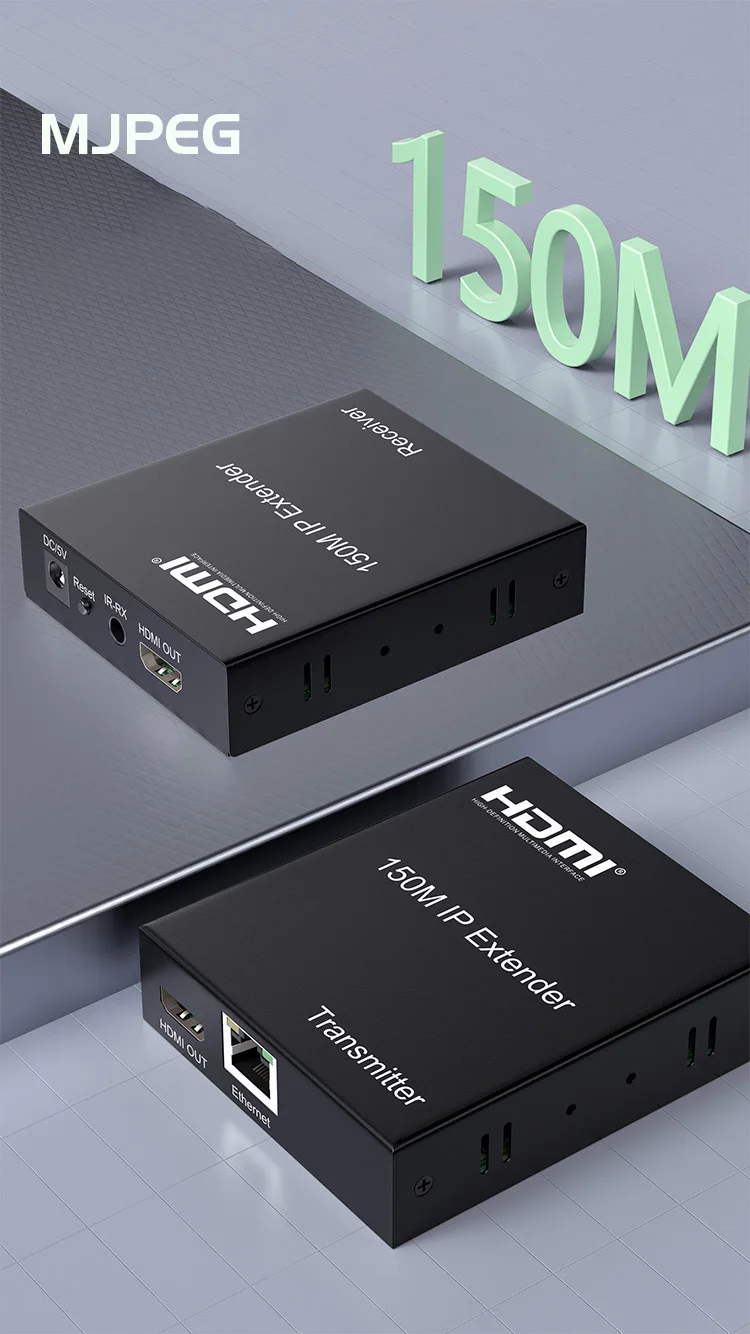

- Decoding Mode MJPEG

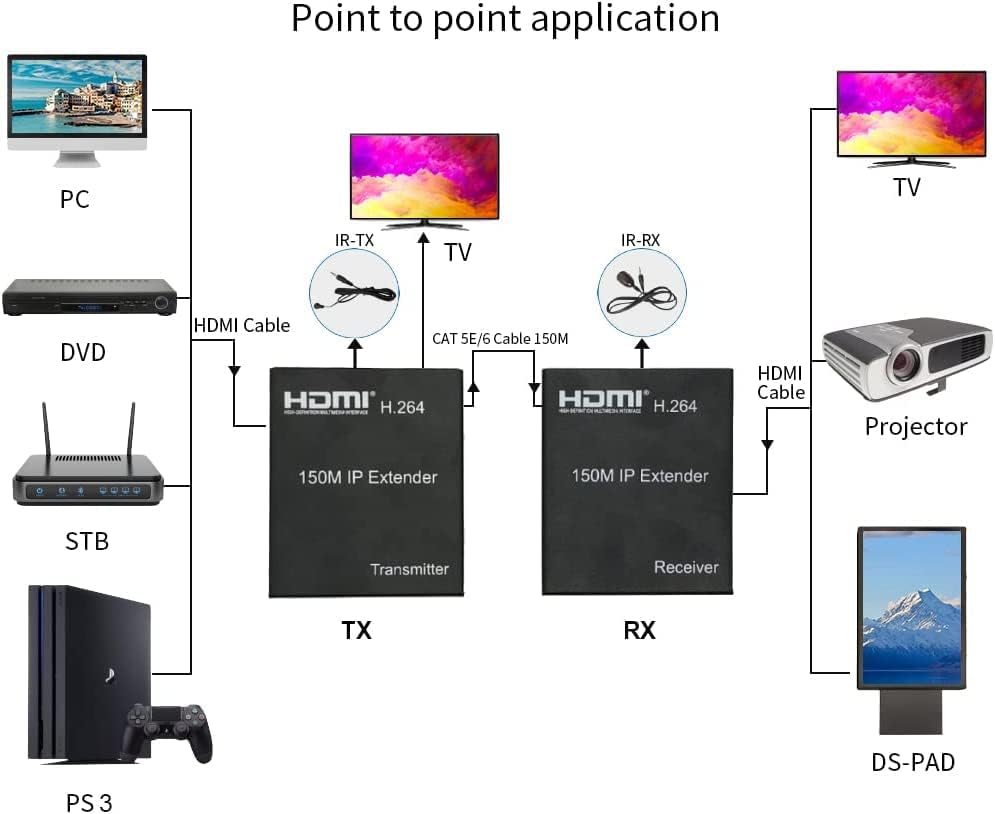

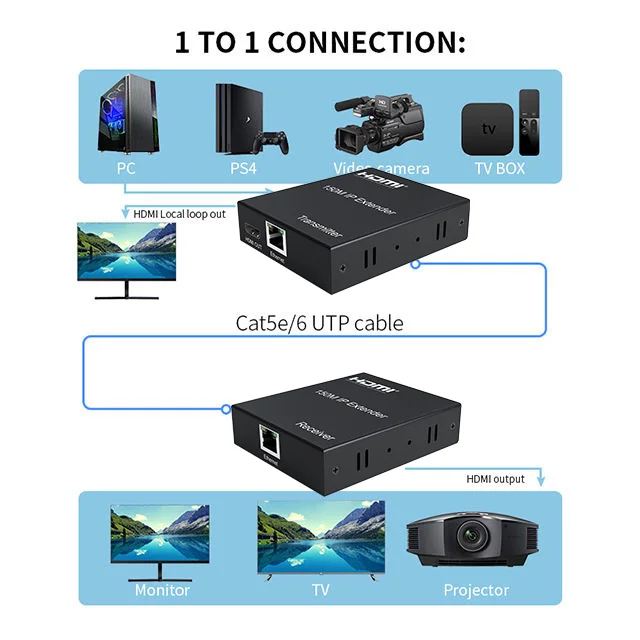

- Support point-to-point mode, point-to-multipoint mode, multipoint-to-multipoint mode and cascade connection mode;
- 802.3 Ethernet standard;
- The design of pure hardware, plug and play, no need for additional software.
- Brand New and is not compatible with the H.264 version mode. This is a new chip.
Specifications:
- Resolutions : 480P/720P/1080P
- Audio Sample rate: 32kHz,44.1kHz and 48kHz
- Power adapter format:
- Input AC (50HZ, 60HZ) 100V-240V
- output: DC5V/1A
- The max working current TX 500mA,RX 500mA
- Size(L-W-H): 93*78*22.7mm
- Weight 228g x 2
- Operating Temperature/Humidity 0℃-45℃/10%-80%RH(no condensation)
- Storage Temperature/Humidity -10℃-70℃/5%-90%RH(no condensation)

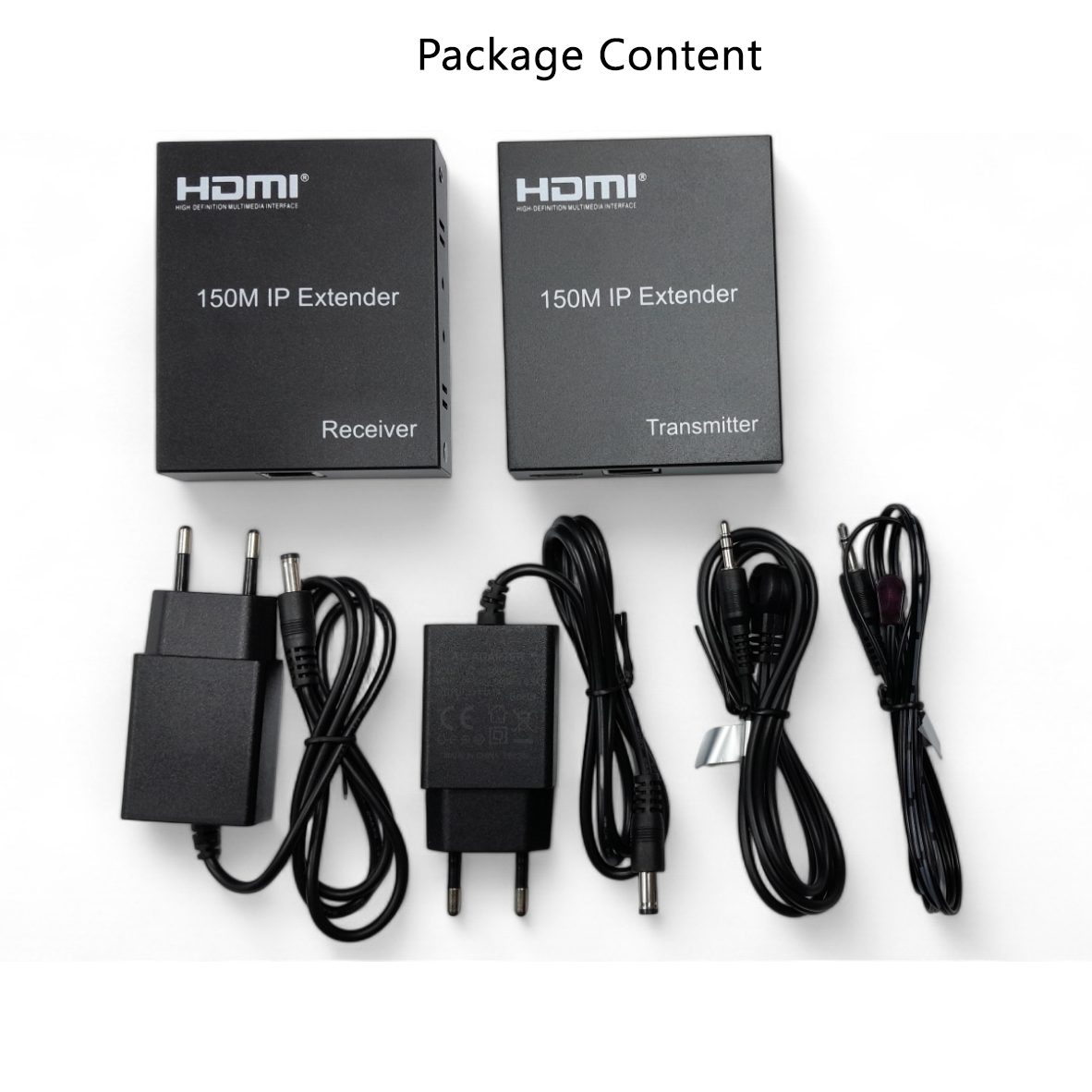

The Package contents :(for 1 TX and 1 RX)

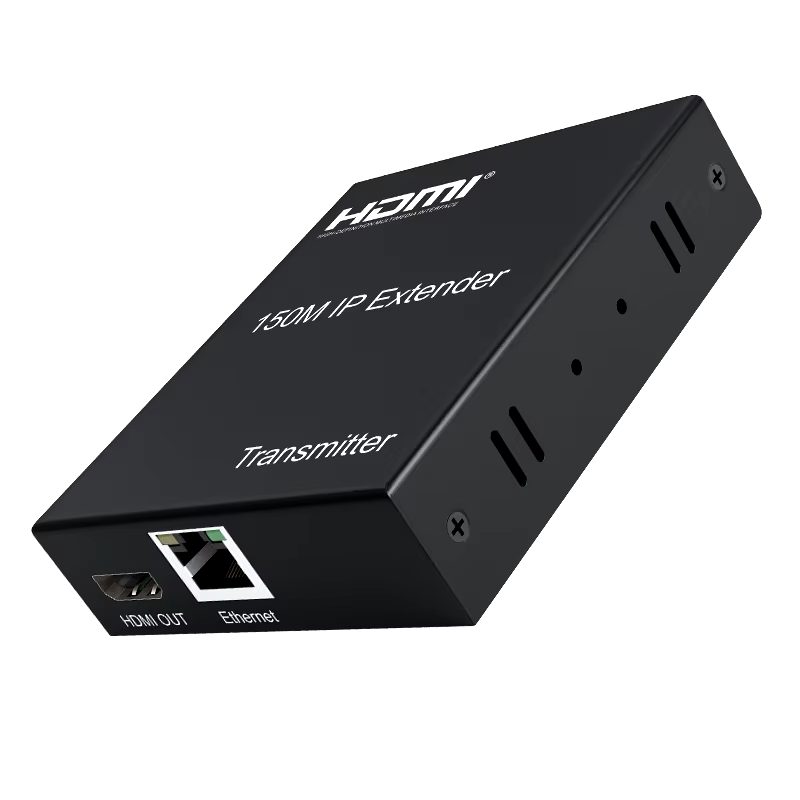

- Transmitter x 1

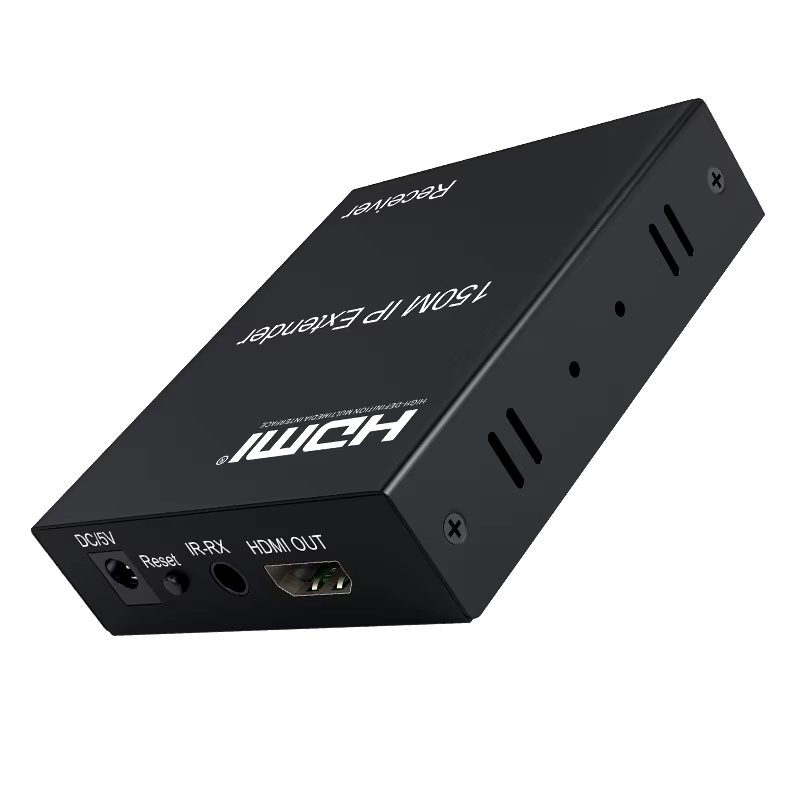

- Receiver x 1
- 5V Power adapter x 2
- IR cable x 1 Pair
- User’s Manual x 1
