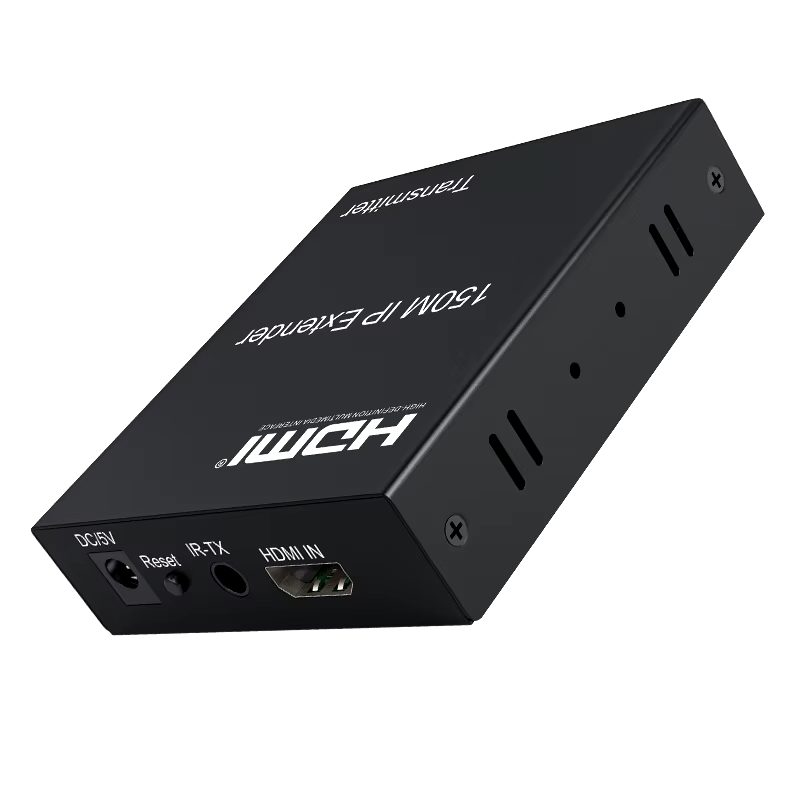

HDMI IP Extender 150M By Lan CAT5E/6

HDMI IP Extender 150M By Lan CAT5E/6

The HDMI IP Extender 150M By Lan CAT5E/6 is a high-performance solution for transmitting HDMI signals over long distances using standard CAT6 Ethernet cables. Capable of extending 1080p Full HD video and audio up to 150 meters, this extender is ideal for home theater systems, conference rooms, digital signage, and surveillance applications. Its robust design, support for point-to-point or point-to-multipoint configurations, and easy setup make it a versatile choice for professional and residential use.

Features:

• 150M HDMI IP Extender is based on TCP/IP standard.
• It transmits your HD display with the high resolution up to 150 meters away from your DVD or computer source by using one CAT5e/6 cable.
•  It’s convenient to transmit HDMI audio and video source by point-to-point mode, point-to-multipoint, multipoint-to -multipoint mode and cascade connection mode .
• Support HDCP1.4

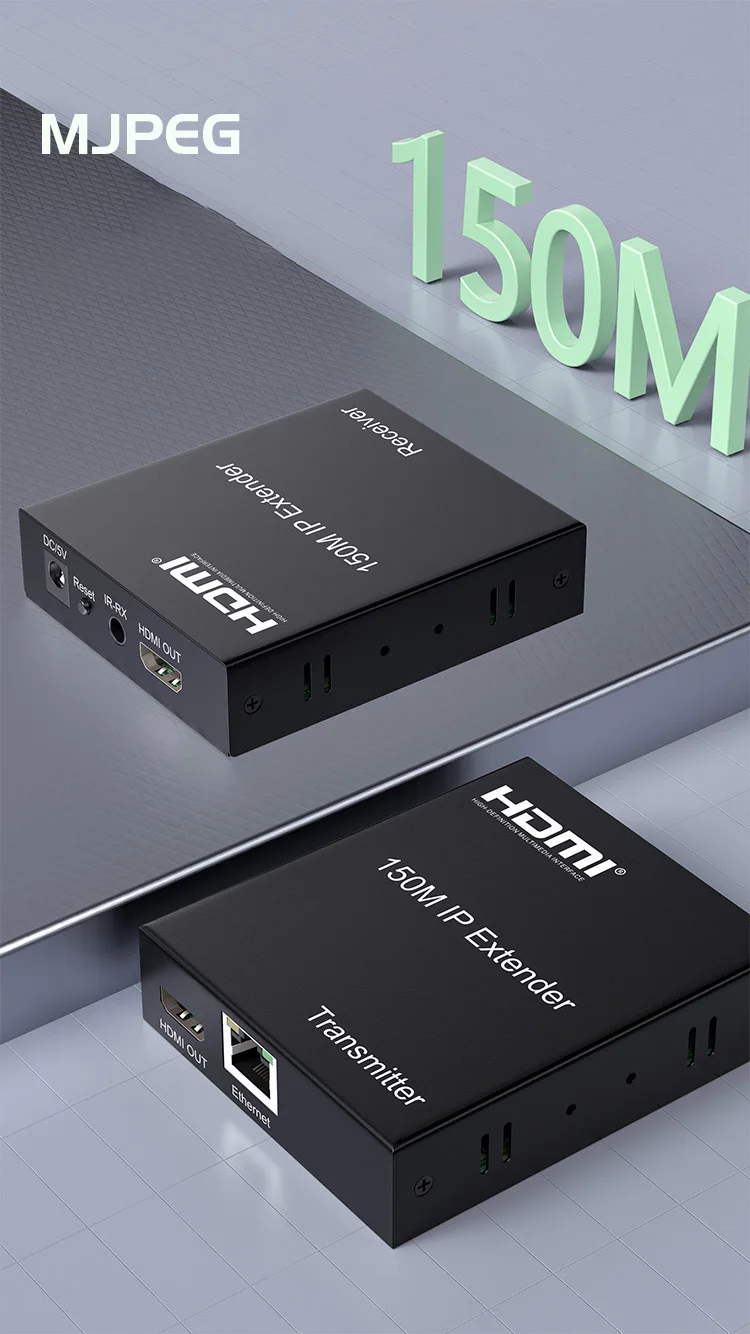

• Decoding Mode MJPEG

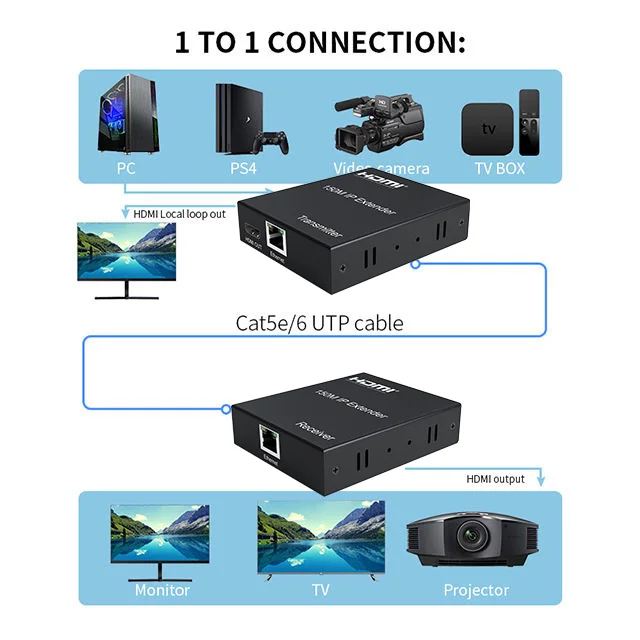

• Support point-to-point mode, point-to-multipoint mode, multipoint-to-multipoint mode and cascade connection mode;
• 802.3 Ethernet standard;
• The design of pure hardware, plug and play, no need for additional software.
• Brand New and is not compatible with the H.264 version mode. This is a new chip.

Specifications:

• Resolutions : 480P/720P/1080P
• Audio Sample rate: 32kHz,44.1kHz and 48kHz
• Power adapter format:
  • Input AC (50HZ, 60HZ) 100V-240V
  • output: DC5V/1A
• The max working current TX 500mA,RX 500mA
• Size(L-W-H): 93*78*22.7mm
• Weight  228g x 2
• Operating Temperature/Humidity   0℃-45℃/10%-80%RH(no condensation)
• Storage Temperature/Humidity   -10℃-70℃/5%-90%RH(no condensation)

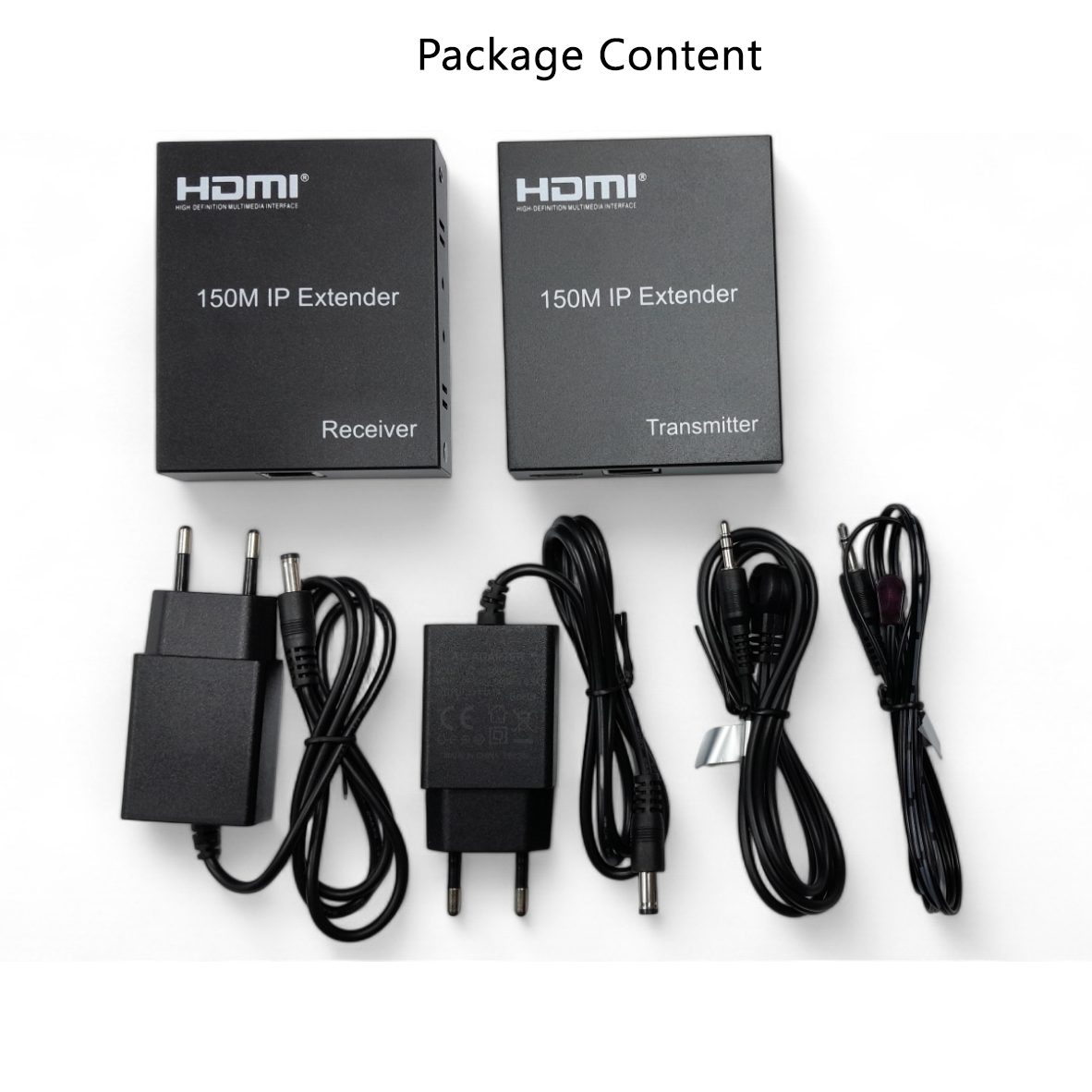

The Package contents :(for 1 TX and 1 RX)

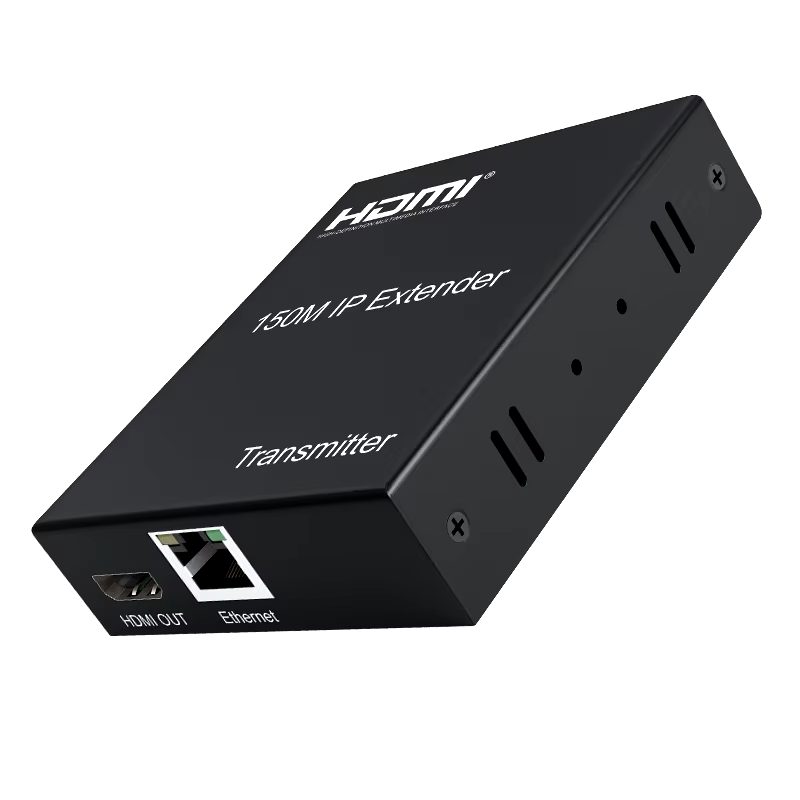

• Transmitter x 1

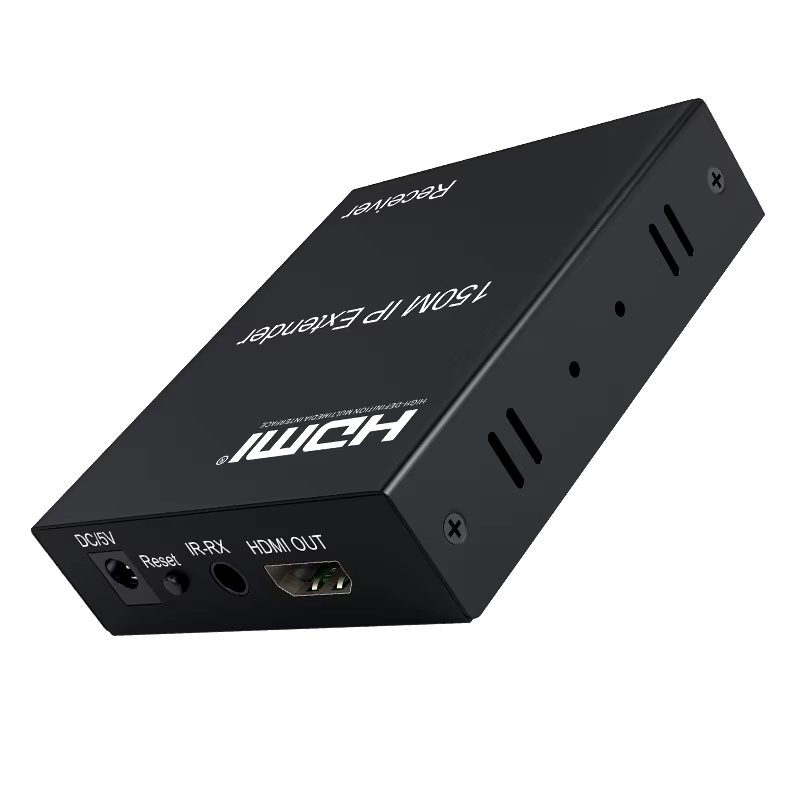

• Receiver x 1
• 5V Power adapter x 2
• IR cable x 1 Pair
• User’s Manual x 1
