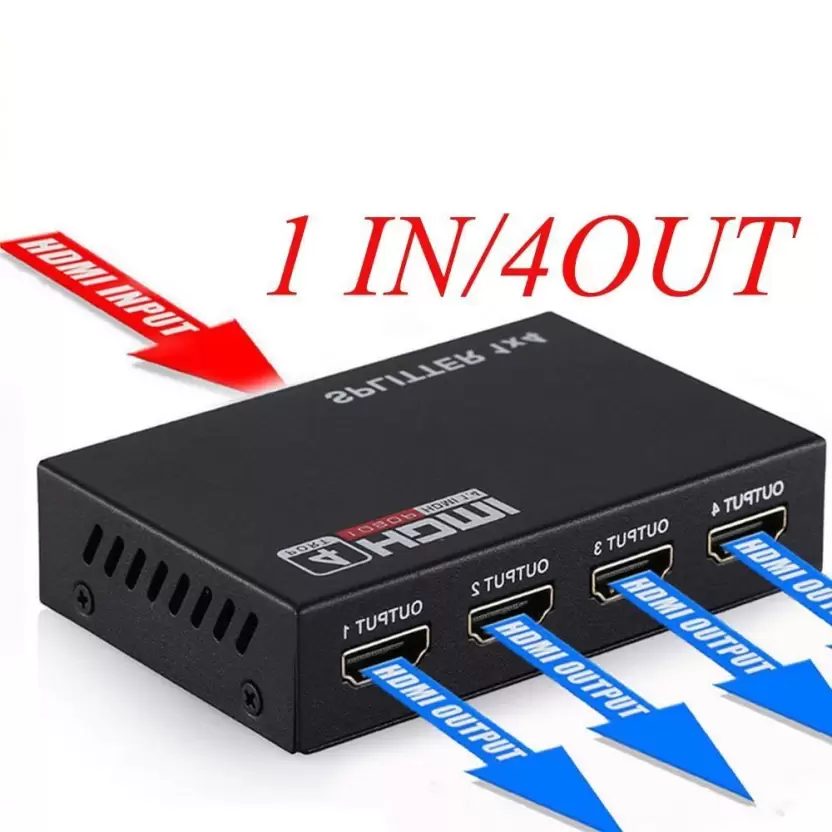

HDMI Splitter 1080P 1 in 4 out V1.4

This compact HDMI splitter can reliably distribute a single HDMI source to Two (2) or four (4) synchronized outputs. More outputs can be created by cascading multiple splitters. Ideal for setting up HD video entertainment or informative displays  in offices, shopping centers, conference rooms, schools, and training facilities.

Features:

• 3D Compatible (If your devices support 3D)
• Cascaded: Large distribution achieved by cascading more HDMI amplifier splitter
• Supports HDCP, 8bit per channel (24bit all channel) deep color
• Support compressed and uncompressed digital audio formats including DTS-HD , Dolby True HD and LPCM7.1

Specification:

• Device Type: HDMI Splitter
•  Input Video Signal: 0.5-1.0V p-p
• Input DDC Signal: 5 V p-p(TTL)
• Max Signal Link Range: 1920×1200 1080p, 3D 1080p / 24Hz
• HDMI Resolution: 480i / 576i / 480P / 576P / 720P / 1080i / 3D 1080P
• DVI Resolution: 480P / 576i / 576P / 720P / 1080i / 3D 1080P / 24Hz
• HDMI Version: HDMI 1.4, 3D

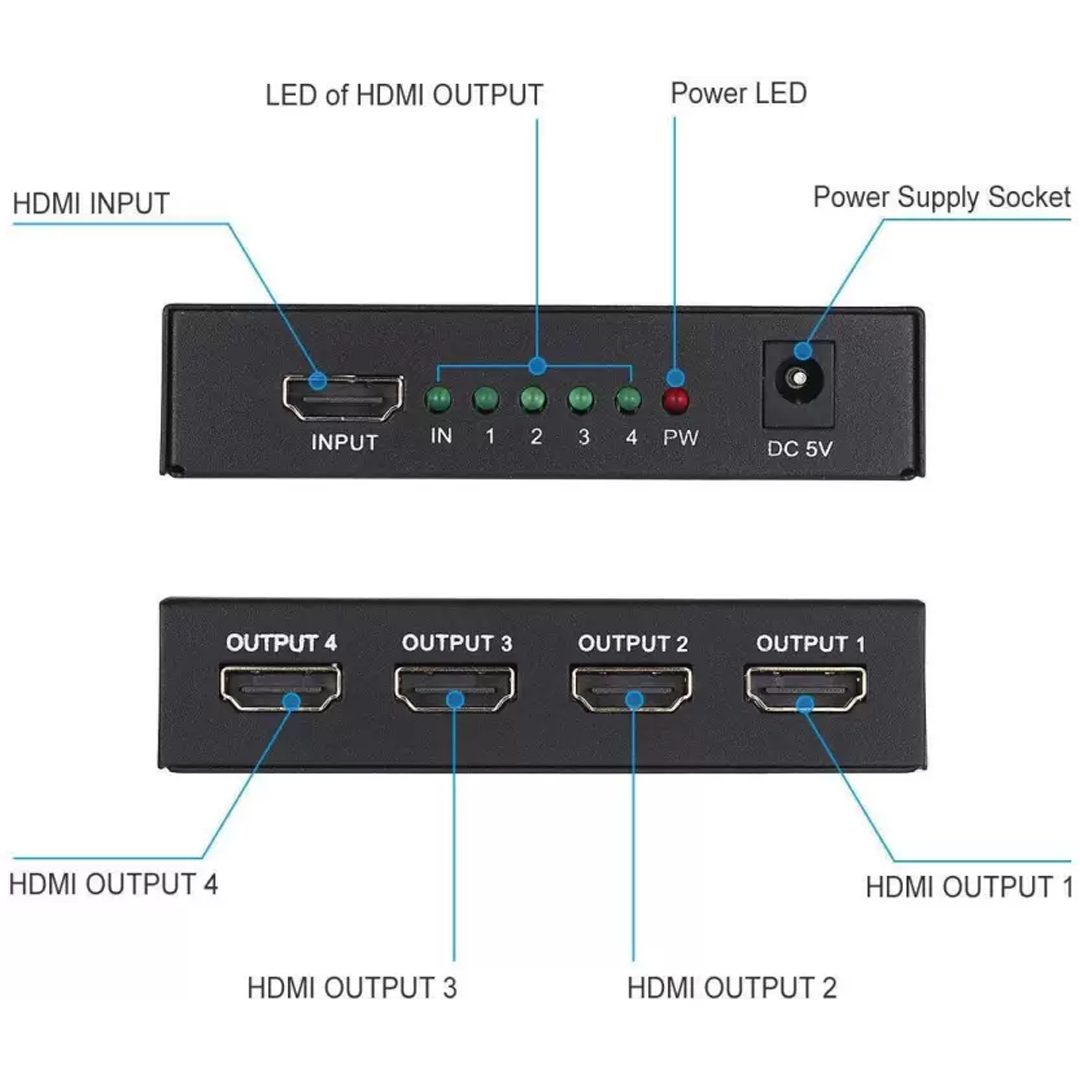

• Ports: HDMI Standard (Female)
• Power supply: DC 5V/2A (100V – 240V AC/DC Power Adapter included)
• Bandwidth: Up to 225MHz
• EDID Duration: 4 seconds
• Adapter wire length: 85cm (Approx)
• Dimensions: 96mm(L) x 62mm(W) x 22mm(H)

Compatible with

• For Projector, STB, PC, DVD,TVBOX, HD-DVD, for PS3, etc.

Package Include:

• 1 x HDMI Splitter
• 1 x AC/DC Power Adapter
• 1 x User Manual
