The terminal connector is an accessory product used to realize electrical connection, It builds a bridge of communication between blocked or isolated circuits in the circuit, so that the current can flow and the circuit can realize the predetermined function. Terminal connectors are an indispensable part of electronic equipment. Observing along the path of current flow, you will always find one or more connectors.
The IDC box head connector socket terminal is a very simple to use internal wiring device. Tough, durable, acid-resistant and corrosion-resistant, all-copper high-quality JTAG connector plugs can transmit control signals and weak currents to the PCB board.
The IDC box head connector is essentially a JTAG wiring socket, and its function is the same as that of the female sockets SH, MX, PH, etc., and it is also a connection to the relevant connecting lines. Widely used in CNC machine tools, mining equipment, instrumentation, security, intelligent access control, communications, automotive industry, artificial intelligence and other fields.
SPECIFICATION

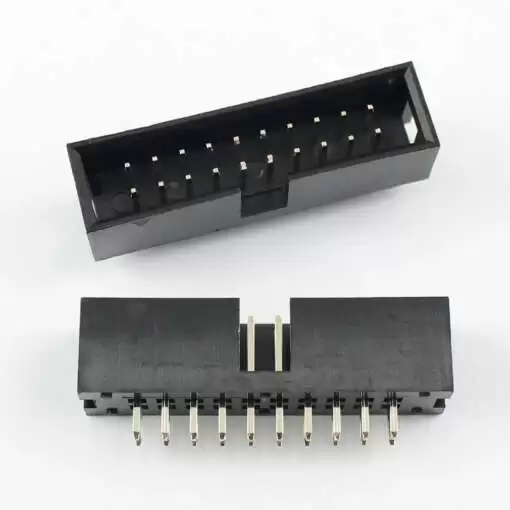

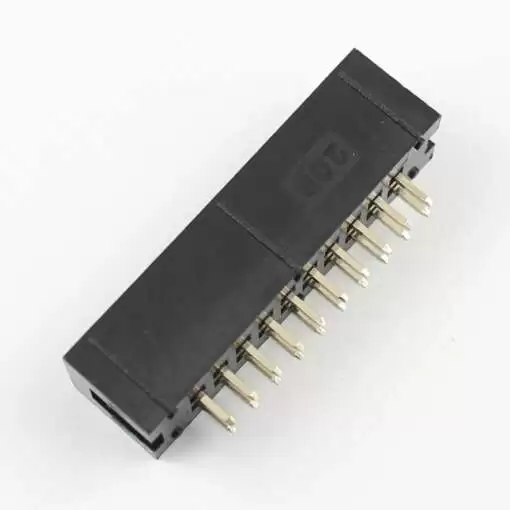

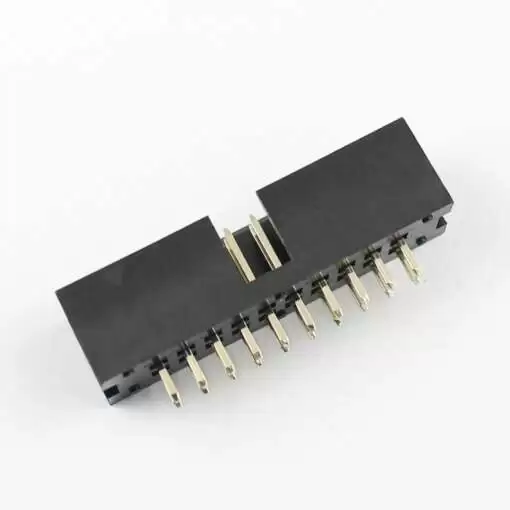

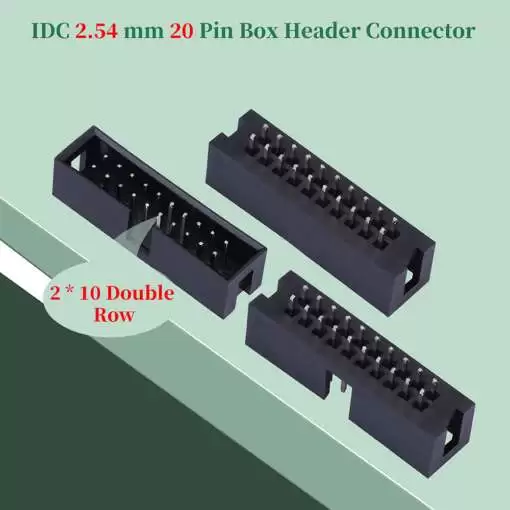

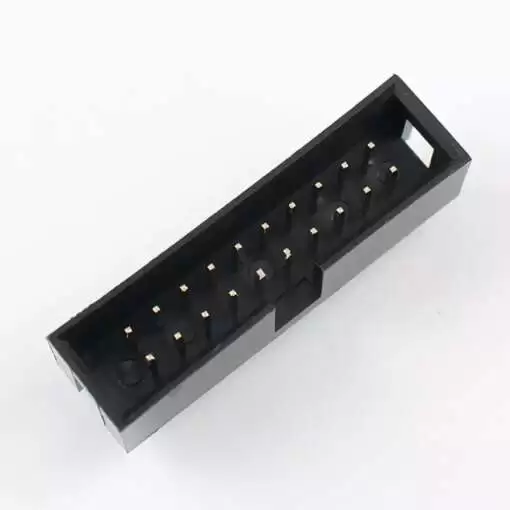

- Model: IDC 2 * 10 Pin Male Socket Terminal

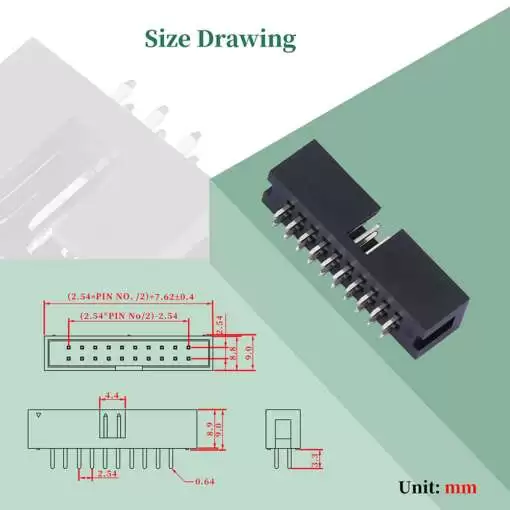

- Pitch: 2.54 mm / 0.1 inch
- Body Orientation: Straight
- Row Type: Double Row
- Number Of Contacts: 20
- Connector Type: IDC
- Insulator Material: PBT
- Contact Plating: Gold Flash
- Contact Material: Brass
- Current Rating: 3 Ampere
- Withstand Voltage: AC 500V
- Insulator Resistance: 5000 Megohm Minimum
- Operating Temperature: -40 Degrees Celsius to +105 Degrees Celsius
- Applicable Wire Gauge: UL2651#28
- Properties: Fire / Flame Retardant
