Features:

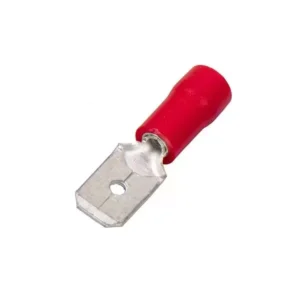

Wire terminals are used to easily connect wires to screws, posts, and other terminals/wires. They are available in a variety of wire gauges and connection types.
The tin-plated copper or brass base of these terminals provides good electrical connectivity while also allowing for a quick, solderless
crimp connection. Additionally, on insulated terminals, PVC insulation protects the connection against abrasion, chemicals, oils, fuels, and solvents.
Specifications:
- Part Number: MDD1.25-250
- Terminal Type: Quick Connect, Male
- Wire Size :16 to 22 (AWG)
- Current rating: 10A.
- Temperature : 75°C (167°F)
- Terminal Material: Tin-Plated Brass
- Insulation Material: Red PVC

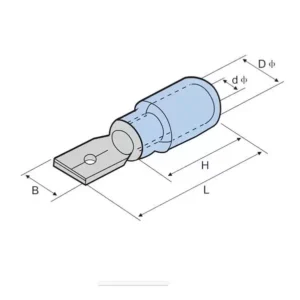

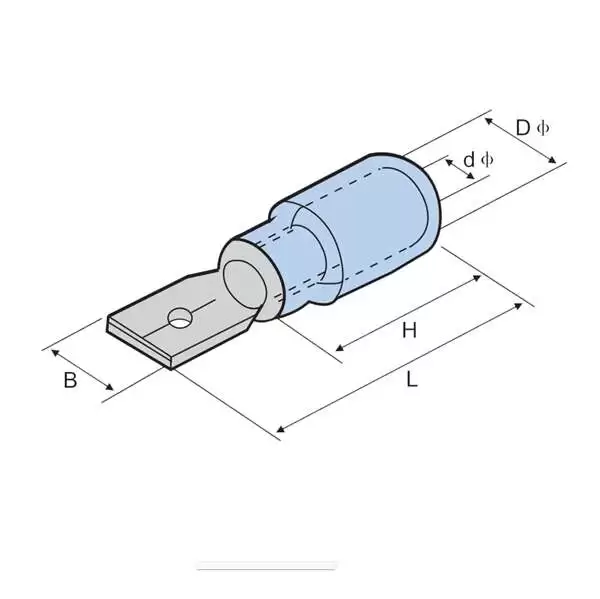

| ITEM NO | Name Tab | Dimension (mm) | Color | |||||
| mm | B | d | D | L | H | |||
| MDD 1.25-250 | 16 to 22 | 6.2 | 3.5 | 5 | 21.6 | 10.3 | Red | |
