IRF1404PBF Power MOSFET Transistor N-Channel 40V 162A TO-220
IRF1404PBF Power MOSFET Transistor N-Channel 40V 162A TO-220 – Ultra Low RDS(on), High Efficiency Switching Transistor is a high-power N-channel MOSFET designed for efficient switching and power management applications. With extremely low on-resistance and a high current handling capability of up to 162A, it is ideal for motor control, DC-DC converters, power supplies, and high-efficiency switching circuits. The TO-220 package ensures excellent thermal performance and easy mounting for heat dissipation, making it suitable for industrial, automotive, and DIY high-power electronics projects.
Features
- Ultra-low RDS(on) for high efficiency switching performance.
- High continuous drain current capability up to 162A.
- Supports 40V drain-source voltage rating.
- Fast switching speed for improved circuit response.
- TO-220 package ensures excellent heat dissipation.
- Suitable for high-power motor control applications.
- Reliable performance in power electronics circuits.
- Optimized for low conduction losses.
- Easy to drive in switching applications.
- Ideal for industrial and DIY power systems.
Specifications
| Parameter | Details |
|---|---|
| Part Number | IRF1404PBF |
| Transistor Type | N-Channel Power MOSFET |
| Package Type | TO-220AB |
| Drain-To-Source Breakdown Voltage (VDS) | 40V |
| Continuous Drain Current (Silicon Limited) | 202A At 25°C Case Temperature |
| Continuous Drain Current (Package Limited) | 75A Due To Lead Wire Limitations |
| Static Drain-To-Source On-Resistance (RDS(on)) | 0.004Ω Maximum At 110A Gate Drive |
| Gate Threshold Voltage (VGS(th)) | 2.0V To 4.0V |
| Gate-To-Source Voltage (VGS) | ±20V Maximum |
| Total Gate Charge (Qg) | 131nC Typical |
| Maximum Power Dissipation (PD) | 333W At 25°C Case Temperature |
| Single Pulse Avalanche Energy (EAS) | 620mJ Maximum |
| Operating Junction Temperature Range | -55°C To +175°C |
| Thermal Resistance Junction-To-Case (RθJC) | 0.45°C/W Maximum |
| Thermal Resistance Junction-To-Ambient (RθJA) | 62°C/W Maximum |
| Mounting Type | Through Hole |
| Applications | Power Switching, Motor Control, DC-DC Converters, Power Supplies |

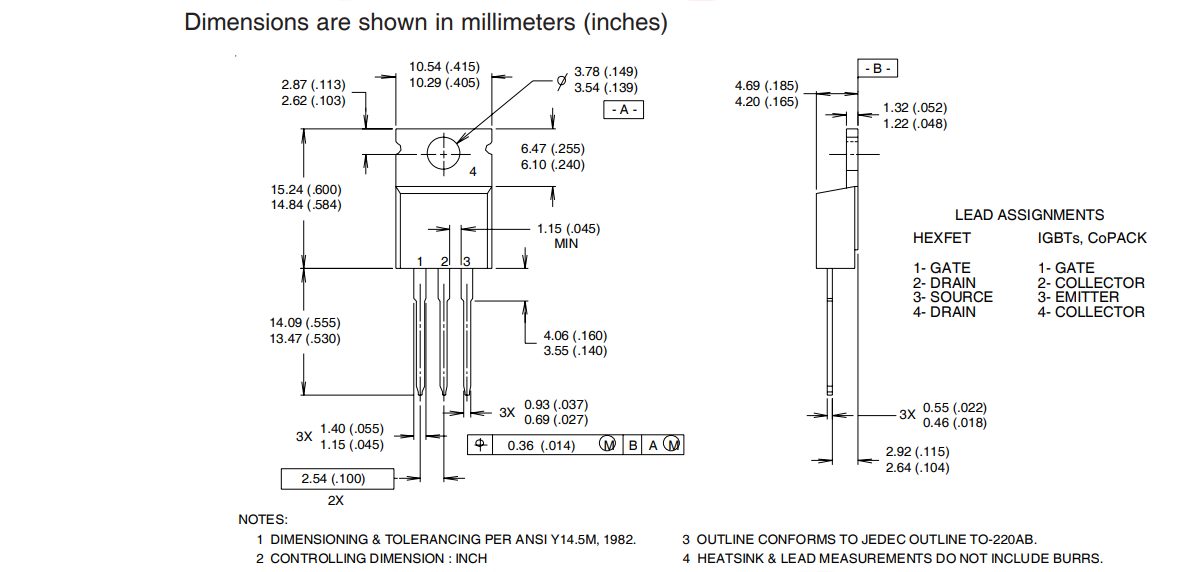

Dimensions

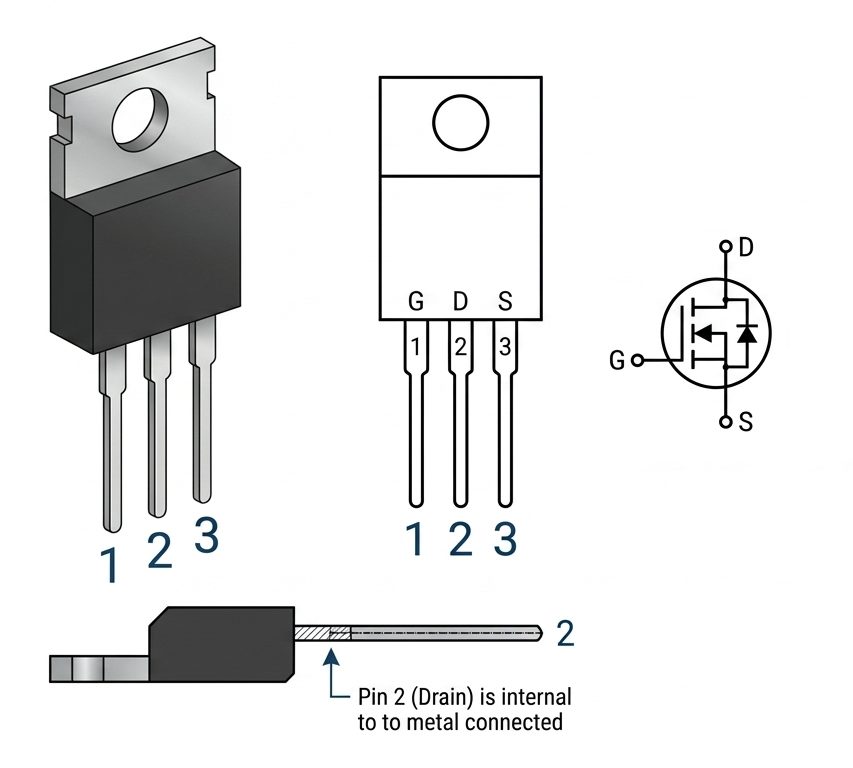

Pin Configuration
| Pin Number | Pin Name | Function/Description |
| 1 | Gate | Controlling terminal for the MOSFET. Applied voltage controls the drain current. |
| 2 (and Tab) | Drain | Main current-carrying terminal. Connected to the heat-dissipating tab. |
| 3 | Source | Common connection for both Gate and Drain current. |
Applications
- DC motor speed control circuits.
- Power supply switching circuits.
- DC-DC converter modules.
- Automotive electronic systems.
- High-current battery protection circuits.
- Inverter and UPS systems.
- LED high-power drivers.
- Solar power regulation systems.
- Industrial automation equipment.
- DIY high-power electronics projects.
Package Contents
- 1 x IRF1404PBF Power MOSFET Transistor N-Channel 40V 162A TO-220
