J4011 Jetson ORIN NX reComputer 8GB Kit

J4011 Jetson ORIN NX reComputer 8GB Kit

The reComputer J4011 Jetson ORIN NX 8GB Kit is a compact edge AI computer built around the NVIDIA Jetson Orin NX 8GB production module and Seeed Studio’s reComputer J401 carrier board. It combines an NVIDIA Ampere GPU, Arm Cortex-A78AE CPU, LPDDR5 memory, NVMe storage, high-speed USB, Gigabit Ethernet, HDMI, MIPI CSI camera interfaces, PCIe expansion, and general-purpose I/O in a compact enclosed system. The specific J4011 SKU is 110110144 and provides up to 70 TOPS AI performance.

Features:

• NVIDIA Jetson Orin NX 8GB production module.
• Up to 70 TOPS AI performance for the J4011 configuration.
• 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores.
• 6-core Arm Cortex-A78AE v8.2 64-bit CPU.
• 8GB 128-bit LPDDR5 memory with 102.4GB/s bandwidth.
• 1x NVDLA v2 deep-learning accelerator.
• 1x PVA v2 vision accelerator.
• 128GB NVMe SSD included.

Specifications:

Applications:

• Edge AI inference systems.
• Computer vision applications.
• Intelligent camera systems.
• Robotics and autonomous systems.
• Industrial machine vision.
• AI-enabled IoT systems.
• Smart manufacturing.

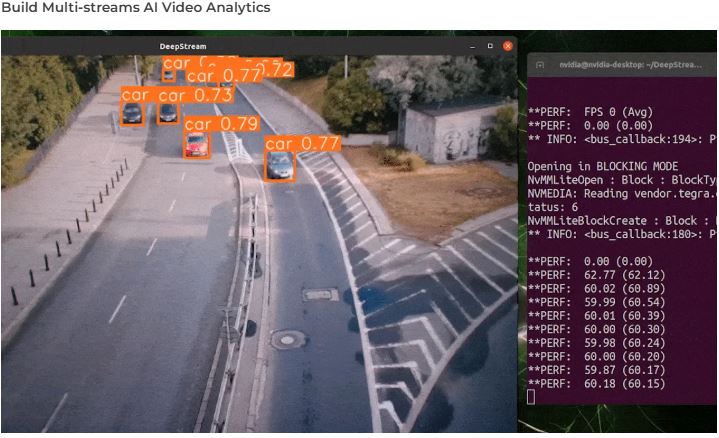

• Video analytics.
• Multi-camera vision systems.
• Deep-learning inference at the edge.
• Embedded AI development.
• Autonomous machines and intelligent equipment.

Package Include:

1x J4011 Jetson ORIN NX reComputer 8GB Kit.

Documents:

• Datasheet
• Schematic
