Easy installation
Its connectors are wide enough for clean and robust welding.
They are suitable both for the PCB mounting in cable and welded installation.
This component can be used for prototyping and repair/construction as well.
| CHARACTERISTICS | |
|---|---|

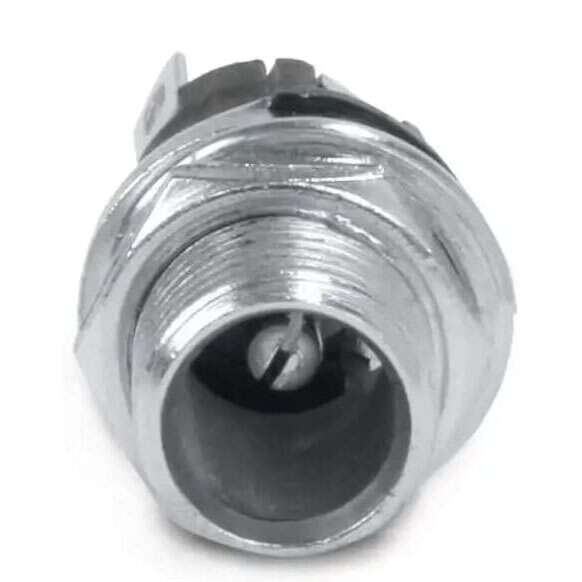

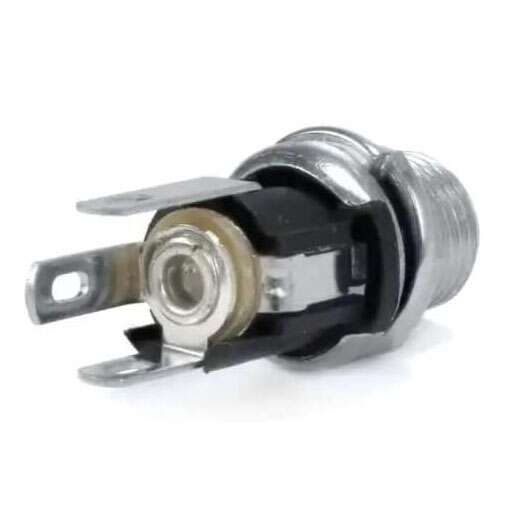

| Type | Socket DC Jack female |
| Inlet dimensions | External: 5.6 mm Pin: 2.5 mm Length: 8.5 mm |
| Overall dimensions | Max external diameter: 10.8 Hole diameter: 7.8 mm |
| PCB connectors Dimensions | 5.8 mm x 2.8 mm |
| Panel Thickness max | 6 mm |
| PARTS SUPPLIED | |
|---|---|
| Jack Inlet | x1 |
| Bolt | x1 |
| 8mm Waterproof Gland | x1 |
