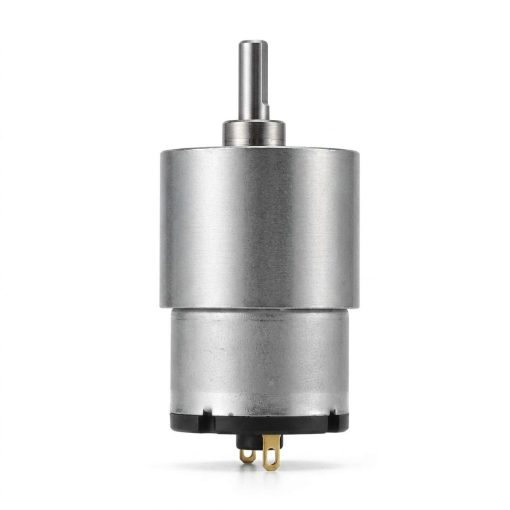

JGB37-520 DC Gear Motor 12V 200RPM D-Shaft 6mm with Mounting Bracket
JGB37-520 DC Gear Motor 12V 200RPM D-Shaft 6mm with Mounting Bracket is a durable geared motor designed for applications requiring stable speed and enhanced torque. Featuring a robust metal gearbox, 6mm D-shaped output shaft, and a reliable 12VDC operating voltage, this motor provides smooth and efficient performance for robotics, automation systems, smart devices, conveyor mechanisms, and DIY engineering projects. The included heavy-duty mounting bracket allows secure installation and easy integration into various mechanical assemblies, making it an excellent choice for professional and hobbyist applications.
Features
- High torque output for demanding mechanical applications.
- Stable operating speed of 200RPM.
- Durable metal gearbox for long service life.
- Operates efficiently from a 12VDC power source.

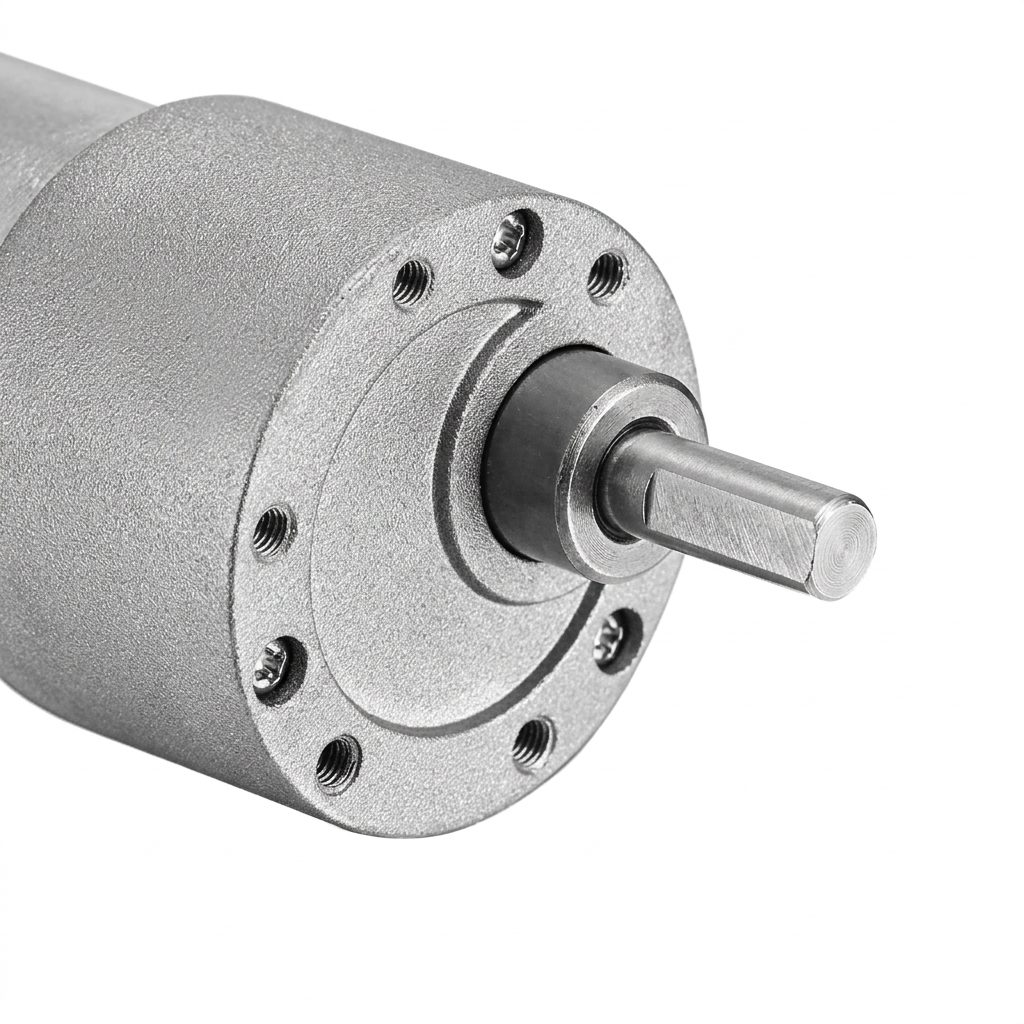

- 6mm D-shaped shaft provides secure coupling.
- Reversible CW and CCW rotation capability.
- Heavy-duty mounting bracket included for easy installation.
- Compact design suitable for space-limited projects.
- Smooth and reliable operation with low noise.
- Ideal for robotics, automation, and DIY projects.
Specifications
| Parameter | Details |
| Product Model | JGB37-520 |
| Motor Type | DC Geared Motor |
| Gearbox Type | Metal Gearbox |
| Rated Voltage | 12VDC |
| Free Run Speed | 200RPM |
| Free Run Current (12V) | 0.06A |
| Rated Speed | 160RPM |
| Rated Current (12V) | 0.15A |
| Rated Power | 0.8W |
| Rated Torque (12V) | 0.45kg.cm |
| Stall Current (12V) | 1.2A |
| Stall Torque (12V) | 1.8kg.cm |
| Reducer size | 22mm |
| Weight | 150g |
| Shaft Diameter | 6mm |
| Shaft Type | D Shape Shaft |
| Rotation Direction | Clockwise and Counter Clockwise / Forward And Reverse |
| Mounting Type | Bracket Mount |
| Body Material | Metal and Plastic Construction |
| Operating Principle | Brushed DC Motor |
| Duty Cycle | Continuous Operation |
| Application Type | Low Speed High Torque Applications |
Dimensions
Pin Configuration
| Pin Number | Pin Name | Function/Description |
|---|---|---|
| 1 | Motor Terminal (+) | Connect to positive supply voltage. |
| 2 | Motor Terminal (-) | Connect to negative supply voltage. |
Applications
- Robotics projects and mobile robots.
- Automatic door mechanisms.
- Conveyor belt systems.
- Smart home automation devices.
- DIY engineering projects.
- Educational robotics platforms.
- Motorized display systems.
- Small electric vehicles and carts.
- Industrial automation equipment.
- Mechanical actuator systems.

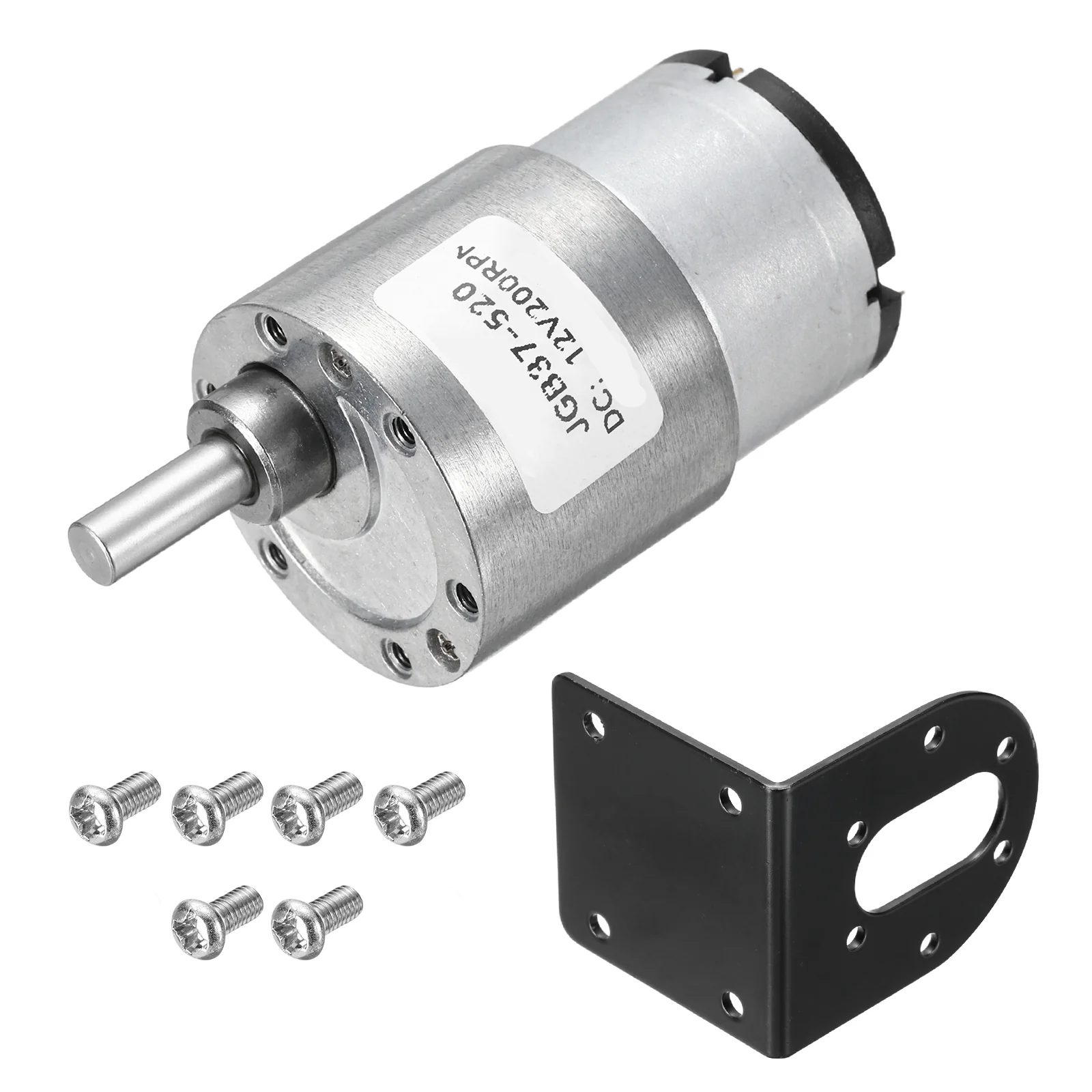

Package Contents
- 1 x JGB37-520 DC Gear Motor 12V 200RPM D-Shaft 6mm
- 1 x Metal Mounting Bracket.
- 6 x M3 Mounting Scerw 5mm.
