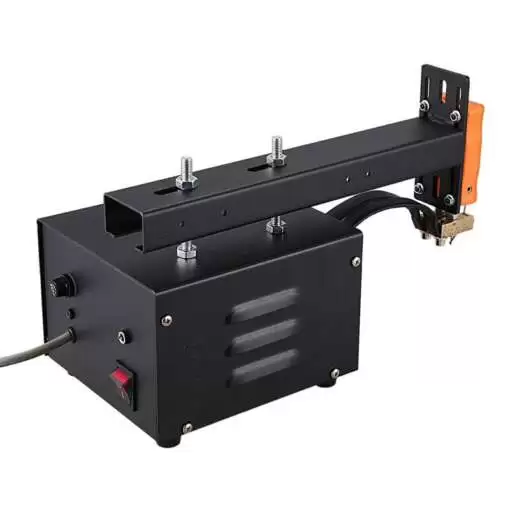

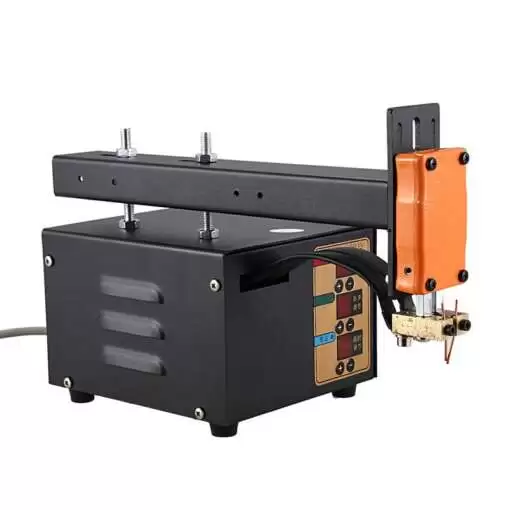

JSD-IIS 3KW High Power Spot Welder for 18650 Lithium Battery Pack

Features:

• Usage: Lithium battery welding spot welder
• Max. Welding Thickness: 0.2mm (nickel plated steel)
• Rated Duty Cycle: Other
• Weight: 5.7KG
• Colour: Black
• material: plastic

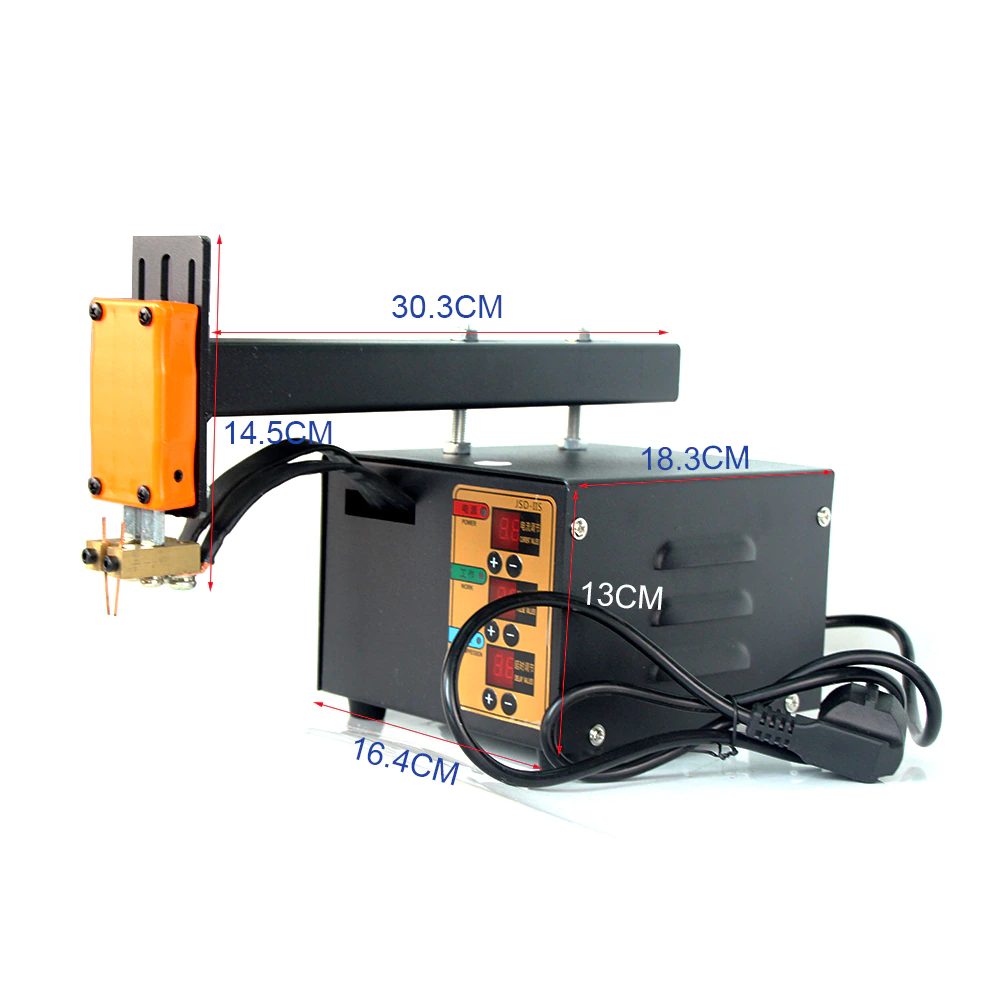

• Dimensions: 164 x 183 x 130mm
• Welding distance: 150mm
• Welding range: Stainless steel, iron, nickel etc.
• Input power: 220V
• Output power: 3KW
• Welding current: 01-99 adjustable
• Pulse adjustment: 01-06 adjustable
• Delay adjustment: 01-99 adjustable
• Use object: assemble or repair mobile power / charging treasure / laptop battery / digital product battery / power tool battery, etc., support a variety of lithium batteries (non-aluminum pole) welding

Note:

1. The two solder pins can’t Contacting, avoid short circuit.
2. The machine power should be plugged into the wall socket.
3. Please use 30A circuit breaker switch. (40A is better)
Welding Current Reference:
20A circuit breaker switch can use welding current 20
30A circuit breaker switch can use welding current 30
40A circuit breaker switch can use welding current 40
Plug Type: EU Plug, it applies to Indonesia, Germany, France , Spain, Italy and so on.

Package Contents:

1 x Spot welder
1 x Foot Switch
100 x Nickel sheet
1 x Hex wrench
2 x fuse
4 pair x Solder pin

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
