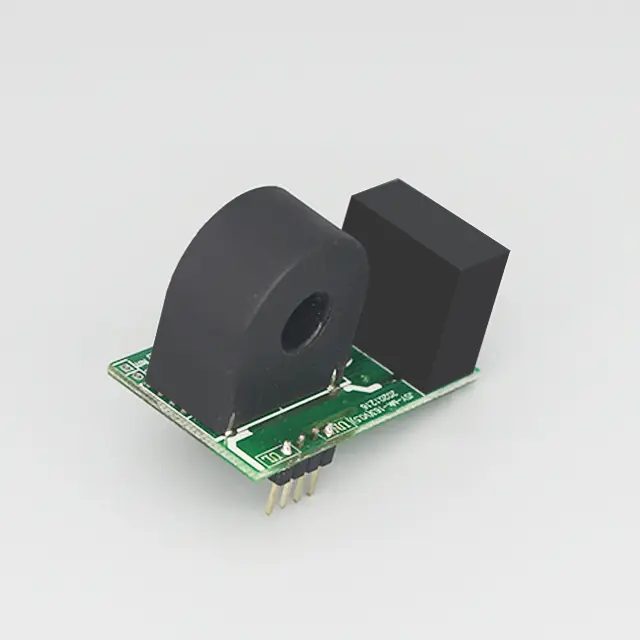

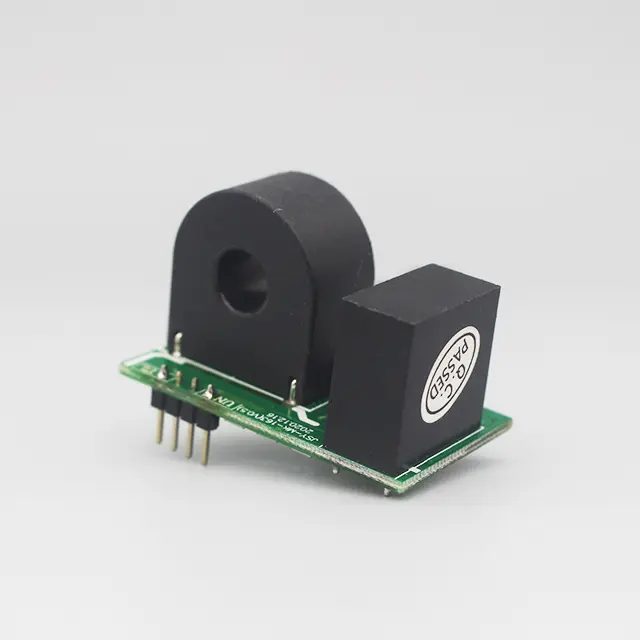

JSY-MK-163 Single Phase Mutual Inductance Electric Energy Metering Module

  • It can replace the traditional electricity meter metering unit, and the accuracy conforms to the classes 1 standard in IEC62053-21
  • MODBUS-RTU protocol.
  • Accurately measure single-phase AC voltage, current, power, power factor, frequency, electric quantity and other electrical parameters.
  • One TTL communication interface, compatible with 5v/3.3v.
  • Electrical insulation withstand voltage 3000VAC.
  • Multiple specifications can be selected, single turn through core PCB fixed or open transformer, which is convenient and easy to use.
  • It can be changed and customized according to customer requirements.

850.00 EGP

Buy Now
Availability: In Stock
SKU:2323000074
Product Overview

JSY-MK-163 single mutual inductance electric energy metering module is a highly integrated measurement and digital communication technology, which can complete single-phase AC parameter measurement of electric energy measurement, collection and transmission, and can accurately measure single-phase AC voltage, current, power, and power factor, frequency, power and other electrical parameters. With 1 TTL level interface, small size, simple interface, and excellent cost performance.

In particular, the complete electrical isolation circuit is adopted, which solves the safety problem of not being isolated from strong electricity in cross-industry applications, and can be easily embedded in various devices that need to measure power consumption.

The single mutual inductance electric energy metering module can be widely used in energy-saving renovation, electric power, communication, railway, transportation, environmental protection, petrochemical, steel and other industries to monitor the current and power consumption of AC equipment.

Product Technical Parameters:

1. Single-phase AC input

1) Voltage: 220V

2) Current: 50A

3) Signal processing: using a dedicated metering chip, 24-bit AD.

4) Overload capacity: 1.2 times the range can last; instantaneous (<20ms) current 5 times, voltage 1.5 times the range will not be damaged.

5) Input impedance: voltage channel>1KΩ/V.

2. Communication interface

1) Interface type: 1 TTL communication interface, compatible with 5V/3.3V.

2) Communication protocol: MODBUS-RTU protocol.

3) Data format: “n,8,1”, “e,8,1”, “o,8,1”, “n,8,2” can be set by software.

4) Communication rate: The baud rate can be set to 1200, 2400, 4800, 9600bps; the default baud rate is 4800bps.

3. Measurement data output

Multiple electrical parameters such as voltage, current, power, power factor, frequency, and electricity.

4. Electrical isolation

The power supply under test and the power supply are isolated from each other, and the isolation withstand voltage is 3000VAC.

5. Power supply

DC single power supply 5V power supply, power consumption 8~10mA.

6. Working environment

1) Working temperature: -20~+70℃; Storage temperature: -40~+85℃.

2) Relative humidity: 5~95%, no condensation (at 40°C).

3) Altitude: 0~3000 meters.

4) Environment: No explosion, corrosive gas and conductive dust, no significant shaking, vibration and shock.

7. Temperature drift

≤100ppm/℃

8. Installation method

PCB welding, module plane size is 25.6*43.3mm

9. Module size

25.6*43.3*29mm

10. Shape and interface definition

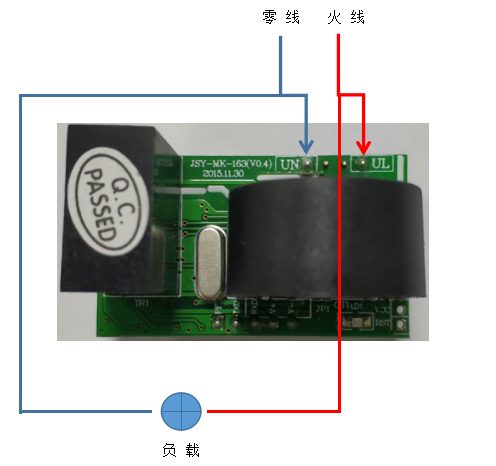

11. Wiring Diagram

Underlying Parameter
Measured parameters:
Serial Number 2323000191
Product model: JSY-MK-163
Voltage range: AC 1-300V ±0.5% F.S
Current range: AC 20mA-50A ±0.5% F.S
Voltage resolution: 0.01V
Current resolution: 0.01A
Active power: IEC62053-21 classes 1  Units 1W
Electric energy: IEC62053-21 classes 1  Units 0.01kWh
Communication parameter
Interface type: TTL 3.3/5V
Communication protocol: Modbus-RTU
Data format: N,8,1
Communication bps: 4800 bps
Product performance
Product power consumption: <2W
Power supply: DC 3.3/5V
Work environment: -20~+70℃
