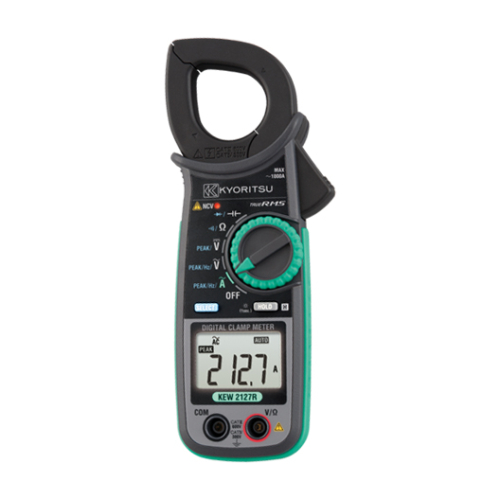

KYORITSU KEW 2127R AC Clamp Meter (Made In THAILAND)
The KYORITSU KEW 2127R AC Clamp Meter (Made In THAILAND) is a handheld AC digital clamp meter engineered for field technicians who need a dependable, one-handed instrument for inspecting electrical systems. Its design centers on giving clear, legible readouts and intuitive controls so users can quickly verify circuit conditions without removing conductors or interrupting service. The housing balances ruggedness with ergonomics, keeping the meter comfortable during repeated use while protecting internal circuitry from everyday knocks.
Internally the meter combines precise signal acquisition with on-device processing to present stable measurements for both steady-state and transient events. The clamp jaw allows non-contact clamping of conductors up to the rated diameter, and the instrument’s user interface groups key operations range selection, hold, and peak capture within easy thumb reach. The display and controls are arranged to reduce chance of error when working in dim or cramped locations.
Built as part of a product family that spans basic to advanced models, the 2127R targets tasks where verifying current, voltage and signal presence rapidly is essential. The documentation stresses safe operating practice and clear safety markings; the meter is presented as a practical tool for routine inspections, troubleshooting and verification work across a variety of electrical environments.
Features:
- True-RMS measurement for accurate readings on non-sine loads.
- Peak-hold function for capturing inrush/current transients (2127R only).
- Backlit LCD for visibility in low light (2127R only).
- Non-contact voltage (NCV) detection with LED indicator.
- Ergonomic over-molded body for single-hand operation.
- Fully guarded clamp jaw for safe conductor access.
- Large, easy-to-read display with 0.01 A resolution on relevant ranges.
Specifications:
| Specification | Value |
|---|---|
| AC Current (ACA) ranges & accuracy: | 60.00/600.0/1000A (auto) ±1.5%rdg±4dgt (45–65Hz) ±2.0%rdg±5dgt (40–1kHz) Guaranteed 0.1A–1000A |
| AC Voltage (ACV) ranges & accuracy: | 60.00/600.0V (auto) ±1.0%rdg±2dgt (45–65Hz for 600V); ±1.5%rdg±4dgt (40–1kHz) |
| DC Voltage (DCV) ranges & accuracy: | 60.00/600.0V ±1.0–1.2%rdg±3dgt |
| Frequency (Hz): | 999.9Hz / 9.999kHz, ±0.1%rdg±3dgt (20Hz–9.9kHz guaranteed) |
| Resistance (Ω): | Auto ranges to 40.00MΩ accuracy varies by range (e.g., ±1.0%rdg±5dgt at 600Ω) |
| Capacitance: | 1.000 / 10.00 / 100.0µF, ±3.0%rdg |
| Diode test: | 2.000V range, ±4%rdg±5dgt open-loop voltage < 3.5V |
| Continuity: | Buzzer threshold < 90Ω (buzzer sounds below 90Ω) |
| Crest factor / Over-range notes: | Crest factor < 3 (45–65Hz) add ±0.5%rdg±5dgt for high peaks |
| Conductor size (jaw): | Ø 33 mm max |
| Measurement method / cycle: | ΔΣ modulation 2.5 measurements/sec |
| Safety / Standards: | IEC 61010-1 / 61010-2-032 / 61010-2-033 CAT IV 300V / CAT III 600V IP40. |
| Withstand voltage: | AC 5160 Vrms, 5 sec between current sensor and enclosure |
| Power source / Battery life: | 2 × AAA (R03/LR03), continuous ≈170 hours (no NCV/backlight) |
| Dimensions / Weight: | 204 × 81 × 36 mm ≈220–230 g (incl. batteries) |
| Accessories: | Test leads Model 7066A carrying case 9079 instruction manual batteries |
Applications:
- Domestic applications.
- Commercial applications.
- Light industry applications.
- Measurement of low and high power circuits.
Package Contents:
- 1x Test leads Model 7066A
- 2x Batteries R03 (AAA) 1.5V
- 1x Instruction manual
- 1x Carrying case Model 9079
