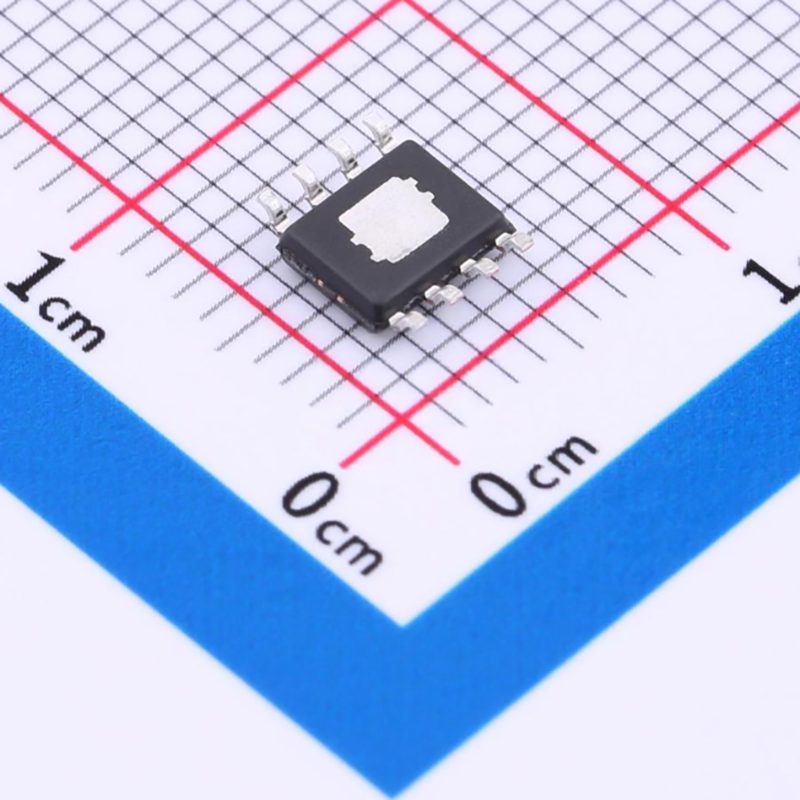

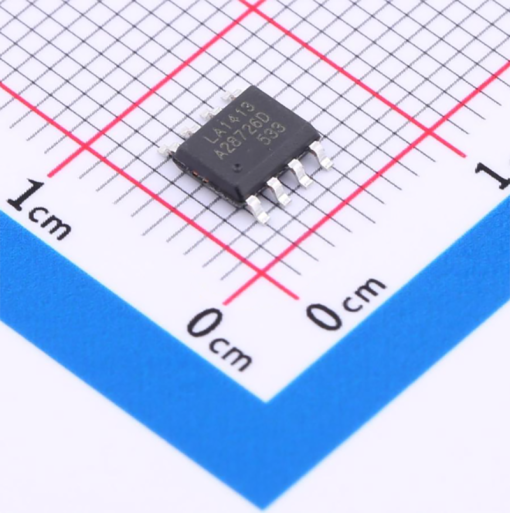

LA1413 Buck 4.5V~36V 3A ESOP-8L DC-DC Converters SMD IC

LA1413 Buck 4.5V~36V 3A ESOP-8L DC-DC Converters SMD IC

The LA1413 is a high-efficiency step-down (buck) DC-DC converter designed to provide stable power conversion in a compact ESOP-8L package. It supports a wide input voltage range, making it suitable for various power supply designs. With its integrated MOSFET and advanced control scheme, it ensures reliable performance while minimizing external component count.

This converter delivers up to 3A of continuous output current with excellent load and line regulation. Its high switching frequency allows for the use of smaller inductors and capacitors, optimizing board space. The LA1413 also features low standby power consumption, making it ideal for energy-sensitive applications.

Built with robust protection features, the LA1413 safeguards against overcurrent, overtemperature, and input undervoltage conditions. Its thermal-enhanced ESOP-8L package ensures efficient heat dissipation, enhancing long-term reliability in demanding environments.

Features:

• Wide input voltage range (4.5V–36V)
• High-efficiency synchronous buck converter
• Up to 3A continuous output current
• Integrated MOSFET for compact design
• Fixed switching frequency for stable operation
• Overcurrent, overtemperature, and undervoltage protection
• Low standby power consumption
• Thermal-enhanced ESOP-8L package

Specifications:

Pinout Diagram:

Footprint Diagram:

Applications:

• Industrial Power Supplies.
• Automotive Electronics.
• Consumer Electronics.
• Networking Equipment.
• LED Lighting Systems.
• Battery-Powered Devices.

Package Contents:

• 1x LA1413 Buck 4.5V~36V 3A ESOP-8L DC-DC Converters SMD IC
