B0305S-1W Isolated DC-DC Converter SIP-4
The B0305S-1W Isolated DC-DC Converter is a compact and efficient solution designed to convert a 3.6VDC input to a stable 5V DC output, delivering up to 1W of power. This converter is engineered for applications requiring reliable power conversion with electrical isolation between input and output circuits. With an isolation voltage of 1000VDC, it ensures safe operation in systems where electrical separation is critical, such as in distributed power supply systems.
Features:
- Efficiency up to77%.
- Small footprint.
- Miniature SIP-4 package.
- 1kVDC isolation.
- Operating temperature range: -40°C to +85°C.
- Internal SMD construction.
- Industry-standard pinout.
- No heat sink required.
- No external components required.
- PCB mounting.
Specifications:
| Attribute | Value |
| Category | Power Supply Chip/Power Modules |
| Datasheet | B0305S-1W |
| RoHS | |
| Output Voltage | 5V |
| Output Current (Max) | 200mA |
| Input Voltage(DC) | 3V~3.6V |
| Output Channel | 1 |
| Output Power | 1W |
| Function | – |
| Conversion Type | DC-DC |
| Conversion Efficiency | 77% |

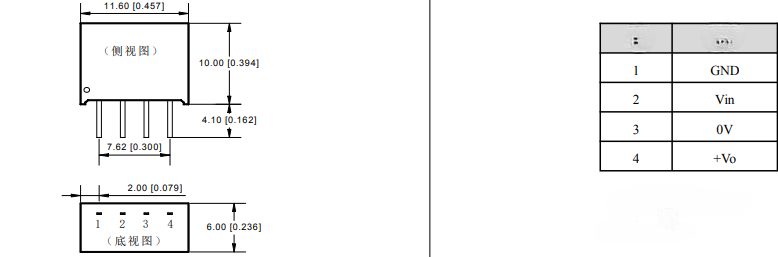

Pin configuration:
Applications:
- Distributed power supply systems.
- Pure digital circuits.
- Low frequency analog circuits.
- Relay-driven circuits.
- Data switching circuits.
Package Include:
- 1 x B0305S-1W Isolated DC-DC Converter SIP-4.
