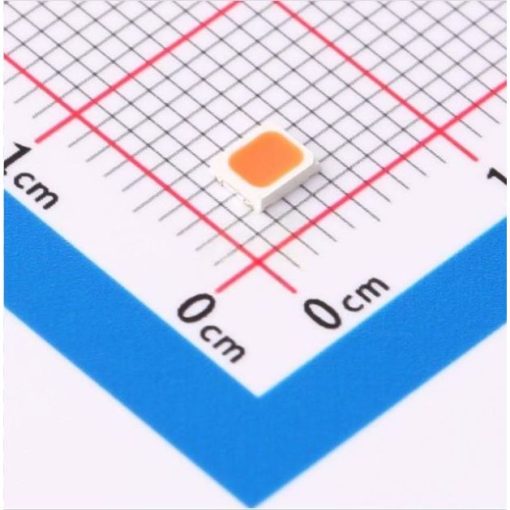

LED 2835 SMD Pink 3.0-3.1V 200mW
The LED 2835 SMD Pink 3.0-3.1V 200mW embodies advanced surface-mount optoelectronics, delivering a soft, vibrant pink illumination in a compact 2835 footprint for seamless integration into modern designs. This 0.2W device, with a precisely binned forward voltage of 3.0-3.1 V at 60 mA, achieves a typical luminous flux of 10-12 lm, ensuring efficient light output while maintaining low thermal dissipation for prolonged reliability in dense assemblies.
Features:
- Industry-standard 2835 footprint for automated placement and reflow compatibility.
- Wide 120° viewing angle for even illumination distribution.
- Luminous flux of 10-12 lm at 60 mA with consistent pink chromaticity.
- Forward voltage binned at 3.0-3.1 V for efficient 200 mW operation.
Specifications:
| Parameter | Value |
|---|---|
| Luminous Flux | 10-12lm(IF=60mA) |
| Forward Voltage | 3.0-3.1V(IF=60mA) |
| Color | Pink |
| Viewing Angle | 120°(IF=60mA) |
| CRI | 70min(IF=60mA) |
| Continuous Forward Current | 60mA |
| Peak Forward Current | 60mA(1/10Duty0.1mspulse) |
| Operating Temperature | -30°Cto+80°C |
| Storage Temperature | -40°Cto+85°C |
| Power Rating | 200mW |
| Package Dimensions | 3.50×2.80×0.80mm |
Foot Print:
Applications:
- LCD backlighting.
- Push-button/keypad backlighting.
- Indicator lights.
- Automotive front panel indicating and backlighting.
- Indoor and outdoor lighting.
- General-purpose lighting.
