LF411 PDIP-8 FET Input Operational Amplifier

10.00 EGP

Buy Now
Availability: In Stock
SKU:3496300084067
Features
  • Internally trimmed offset voltage: 0.5 mV(max)
  • Input offset voltage drift: 10 µV/˚C(max)
  • Low input bias current: 50 pA
  • Wide gain bandwidth: 3 MHz(min)
  • High slew rate: 10V/µs(min)
  • Low supply current: 1.8 mA
  • High input impedance: 1012Ω
  • Low total harmonic distortion AV=10
  • RL=10k, VO=20 Vp-p, BW=20 Hz−20 kHz: <0.02%
  • Low 1/f noise corner: 50 Hz
  • Fast settling time to 0.01%: 2 µs

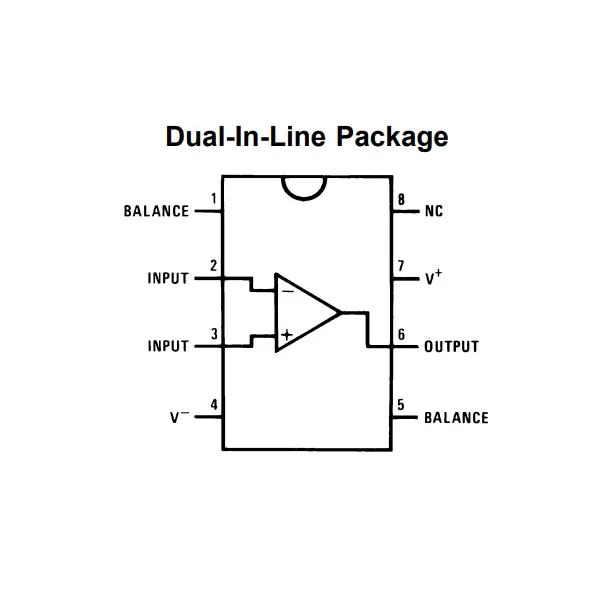

LF411 Pin Configuration
Pin No Pin Name Description
1 BALANCE 1 Offset Balancing Pin 1
2 IN 1 Input Pin 1
3 IN 2 Input Pin 2
4 V- Negative Power Supply
5 BALANCE Offset Balancing Pin 2
6 OUTPUT Output Pin
7 V+ Positive Power Supply
8 NC No Connection
LF411 Datasheet
