LifePo4 Battery Charger Protection Module (BMS) 8S 35A 24V with Aluminum Heat Sink
This high-quality 8S Lithium Iron Phosphate (LiFePO4) Battery Management System (BMS) is designed to monitor, protect, and balance an 8-string lithium iron battery pack. Equipped with a rugged aluminum heat sink for efficient thermal dissipation, this “same-port” wiring module ensures optimal safety during both charging and discharging cycles. It features integrated overcharge, over-discharge, and short-circuit protection, making it a reliable choice for managing robust battery builds.
Features
- Integrated Balancing

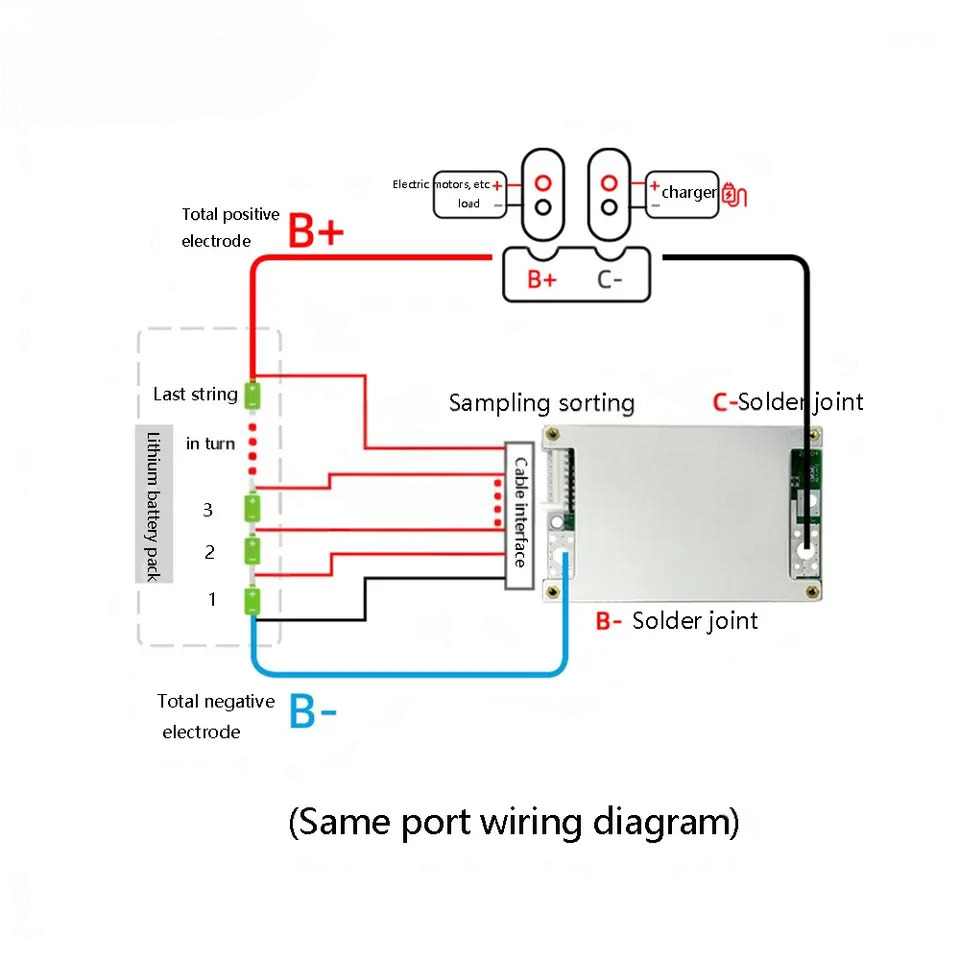

- Same Port Wiring Design

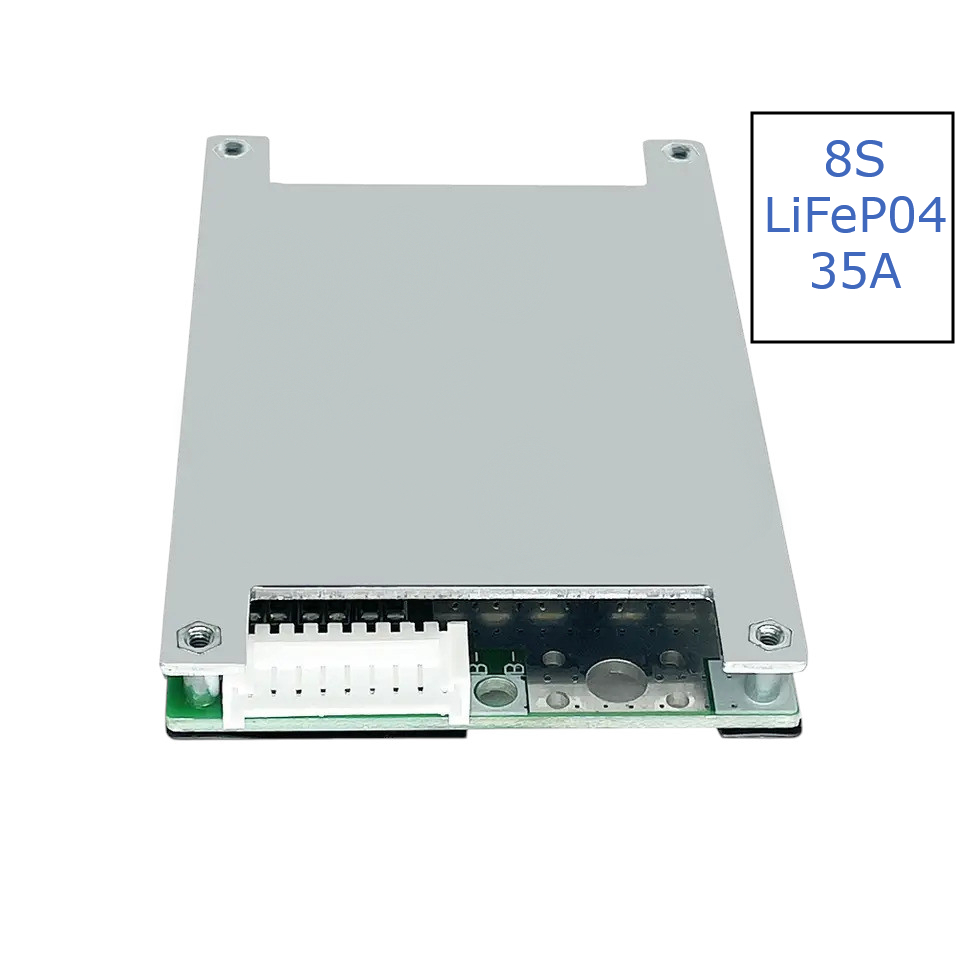

- Aluminum Heat Sink Cover
- Low Self-Consumption
Specifications
| Parameter | Specification |
|---|---|
| Size / Dimensions | 80 × 53 × 10 ± 1 mm |
| Specification Configuration | 8 strings of lithium iron (8S) with balanced port |
| Discharge Current | <35A |
| Overcharge Voltage | 3.65V |
| Over-Discharge Voltage | 2.35V |
| Charge Current | <15A |
| Weight | 38 g |
| Cell Type | LiFeP04 3.2V |
Applications
- Inverters
- Small UPS power supplies
- Low-power energy storage systems
Package Content

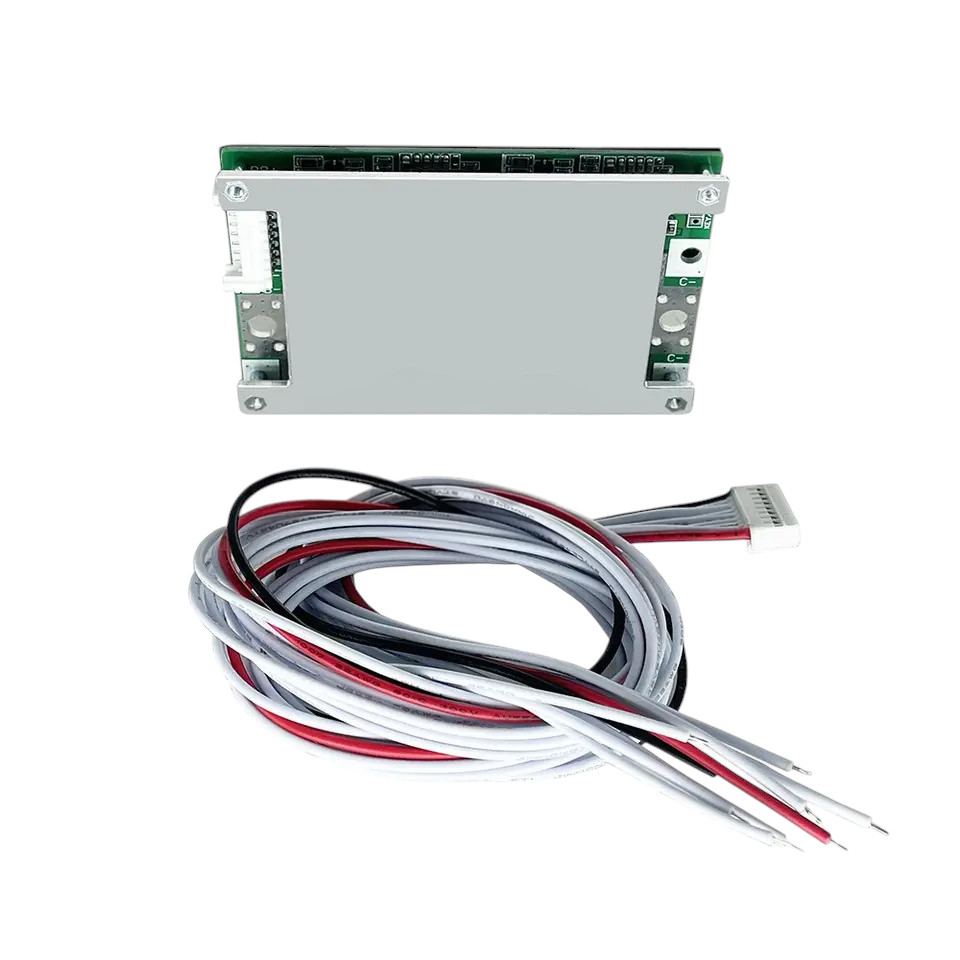

- 1 x LifePo4 Battery Charger Protection Module (BMS) 8S 35A 24V with Aluminum Heat Sink
- 1 x 9-Wire Cable
