Lithium-ion Battery Charger Protection Module (BMS) 13S 20A 48V with Aluminum Heat Sink

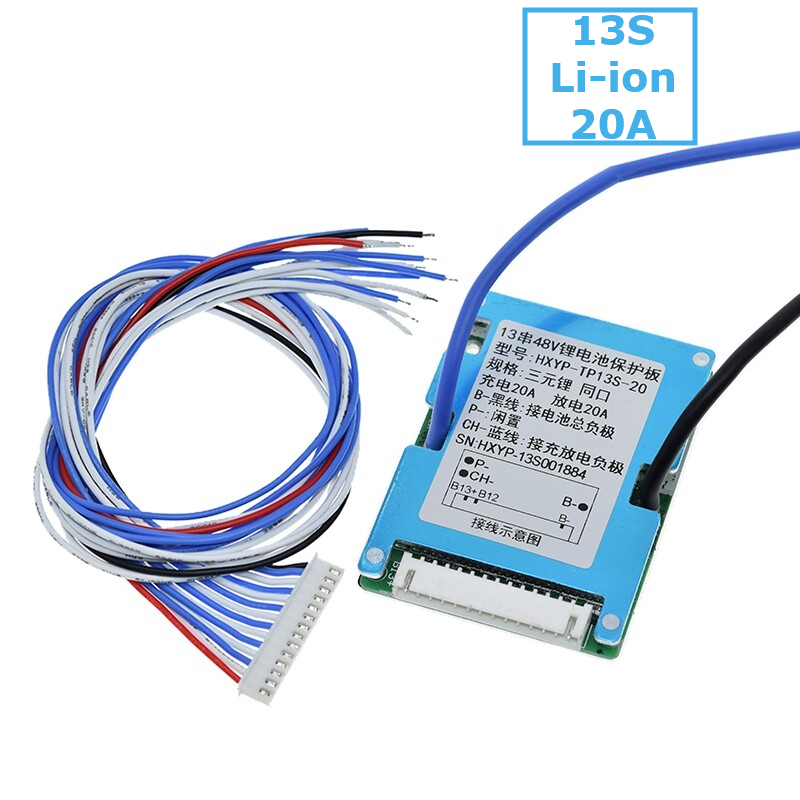

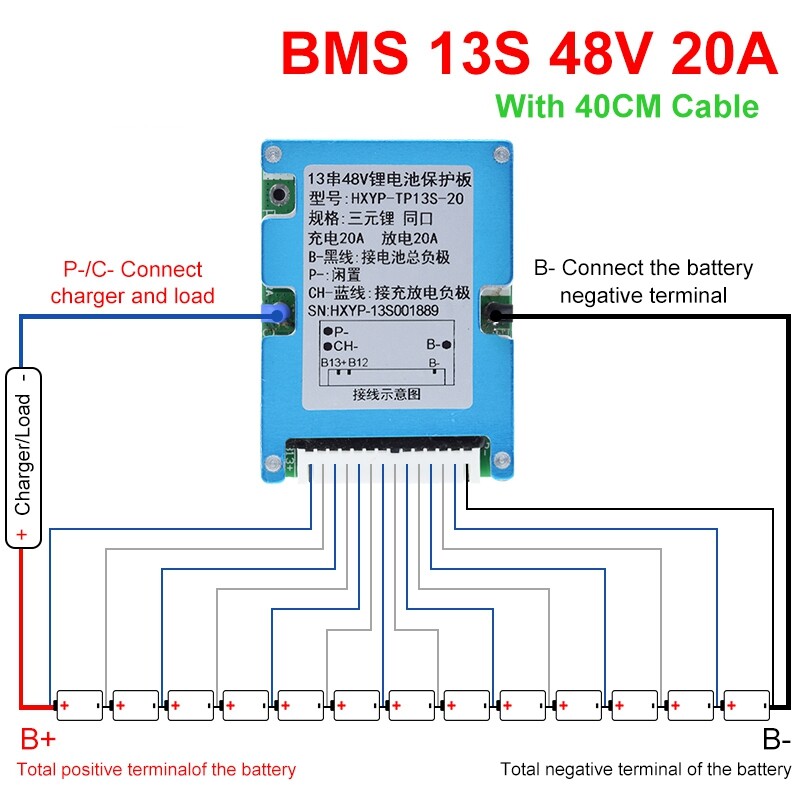

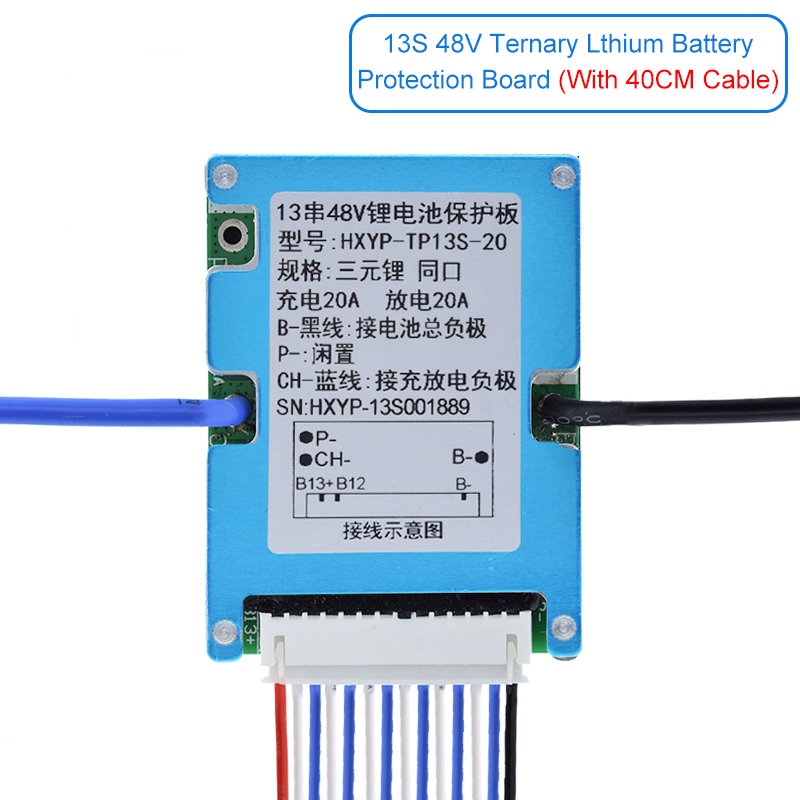

The HXYP-TP13S-20 is a 13S 48V Ternary Lithium Battery Protection Board (BMS) equipped with an integrated aluminum heat sink casing. It features a same-port (common port) configuration supporting 20A continuous charge and 20A continuous discharge currents. The module comes with a pre-attached blue charge/discharge lead, a black main negative lead, and a 40cm balance wiring cable.
Features
- 13S 48V Compatibility
- Same Port (Common Port) Design
- Aluminum Thermal Dissipation
- Pre-Wired Setup
- 20A Charge & Discharge
Specifications
| Parameter | Value |
|---|---|
| Model Number | HXYP-TP13S-20 |
| Series String Count | 13S |
| Nominal Voltage | 48V |
| Port Configuration | Same Port / Common Port |
| Continuous Charge Current | 20A |
| Continuous Discharge Current | 20A |

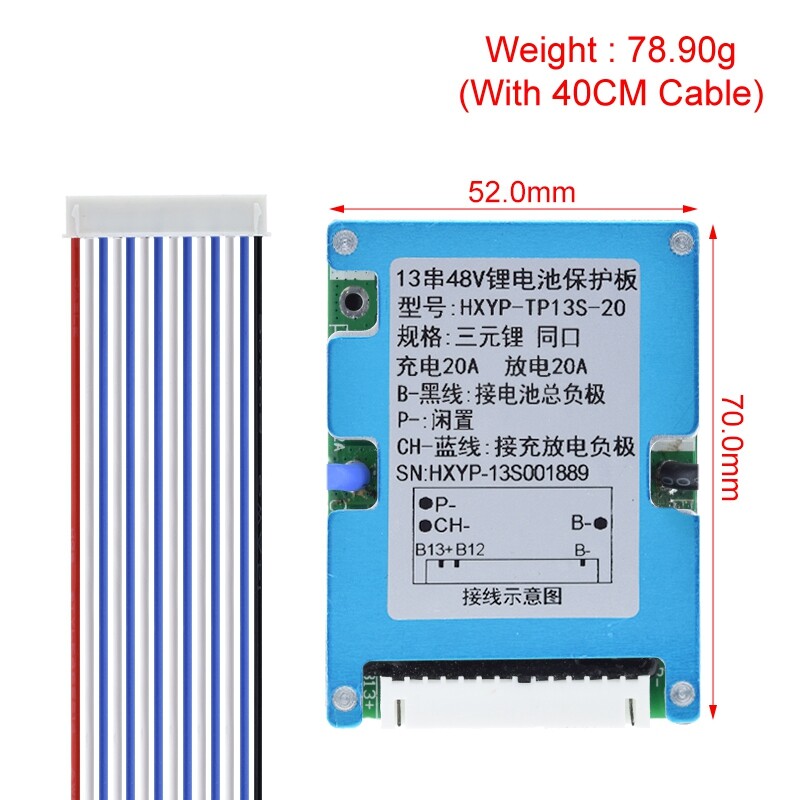

| Dimensions | 52.0 mm (W) × 70.0 mm (L) |
| Heat Dissipation | Aluminum Heat Sink |
Applications
- Electric Mobility
- Energy Storage Systems
- Custom Battery Packs
- Cordless Power Equipment
Package Content
- 1 × Lithium-ion Battery Charger Protection Module (BMS) 13S 20A 48V with Aluminum Heat Sink

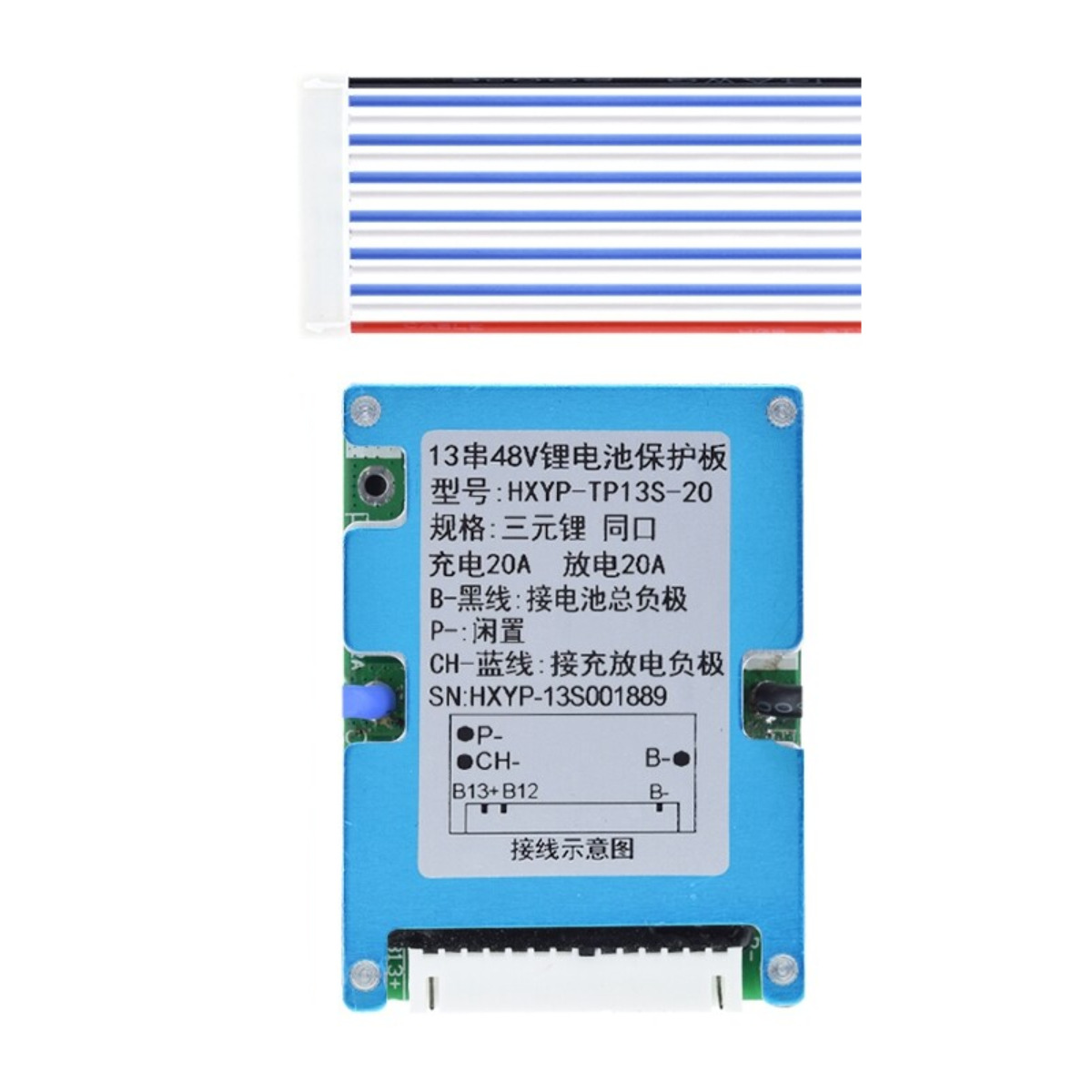

- 1 × 40 cm Balance Cable (14-pin)
