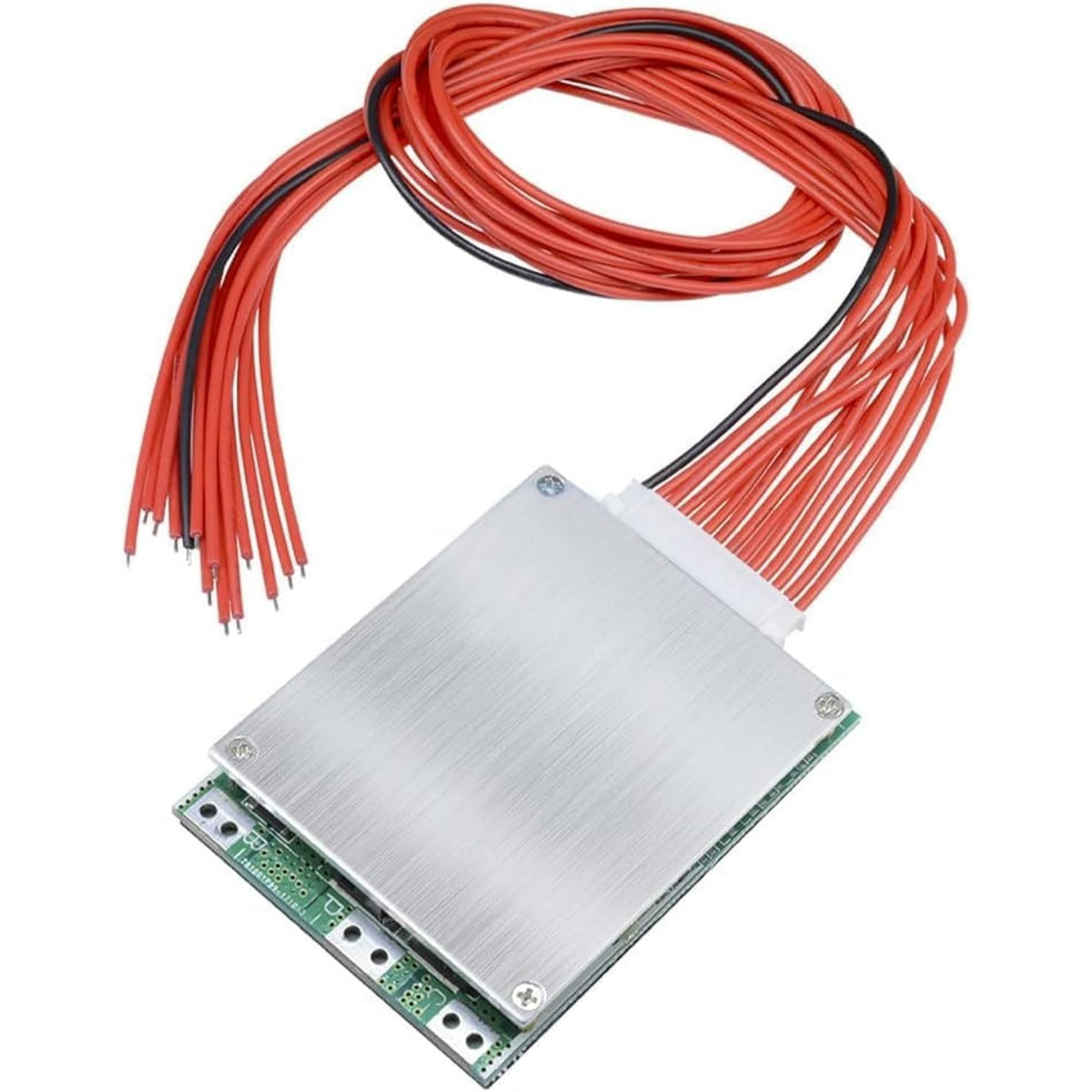

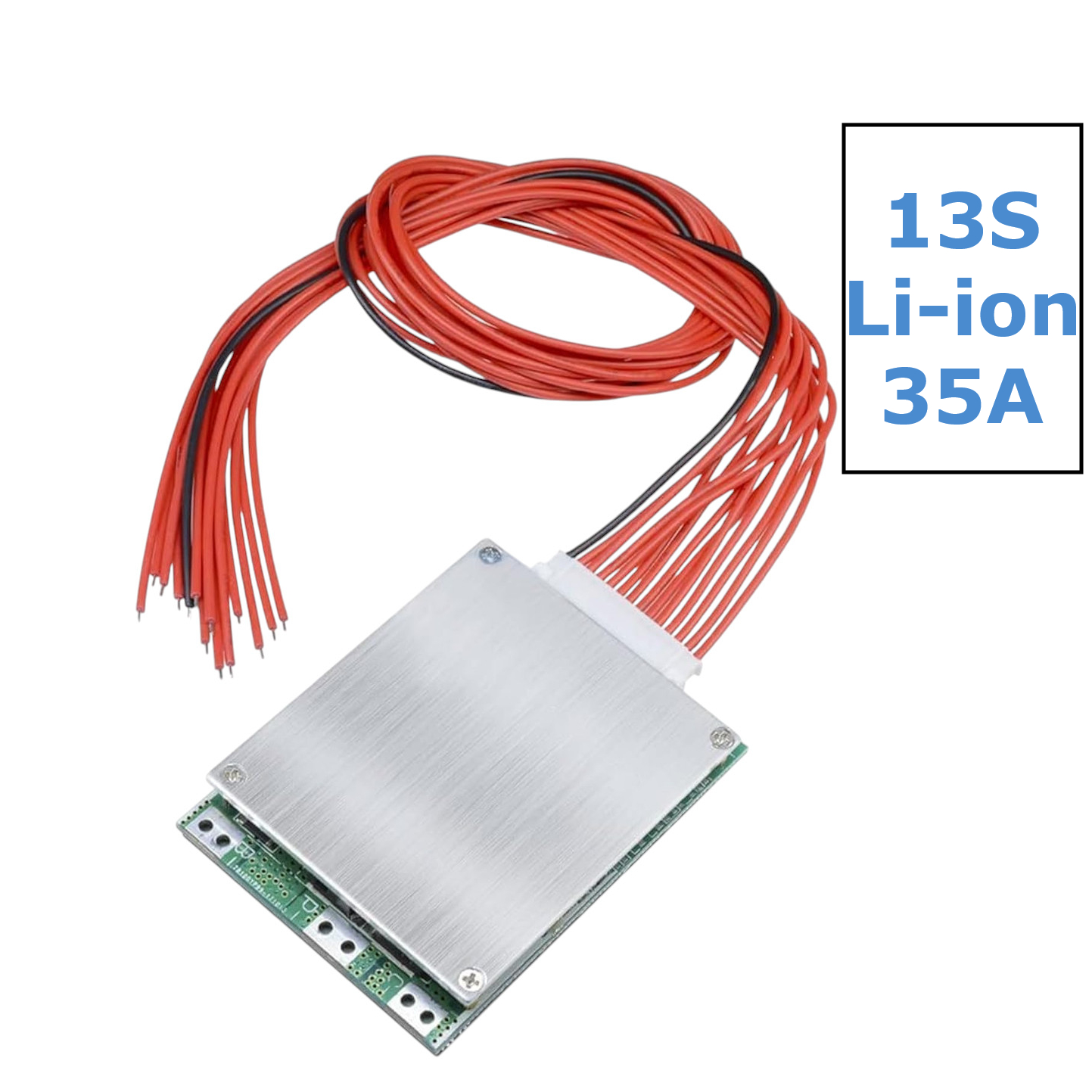

Lithium-ion Battery Charger Protection Module (BMS) 13S 35A 48V with Balance & Aluminum Heat Sink
The 13S 48V 35A Lithium Battery BMS Protection Module is designed to provide comprehensive management and protection for 48V lithium-ion battery packs. Featuring a split wiring configuration, this module ensures efficient energy distribution and enhanced safety. Built with a robust aluminum heat sink, it offers excellent heat dissipation to protect your components during sustained 35A high-current operations. It includes a multi-wire balancing cable harness to monitor and maintain individual cell strings, ensuring a long and healthy lifespan for your battery pack.
Features
- 13 Series (13S) Configuration

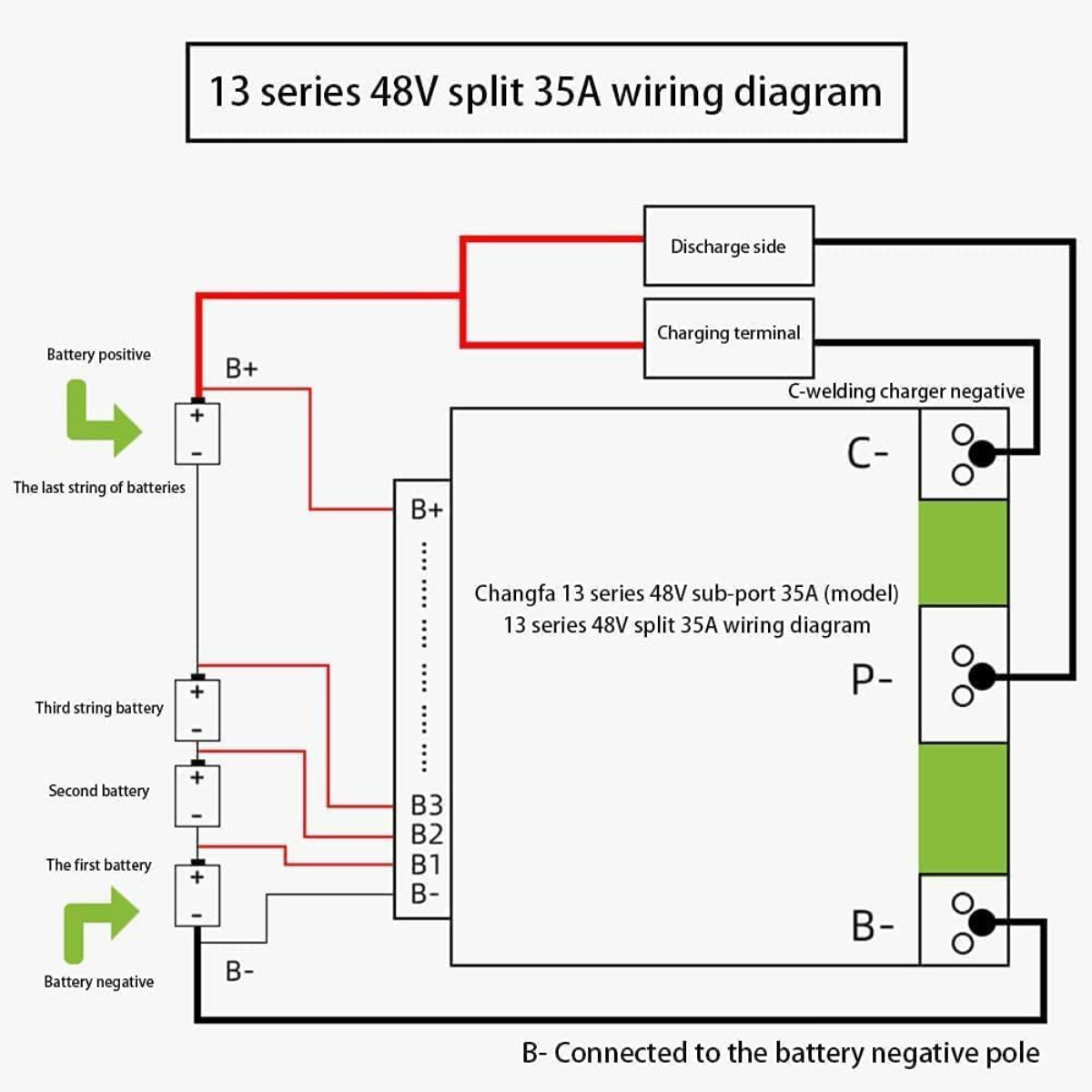

- Split-Port Design
- Integrated Aluminum Heat Sink
- Cell Balancing Support
- Heavy-Duty Connection Pads
Specifications
| Parameter | Specification |
|---|---|
| Size / Dimensions | 70 × 52 × 10 ± 1 mm |
| Configuration | 13S |
| Discharge Current | <35A |
| Overcharge Voltage | 4.25V |
| Over-Discharge Voltage | 2.75V |
| Charge Current | <5A |
| Weight | 40 g |
| Cable Length | 40 cm |
| Cell Type | Li-ion (NCM) |
Applications
- Electric Mobility
- Energy Storage
- Battery Pack Assembly
Package Content
