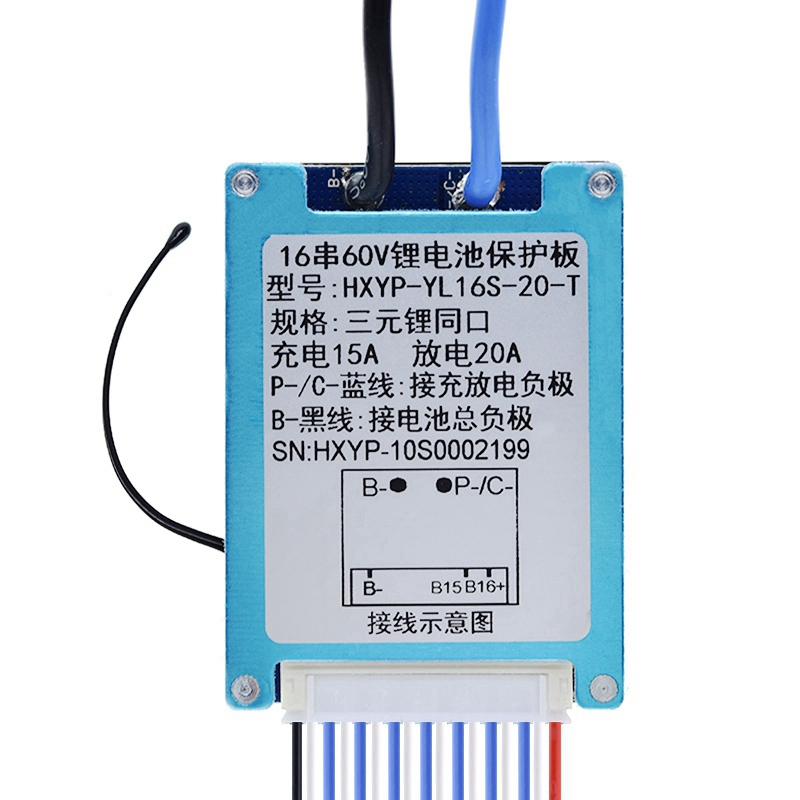

Lithium-ion Battery Charger Protection Module (BMS) 16S 20A 60V with Aluminum Heat Sink
The HXYP-YL16S-20-T is a 16S 60V Lithium-ion Battery Management System (BMS) designed for Ternary Lithium battery packs. Built with a common port (same port) configuration for charging and discharging, this module features an aluminum heat sink plate for thermal management, an integrated NTC temperature protection sensor head, and comes complete with a 40cm balance wiring.
Features
- Common Port (Same Port) Design
- Integrated Temperature Protection
- Aluminum Heat Sink
Specifications
| Parameter | Specification |
|---|---|
| Model Number | HXYP-YL16S-20-T |
| Cell Configuration | 16S (16 Series) |
| Nominal Voltage | 60V |
| Discharge Current | 20A |
| Charge Current | 15A |
| Port Configuration | Common Port / Same Port |
| Thermal Protection | Integrated NTC Temperature Protection Sensor Head |

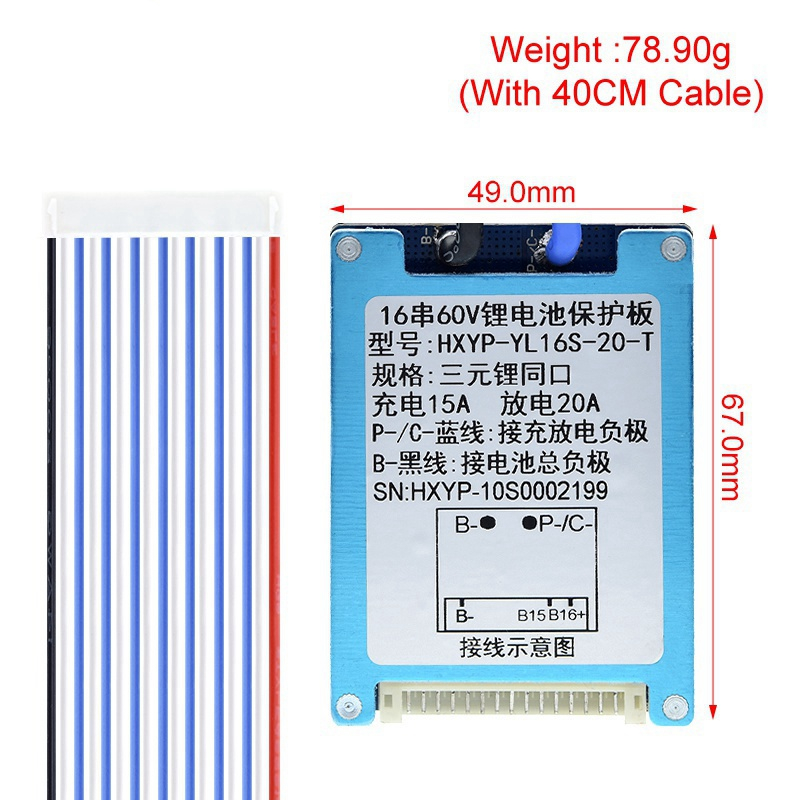

| Dimensions | 49.0 mm (Width) × 67.0 mm (Height) |
| Weight | 78.90 g |
| Included Cable Length | 40 cm |
Applications
- Electric Scooters & E-Bikes
- Light Electric Vehicles (LEVs)
- High-Voltage Power Tools
- Portable Power Stations
Package Content

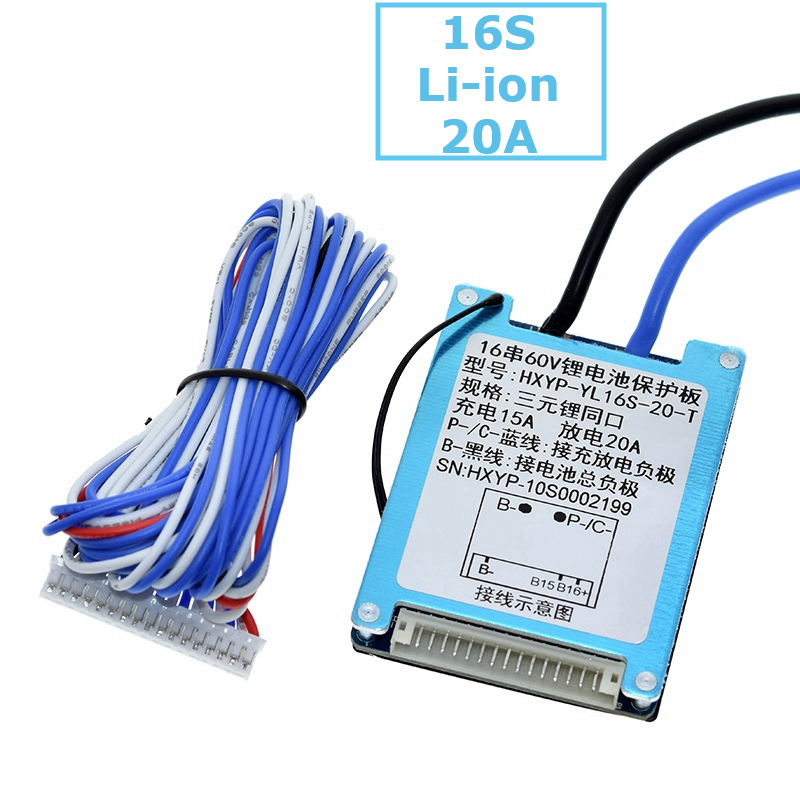

- 1× Lithium-ion Battery Charger Protection Module (BMS) 16S 20A 60V with Aluminum Heat Sink
- 1× 40-cm Multi-Pin Balance Cable
