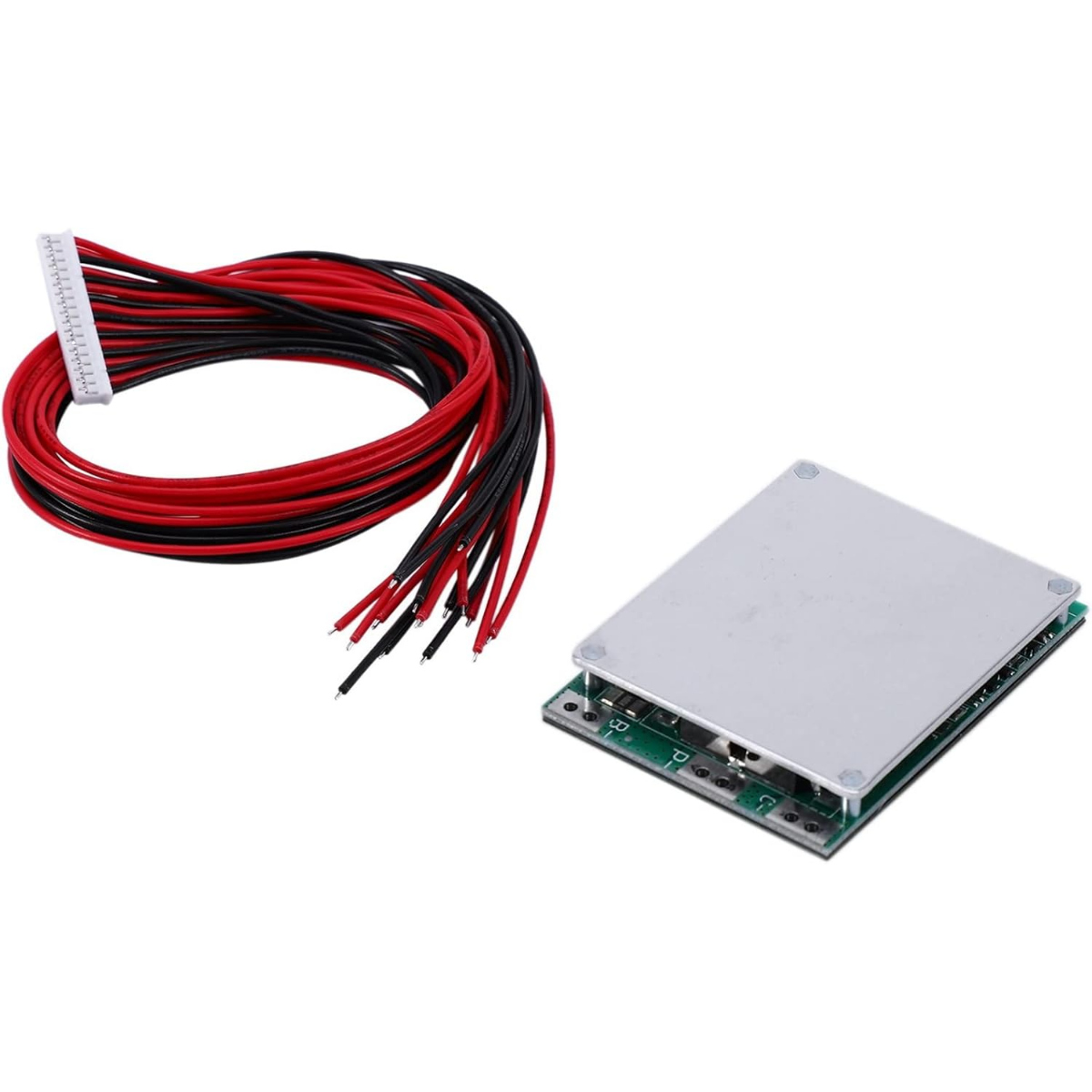

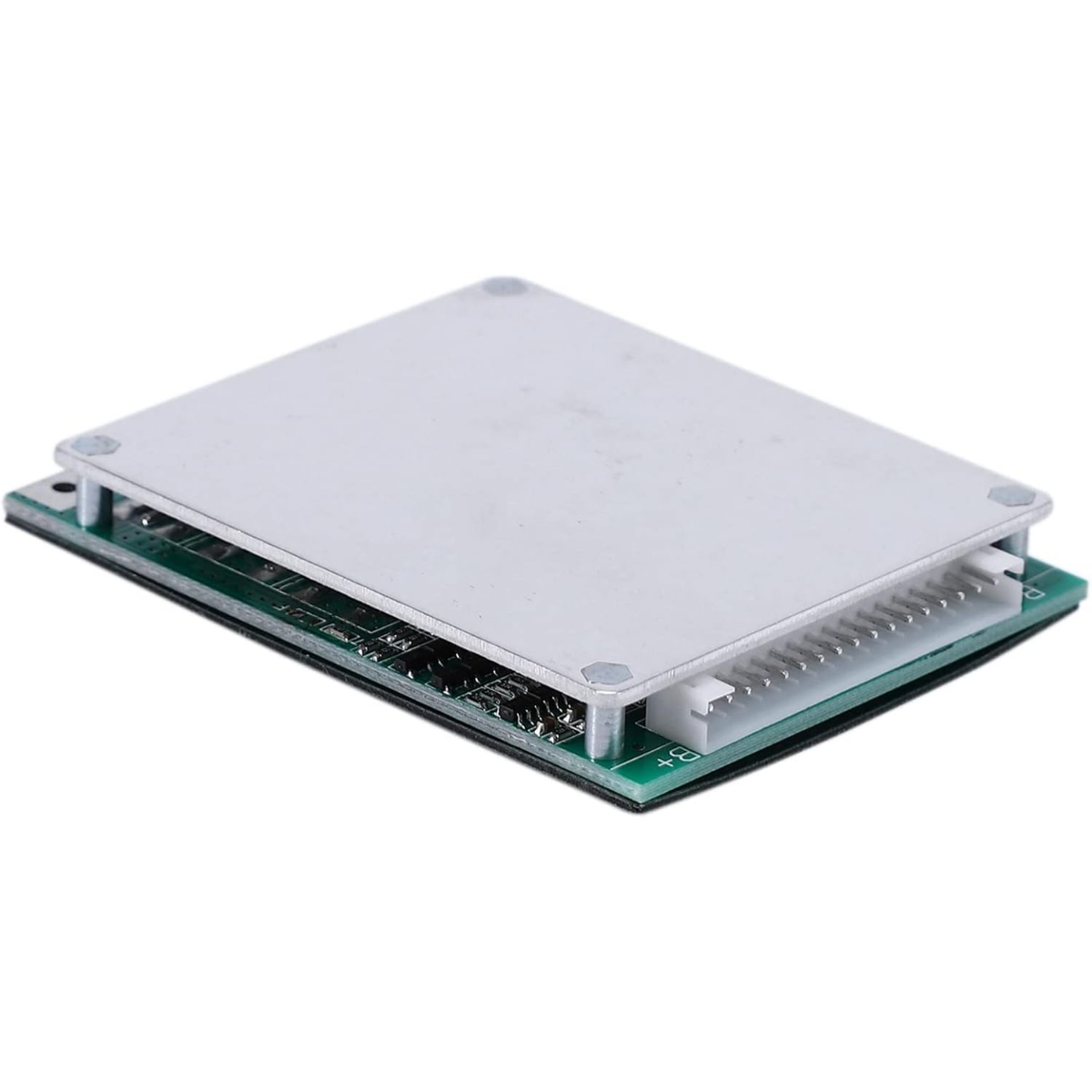

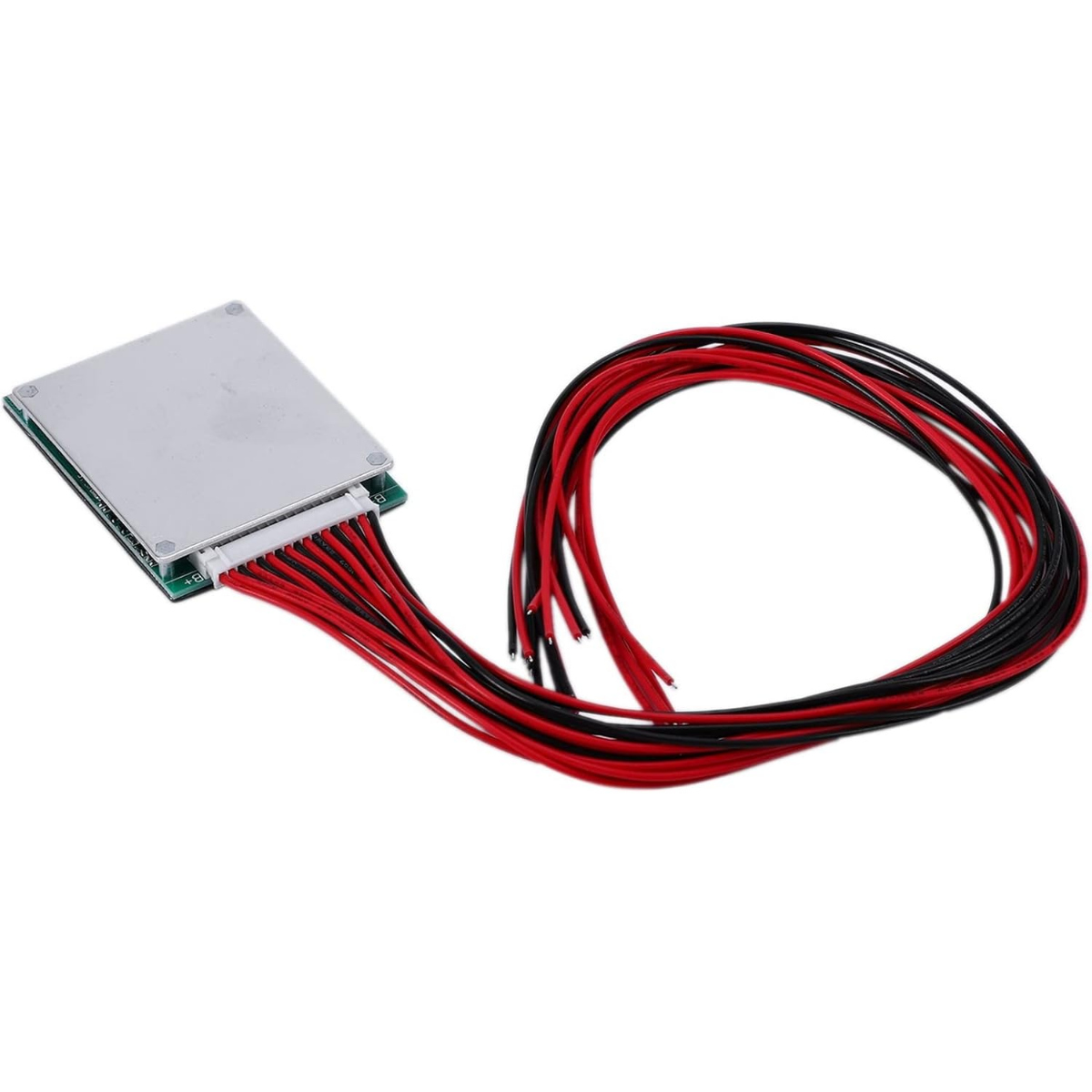

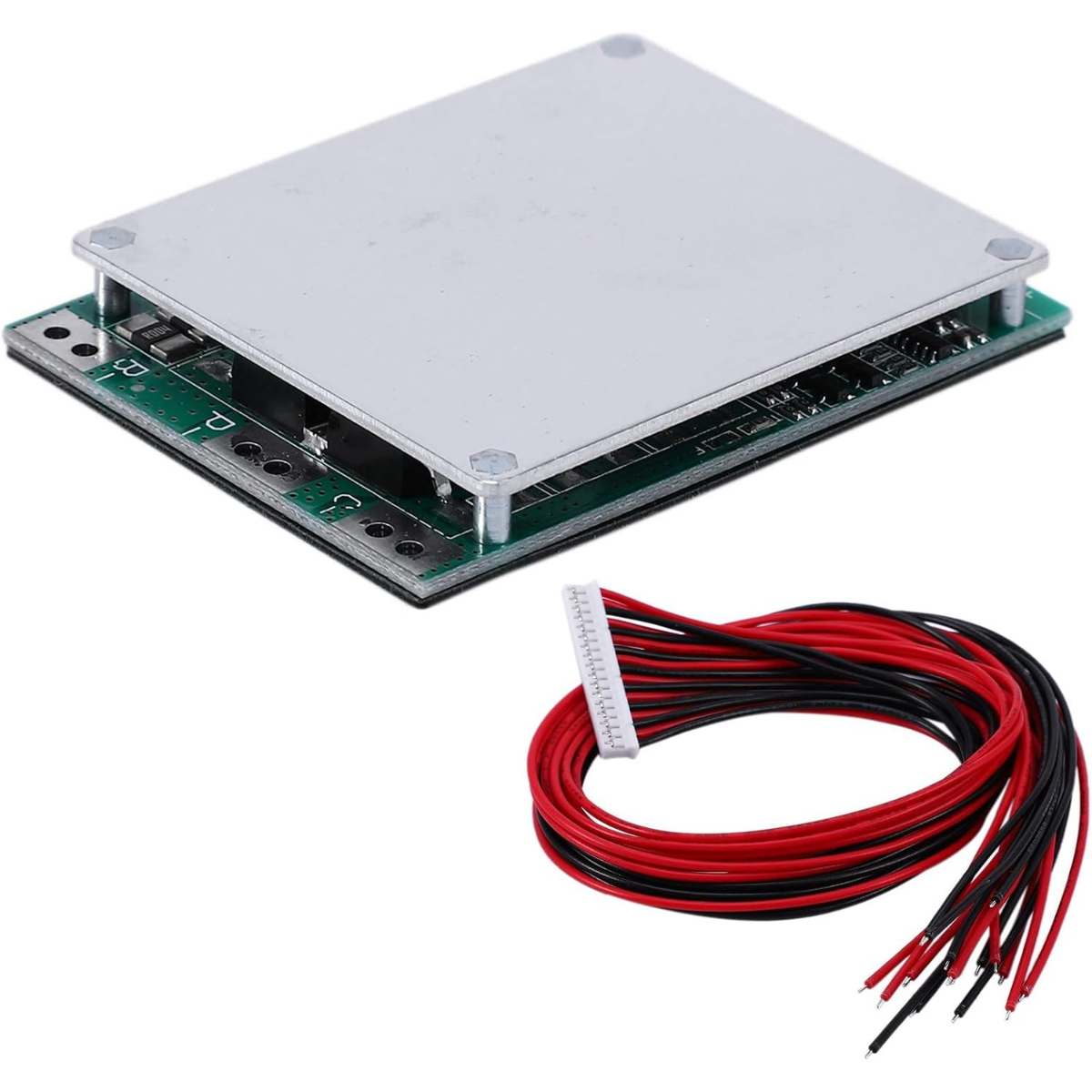

Lithium Battery Charger Protection Module (BMS) 16S 35A 60V with Aluminum Heat Sink
Protect, manage, and optimize multi-string lithium battery packs with this high-performance Split Port Lithium Battery Protection Board (BMS). Featuring an integrated aluminum heat sink for efficient passive cooling, this board is engineered for demanding charge and discharge workloads.
Features
- Split Port Architecture
- Integrated Balancing
- Integrated Aluminum Heat Sink
- Heavy-Duty Solder Terminals
Specifications
| Parameter | Specification |
|---|---|
| Size / Dimensions | 70 × 52 × 10 ± 1 mm |
| Configuration | 16S |
| Discharge Current | <35A |
| Overcharge Voltage | 4.25V |
| Over-Discharge Voltage | 2.75V |
| Charge Current | <5A |
| Weight | 40 g |
| Cable Length | 40 cm |
| Cell Type | Li-ion (NCM) |
Applications
- High-Efficiency Multi-String Custom Lithium Battery Build Outs
- E-Bikes, Utility Scooters, and Electric Mobility Vehicles
- Dedicated Solar Array Storage Batteries and Inverter Packs
- High-Performance Industrial DIY Power Projects
Package Content
