Lithium-ion Battery Charger Protection Module (BMS) 7S 25A 60V with Aluminum Heat Sink & Temperature Protection
The 7S 25A 10-MOS Lithium-ion Battery Protection Module (BMS) is designed for 7-series ternary lithium (Li-ion) battery packs. Featuring a compact design with an aluminum top heat sink plate and 10 power MOSFETs, this module supports up to 25A continuous operating current while managing thermal stability during operation. It comes equipped with cell balancing functionality, an external NTC temperature protection probe, and a pre-wired balance cable.
Features
- 10-MOS Architecture
- Cell Balancing
- Same-Port (Common Port) Wiring
- Temperature Sensor
- Aluminum Heat Sink
- Included Wire Cable
Specifications
| Series Configuration | 7S (7 Series) |
|---|---|
| Compatible Cell Type | Ternary Lithium / Li-ion |
| Continuous Current | 25 A |
| MOSFET Count | 10 MOS |
| Balance Current | 42 mA |

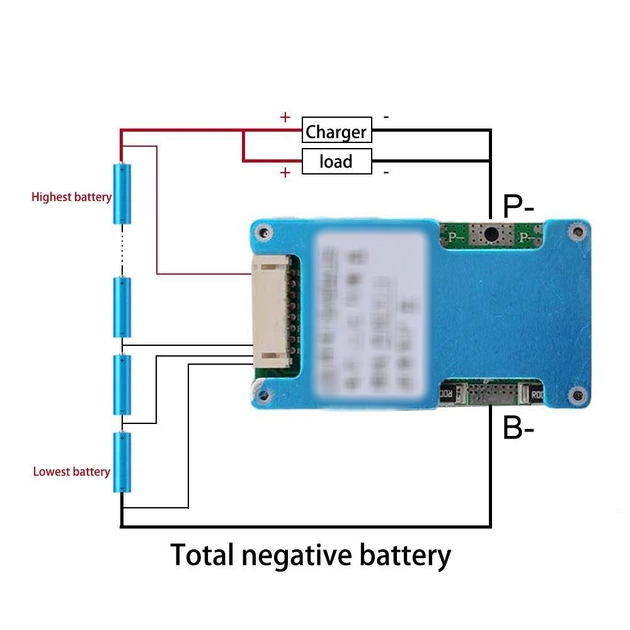

| Wiring Port Configuration | Same Port / Common Port |
| Temperature Protection | Yes (NTC Probe Included) |

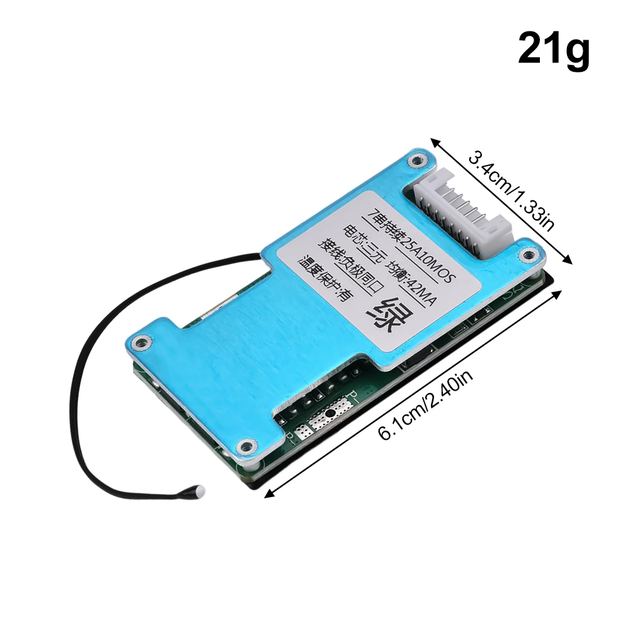

| Dimensions | 6.1 cm × 3.4 cm |
| Weight | 21 g |
Applications
- Electric Mobility
- Power Tools & Outdoor Equipment
- DIY Lithium Battery Packs
- Robotics & Portable Power
Package Content
- 1 × Lithium-ion Battery Charger Protection Module (BMS) 7S 25A 60V with Aluminum Heat Sink & Temperature Protection
- 1 × 8-Pin Balance Wiring Cable(8 wires)
