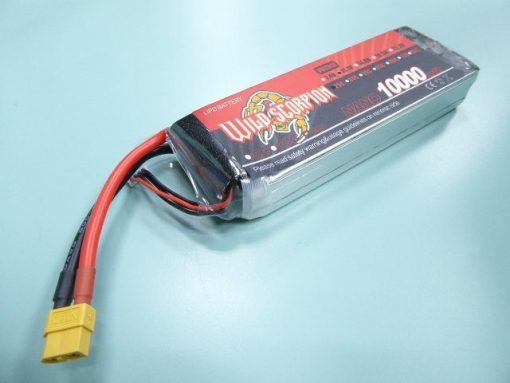

Lithium Polymer Battery 14.8V, 4S, 10000mAH , 25C
This 14.8V 10000mAh Lithium Polymer (Li-Po) battery is designed to deliver high energy density and reliable power for demanding applications. With a 4-cell (4S) configuration, it provides stable voltage output and is capable of delivering high discharge currents, making it ideal for devices that require both high capacity and high performance. Its lightweight and compact design make it a preferred choice over traditional battery types.
The 25C discharge rating ensures the battery can safely supply high current to motors and electronic systems without significant voltage drop. Lithium polymer technology also offers low self-discharge and high efficiency, ensuring longer usage time and better performance. This battery is widely used in hobby electronics, robotics, UAVs, and backup power systems where consistent and powerful energy delivery is essential.
Features:
- High energy density lithium polymer chemistry.
- Lightweight and compact design.
- High discharge capability.
- Stable voltage output.
- Rechargeable and long cycle life.
- Low self-discharge rate.
- Suitable for high-performance applications.
- Flexible pouch cell construction.
Specifications:
| Parameter | Value |
|---|---|
| Chemistry | Lithium Polymer (LiPo) |
| Nominal Voltage | 14.8 V (4S – 4 cells in series) |
| Capacity | 10000 mAh (10 Ah) |
| Continuous Discharge Rate | 25C (250 A max continuous) |
| Burst Discharge Rate | 35‑50C (for a few seconds, if specified) |
| Charge Rate (recommended) | 1C – 5C (10 A – 50 A, depending on pack) |
| Cell Voltage Range (each) | 3.0 V (min) – 4.2 V (max) |
| Total Voltage Range | 12.0 V – 16.8 V |
| Storage Voltage | 3.7‑3.8 V per cell (≈14.8 V total) |
| Connector Type (discharge) | XT60, XT90, EC5, or other (varies) |
| Balance Connector | JST‑XH (4S, 5‑pin) |
| Dimensions | Varies by brand – 150×50×30 mm |
| Weight | ≈ 700‑900 g |
Applications:
- Drones and UAVs.
- RC cars, planes, and boats.
- Robotics projects.
- Portable power systems.
- Electric tools and devices.
- Backup power applications.
Package Included:
- 1x Lithium Polymer Battery 14.8V, 4S, 10000mAH , 25C.
