LM2576T-5.0 Buck 5V 3A 40V DC-DC Converters DIP IC TO-220-5
LM2576T-5.0 is a step-down switching regulator providing a fixed 5V output at up to 3A, ideal for efficient power conversion in electronic applications.
45.00 EGP
In stockSKU 3496300122325
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
LM2576T-5.0 Buck 5V 3A 40V DC-DC Converters DIP IC TO-220-5
The LM2576T-5.0 is a monolithic switching regulator IC designed for efficient DC-DC step-down (buck) voltage conversion. It provides a fixed 5V output with up to 3A load current, making it suitable for powering microcontrollers, embedded systems, and other digital circuits. The device integrates the main switching regulator functions in a single chip, simplifying power supply design and reducing the number of external components required.
Operating with a wide input voltage range up to 40V, the LM2576 series offers improved efficiency compared to traditional linear regulators. It features internal frequency compensation, a fixed switching frequency oscillator, and built-in protection functions such as thermal shutdown and current limiting. Its TO-220-5 through-hole package allows easy mounting and good heat dissipation, making it widely used in industrial electronics, embedded systems, and power supply modules.
Features:
- Fixed 5V output voltage.
- 3A output current capability.
- Wide input voltage range: 4V to 40V.
- High efficiency up to 77%.
- Requires only four external components.
- 52kHz fixed frequency operation.
- TTL shutdown capability.
- Low power standby mode.
- Thermal shutdown and current limit protection.
Specification:
| Category | Details |
|---|---|
| Model Number | LM2576T-5.0 |
| Voltage Regulators – DC DC Switching Regulators | Step-Down (Buck) Converter |
| Part Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage – Input (Min) | 4V |
| Voltage – Input (Max) | 40V |
| Voltage – Output (Min/Fixed) | 5V |
| Current – Output | 3A |
| Frequency – Switching | 52kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Through Hole |

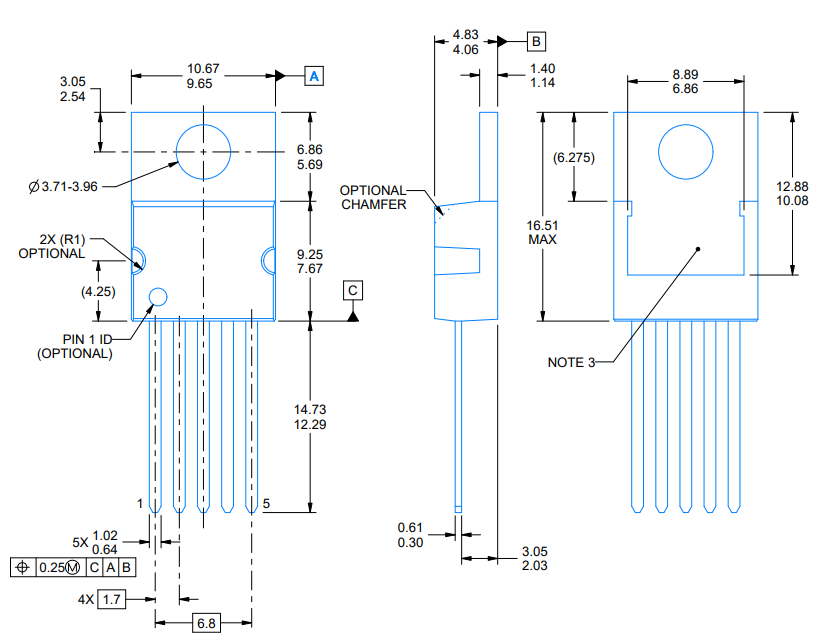

| Package / Case | TO-220-5 |
Pinout:
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | VIN | Supply input (40V max). Requires bypass capacitor to GND. |
| 2 | OUTPUT | Switching output. Internal MOSFET connects to inductor and diode. |
| 3 | GND | Ground reference. |
| 4 | FB | Feedback (fixed 5V version). Connect directly to output for regulation. |
| 5 | ON/OFF | Enable. Logic low enables operation; logic high shuts down. Do not float. |

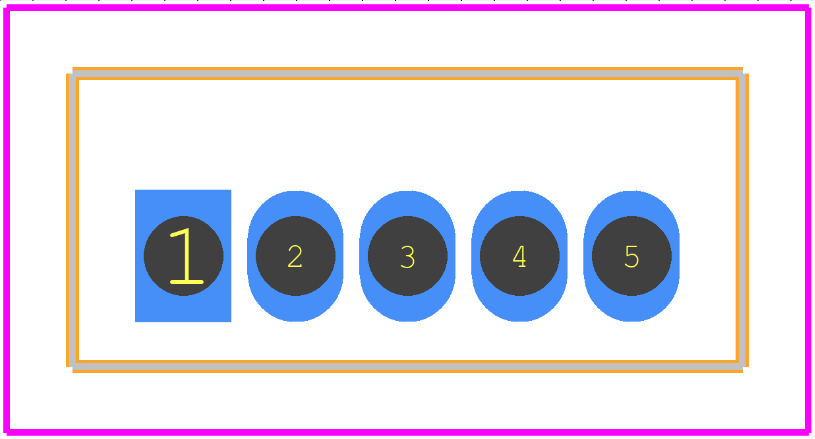

Footprint:
Applications:
- High-efficiency step-down voltage regulation.
- Pre-regulator for linear regulators.
- On-card switching regulators.
- Power supplies for microcontrollers and digital circuits.
- Battery chargers.
- Distributed power systems.
Package Include:
- 1x LM2576T-5.0 Buck 5V 3A 40V DC-DC Converters DIP IC TO-220-5.
Datasheet:
