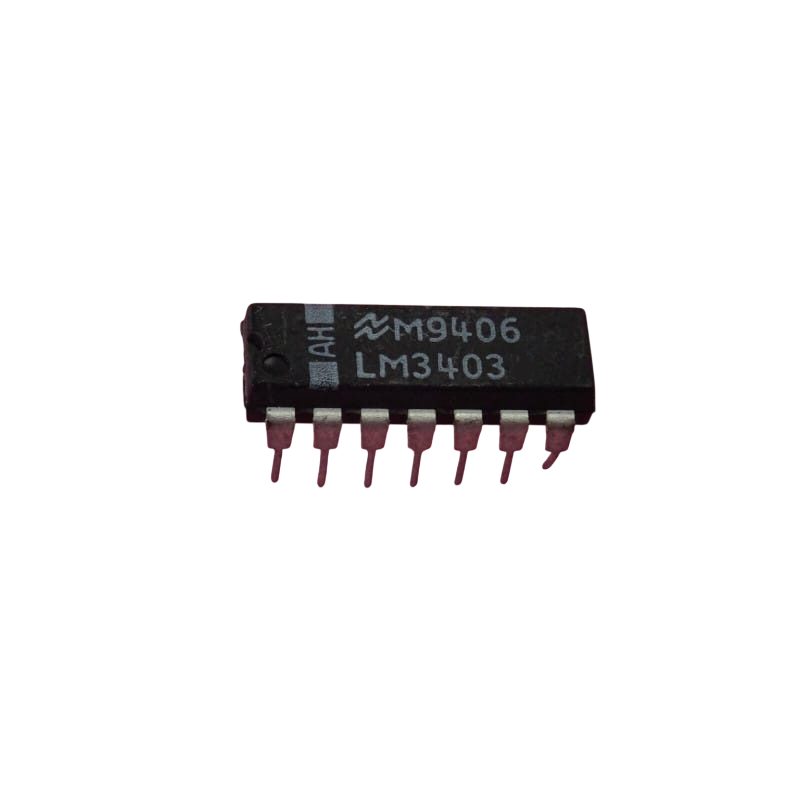

LM3403 Quad Operational Amplifier 3V 2.8mA IC DIP-14
The LM3403 is a monolithic quad operational amplifier that integrates four independent high-gain operational amplifiers within a single package. Each amplifier is internally frequency compensated, simplifying circuit design while providing stable operation across a wide range of analog applications. The device is designed to operate from either a single supply or dual power supplies, making it suitable for both industrial and general-purpose electronic systems.
A key advantage of the LM3403 is its input common-mode range, which includes the negative supply rail, allowing direct interfacing with ground-referenced signals without requiring additional biasing circuitry. The device features a Class-AB output stage for reduced crossover distortion and short-circuit protected outputs, making it useful in active filters, oscillators, instrumentation circuits, signal conditioning systems, and voltage reference applications.
Features:
- Four independent operational amplifiers in one package.
- Internally frequency compensated for stable operation.
- Operates from single or dual power supplies.
- Input common-mode voltage range includes ground.
- Output voltage swing extends to ground.
- Class-AB output stage.
- High open-loop voltage gain.
- Short-circuit protected outputs
- Suitable for analog signal processing.
- Compatible with general-purpose op-amp applications.
- Low external component requirement.
- Good channel isolation between amplifiers.
Specifications:
| Parameter | Value |
|---|---|
| Device Type | Quad Operational Amplifier |
| Number of Amplifiers | 4 |
| Supply Voltage (Single Supply) | 3V to 36V |
| Supply Voltage (Dual Supply) | ±1.5V to ±18V |
| Typical Supply Current | 2.8mA |
| Input Offset Voltage | 2mV |
| Input Bias Current | 200nA |
| Input Impedance | 0.3MΩ |
| Open Loop Gain | 200 V/mV |
| Bandwidth | 1MHz |
| Slew Rate | 0.6V/µs |
| Output Short Circuit Current | 30mA per amplifier |
| Operating Temperature (LM3303) | -40°C to +85°C |
| Package Options | DIP-14, SO-14 |
| Output Stage | Class-AB |
Pinout:
| Pin Number | Signal Name |
|---|---|
| 1 | OUT A |
| 2 | -IN A |
| 3 | +IN A |
| 4 | V+ |
| 5 | +IN B |
| 6 | -IN B |
| 7 | OUT B |
| 8 | OUT C |
| 9 | -IN C |
| 10 | +IN B |
| 11 | V- |
| 12 | +IN D |
| 13 | -IN B |
| 14 | OUT D |
Applications:
- Active filters.
- Voltage controlled oscillators (VCO).
- Signal conditioning circuits.
- Audio preamplifiers.
- Comparator circuits.
- Function generators.
- Voltage reference circuits.
- Sensor interface circuits.
- Instrumentation amplifiers.
- Industrial control systems.
- Data acquisition systems.
- General-purpose analog electronics.
Package Included:
- 1x LM3403 Quad Operational Amplifier 3V 2.8mA IC DIP-14.
