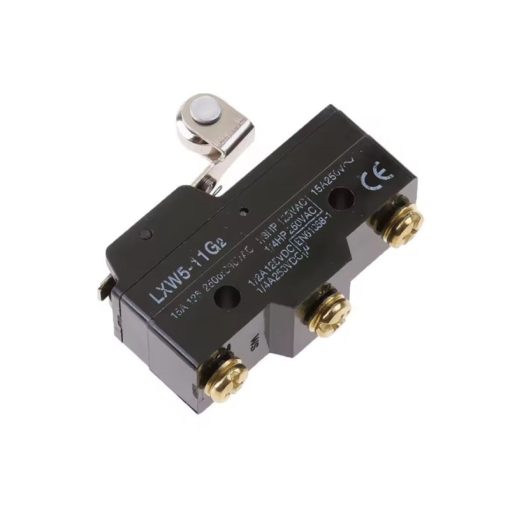

LXW5-11G2 Limit Switch with Panel Mount 15A 250VAC
The LXW5-11G2 is a panel-mounted micro limit switch designed for precise position sensing in mechanical systems. It features a short roller hinge lever actuator, suitable for applications requiring accurate movement detection. The switch operates with a single-pole double-throw (SPDT) contact configuration, offering both normally open (NO) and normally closed (NC) contacts.
Constructed with durable materials, the LXW5-11G2 ensures reliable performance in various industrial environments. The switch is designed to withstand mechanical stress and environmental factors, providing longevity and consistent operation.
This limit switch is equipped with screw terminals for secure electrical connections. Its panel-mount design allows for easy integration into control panels, making it a versatile choice for industrial automation and machinery applications.
Features:
- SPDT contact configuration supporting normally open and normally closed operation.
- Short roller hinge lever actuator for smooth and accurate triggering.
- Panel-mount design for easy installation in control systems.
- Durable construction suitable for industrial environments.
- Snap-action switching for quick and reliable response.
- Designed for repeated mechanical operation.
- Secure screw terminal connections for stable wiring.
- Reliable performance in automation and machinery systems.
Specifications:
| Parameter | Value |
|---|---|
| Model: | LXW5-11G2 |
| Switch Type: | Micro Limit Switch |
| Contact Configuration: | SPDT (1NO + 1NC) |
| Rated Voltage: | Up to 380VAC / 220VDC |
| Rated Current: | 15A |
| Thermal Current: | 10A |
| Actuator Type: | Short Roller Hinge Lever |
| Mounting Type: | Panel Mount |
| Protection Rating: | IP62 |
| Contact Resistance: | ≤30mΩ |
| Insulation Resistance: | ≥100MΩ at 500VDC |
| Dielectric Strength: | 1000VAC / 2000VAC |
| Operating Temperature: | -25°C to +85°C |
Applications:
- Industrial Automation.
- Control Circuits.
- Mechanical Interlocking.
- Position Detection in Machinery.
- Safety Interlock Systems.
Package Contents:
- 1x LXW5-11G2 Limit Switch with Panel Mount 15A 250VAC
