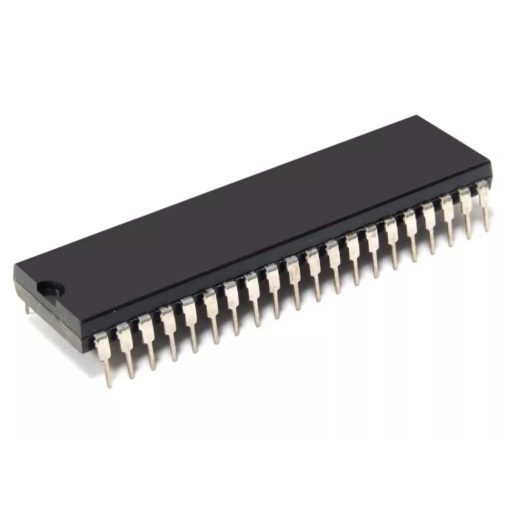

MAB 8031AH-12P 8-bit Single Chip Microcontroller DIP-40 IC
The MAB 8031AH-12P is a high-performance, 8-bit microcontroller from Philips Semiconductors. It is based on N-channel silicon-gate MOS technology and is part of the MAB8031AH family. This model, marked with the ‘A’ suffix, is a ROM-less version, meaning it does not have built-in program memory. It supports up to 64KB of external program memory and 64KB of external data memory using standard TTL-compatible memory chips. The ’12P’ indicates it operates at a frequency of 12MHz and comes in a plastic Dual In-Line Package (DIP-40). The microcontroller operates within a temperature range of 0°C to +70°C.
Features:
- High-performance, ROM-less 8-bit microcontroller.
- Industry-standard 8051 architecture.
- Operating frequency of 12MHz (as per title designation).
- On-chip 128×8 RAM.
- 32 I/O lines across four 8-bit ports.
- Two 16-bit timer/event counters.
- High-performance full-duplex serial channel.
Specifications:
| Parameter | Value |
|---|---|
| Operating Frequency (F_MAX) | 12MHz |
| Program Memory | ROM-less (External up to 64k bytes) |
| Data Memory (RAM) | 128×8 |
| Supply Voltage (V_CC) (Nominal) | 5V ±10% |
| DC Supply Voltage (V_CC) (Max) | +7V |
| Operating Temperature Range (T_A) | 0°C to +70°C |
| Total I/O Lines | 32 |
| Timer/Counters | Two 16-bit |
| Instruction Execution Time (Most) | 1μs (at 12MHz clock) |
| Power Dissipation (P_D) (Max) | 1.0W |
| Power Supply Current (I_CC) (Max) | 125mA (at 0°C to +70°C) |
Applications:
- Cost-effective embedded control systems requiring large program memory.
- Multi-processor communication systems.
- I/O expansion using the serial port.
- Motor control and industrial automation.
- General-purpose DIP-40 prototyping and development boards.
Package Include:
1x MAB 8031AH-12P 8-bit Single Chip Microcontroller DIP-40 IC.
