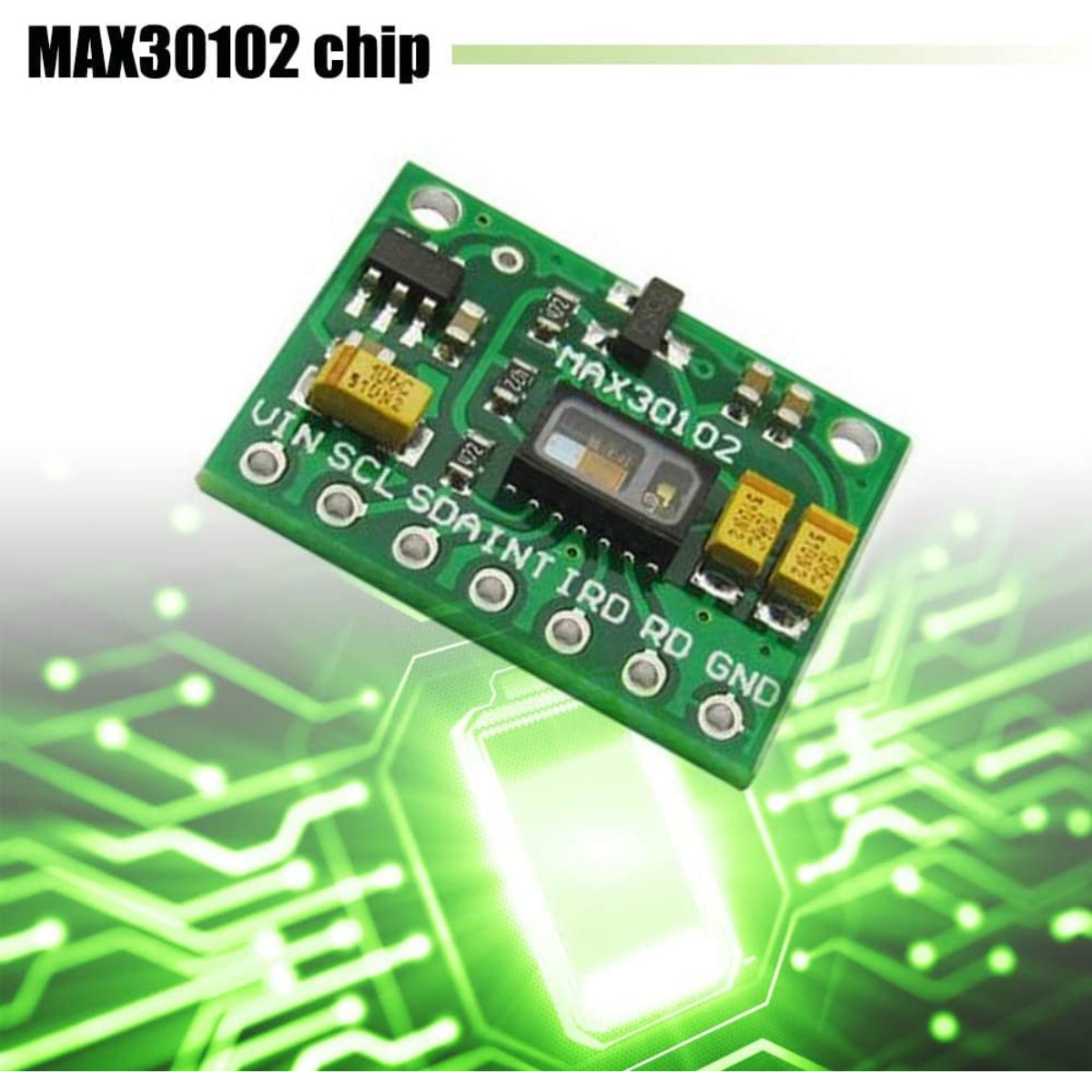

MAX30102 Heart Rate and Pulse Oximeter Sensor
The MAX30102 is an integrated, high-sensitivity pulse oximetry and heart-rate monitor module perfect for wearable health and fitness projects. This compact module combines internal LEDs, photodetectors, optical elements, and low-noise electronics with advanced ambient light rejection. By offering a complete system solution, it significantly eases the design-in process for mobile devices, smartphones, and tablets.
Features
- Complete LED Reflective Solution
- Ultra-Low Power Operation
- Power-Saving Flexibility
- Ultra-Low Shutdown Current
- Robust Performance
- Fast Data Output
- Robust Packaging
Specifications
| Parameter | Specification |
|---|---|
| Operating Voltage (VDD) | 1.8V |
| LED Supply Voltage (VLED+) | 3.3V |
| Communication Interface | I²C-Compatible |
| Operating Temperature Range | -40°C to +85°C |
| Shutdown Current (Typical) | 0.7 µA |
Applications
- Wearable Devices
- Fitness Assistant Devices
- Smartphones and Tablets

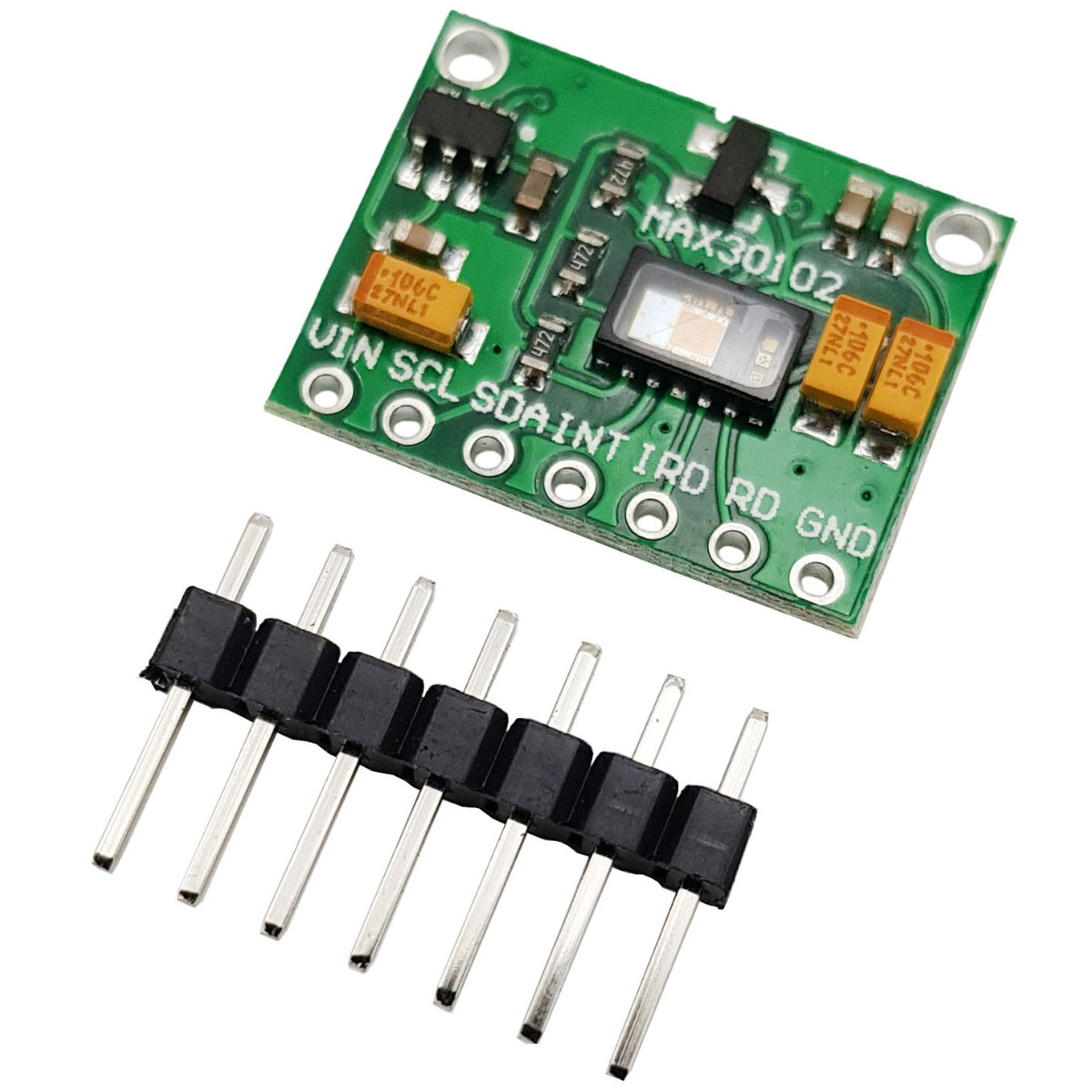

Package Content
