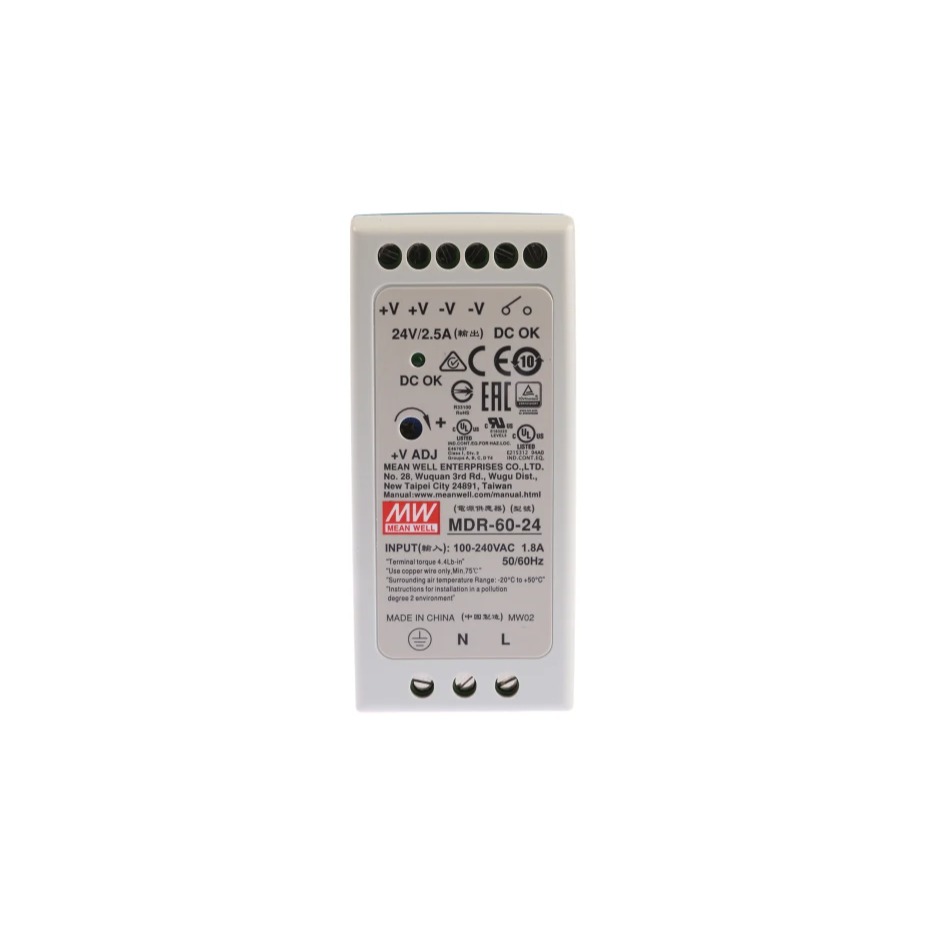

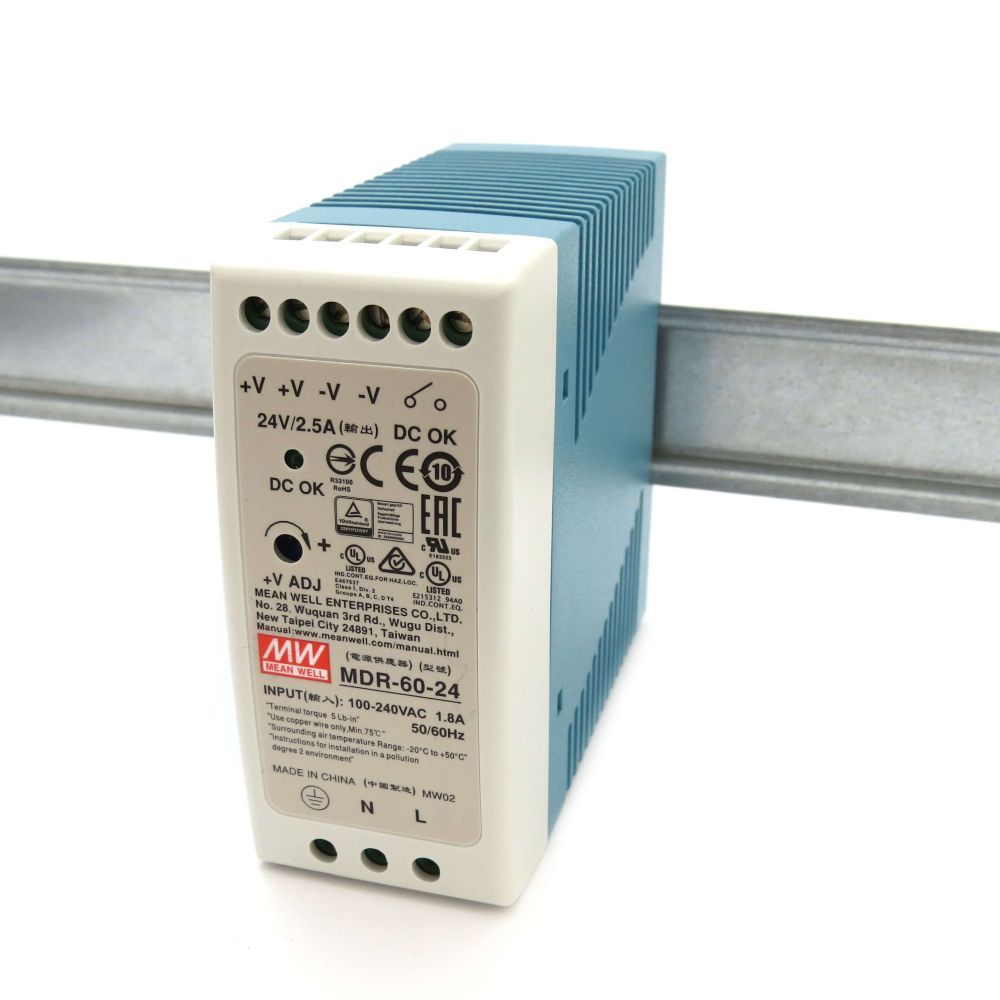

MDR-60-24 AC/DC DIN Rail Power Supply 24V, 2.5A, 60W
The MDR-60-24 AC/DC DIN Rail Power Supply 24V 2.5A 60W is a single-output industrial switching power supply from the MEAN WELL MDR-60 series. It is designed to convert AC mains power into a regulated 24VDC output for industrial automation systems, control panels, machinery, instrumentation, and other electronic equipment requiring a stable DC power source.
Features:
- Single-output AC/DC DIN rail power supply.
- Provides a regulated 24VDC output.
- Rated output current of 2.5A.
- Rated output power of 60W.
- 100–240VAC rated input.
- 50/60Hz input frequency.
Specifications:
| Parameter | Value |
|---|---|
| Manufacturer | MEAN WELL |
| Series | MDR-60 |
| Model Number | MDR-60-24 |
| Product Type | AC/DC DIN Rail Power Supply |
| Output Type | Single Output |
| Rated Output Voltage | 24VDC |
| Rated Output Current | 2.5A |
| Rated Output Power | 60W |
| Output Voltage Adjustment Range | 24–30VDC |
| Rated Input Voltage | 100–240VAC |
| Operating Input Voltage Range | 85–264VAC / 120–370VDC |
| Input Frequency | 50/60Hz |
| Typical AC Input Current | 1.8A/115VAC, 1A/230VAC |
| Typical Efficiency | 87% |
| Ripple and Noise | 150mVp-p |
| Voltage Tolerance | ±1.0% |
| Line Regulation | ±1.0% |
| Load Regulation | ±1.0% |
| Overload Protection | 105–150% Rated Output Power |
| Over-Voltage Protection | 31.2–36V |
| Cooling Method | Free-Air Convection |
| DC OK Signal | Relay Contact |
| DC OK Contact Rating | 30V/1A Resistive |
| Operating Temperature | -20 to +70°C |
| Working Humidity | 20–90% RH, Non-Condensing |
| Storage Temperature | -40 to +85°C |
| Storage Humidity | 10–95% RH |
| DIN Rail Type | TS35/7.5 or TS35/15 |

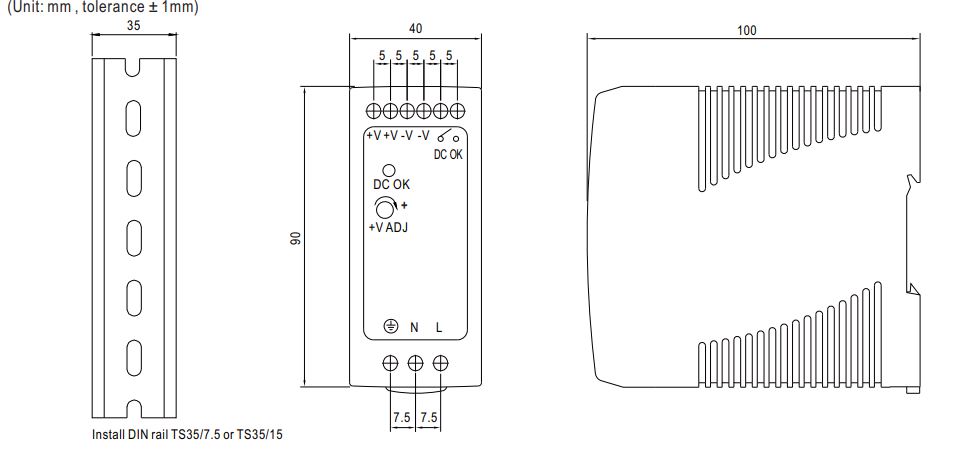

| Dimensions | 40x90x100mm (W×H×D) |
| Mounting Type | DIN Rail |
| No-Load Power Consumption | <1W |
Applications:
- Industrial automation control panels.
- PLC control systems.
- Factory automation equipment.
- Machinery control systems.
- Industrial instrumentation.
- Building automation systems.
- Electrical control cabinets.
- Sensors and control devices requiring 24VDC.
- Relay and contactor control systems.
- Electronic equipment requiring a regulated 24VDC supply.
Package Include:
1x MDR-60-24 AC/DC DIN Rail Power Supply 24V, 2.5A, 60W
