Features
Highest Performance/Size Ratio
Innovative and efficient engineering designs enable the TM 40 Series to push the performance envelope in a lightweight, compact size.
Performs Quieter
Optimized head, chamber, and flow path reduce noise without compromising performance.
Uncontaminated flow
No contamination of the media due to oil-free operation
Little vibration
Because of leading-edge technologies, top-quality bearings, superior brushless motor
High level of gas tightness
Thanks to stress-optimized structured diaphragm, newly-designed valves, and sealing systems, precise placement of the pump head
Extreme chemical resistance
The use of chemically resistant materials is optional such as PTFE FKM or other, material combinations for the parts which allows the corrosive gas to be pumped.
Specifications:
- Motor Type: Brush DC motor
- Max flow rate: 11L/min
- Max vacuum: 70Kpa
- Max Pressure: 220Kpa
- Voltage: 12V
- No-load Current: 420mA
- Life Time:1000 Hours
Applications:
- Vacuum packaging Vacuum preservation
- Industrial pressure and vacuum applications
- Portable Analytical Instruments
- Medical Diagnostic Equipment
- Air Quality Sampling Monitors
- Respiration Monitors
- Gas or Odor Leak Detectors

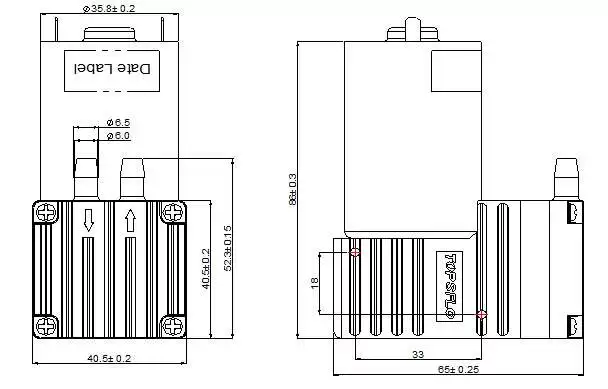

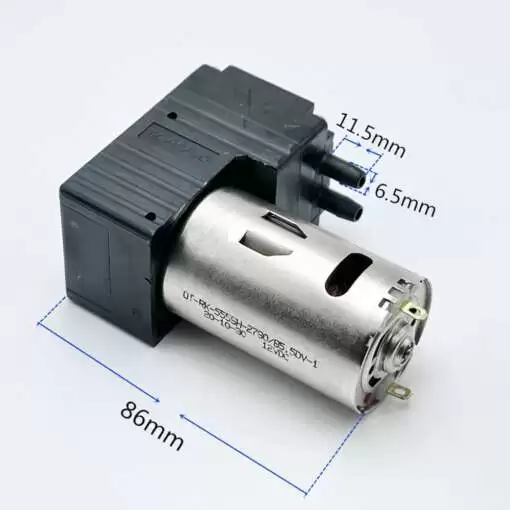

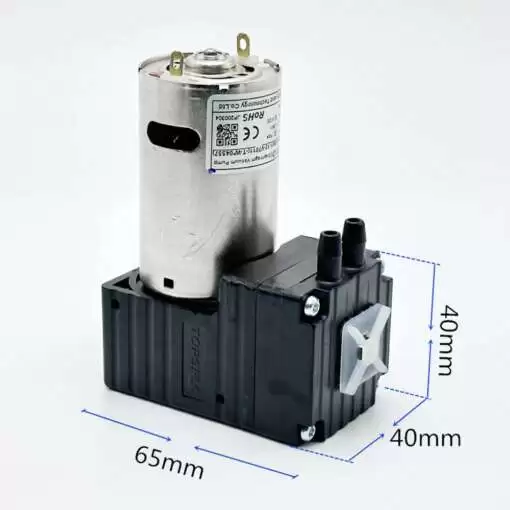

Dimensions:
