The TCS3200 Color Sensor Module enables precise color recognition by converting light intensity into a proportional frequency, ideal for embedded applications.
TCS3200 Color Sensor Module– High-Fidelity Color Detection for Embedded Systems
Features:
Integrated Color Sensing:Combines an array of photodiodes with red, green, blue, and clear filters, facilitating accurate color detection.
Programmable Output Frequency:Allows customization of the output frequency scale to suit specific application requirements.
Direct Microcontroller Interface:Outputs a square wave frequency directly proportional to light intensity, simplifying integration with microcontrollers.
Single-Supply Operation:Operates efficiently with a single supply voltage ranging from 2.7V to 5.5V, enhancing design flexibility.
Compact Form Factor:Encapsulated in a 5mm x 6.2mm surface-mount package, optimizing space utilization in embedded designs.
Specifications

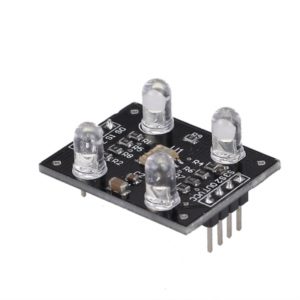

The Break-out board has TCS3200 color sensor
Support 3V-5V voltage input
Four bright white LED, on-board, can illuminate the object which does not emit light itself. Controllable light-emitting tube.
S1 S2 S3 S4 can be used as the pull-up or pull-down resistors on board.
PCB Size: 23mm X 30mm
Applications:
Color Sorting Systems:Differentiates objects based on color for automated sorting processes.
Color Matching:Ensures precise color matching in manufacturing and quality control.
Ambient Light Sensing:Adjusts device settings based on surrounding light conditions to enhance user experience.
Test Strip Analysis:Interprets color changes in diagnostic test strips for medical applications.
Interactive Displays:Detects user interaction through color changes, enabling dynamic display responses.
