Metal Momentary Push Switch On/Off Waterproof with LED Ring 12mm
The Metal Momentary Push Switch On/Off Waterproof with LED Ring 12mm is a premium-quality panel-mounted push button switch designed for applications that require a momentary switching action. Unlike a latching switch, the contacts are activated only while the button is being pressed and automatically return to their normal state once released, making it suitable for start, reset, trigger, and signal control functions.
Features:
- Momentary push button operation.
- Returns automatically when released.
- Waterproof IP67 construction.
- Compact 12mm panel mount design.
- Flat metal button with illuminated power symbol.
- Integrated LED ring indicator.

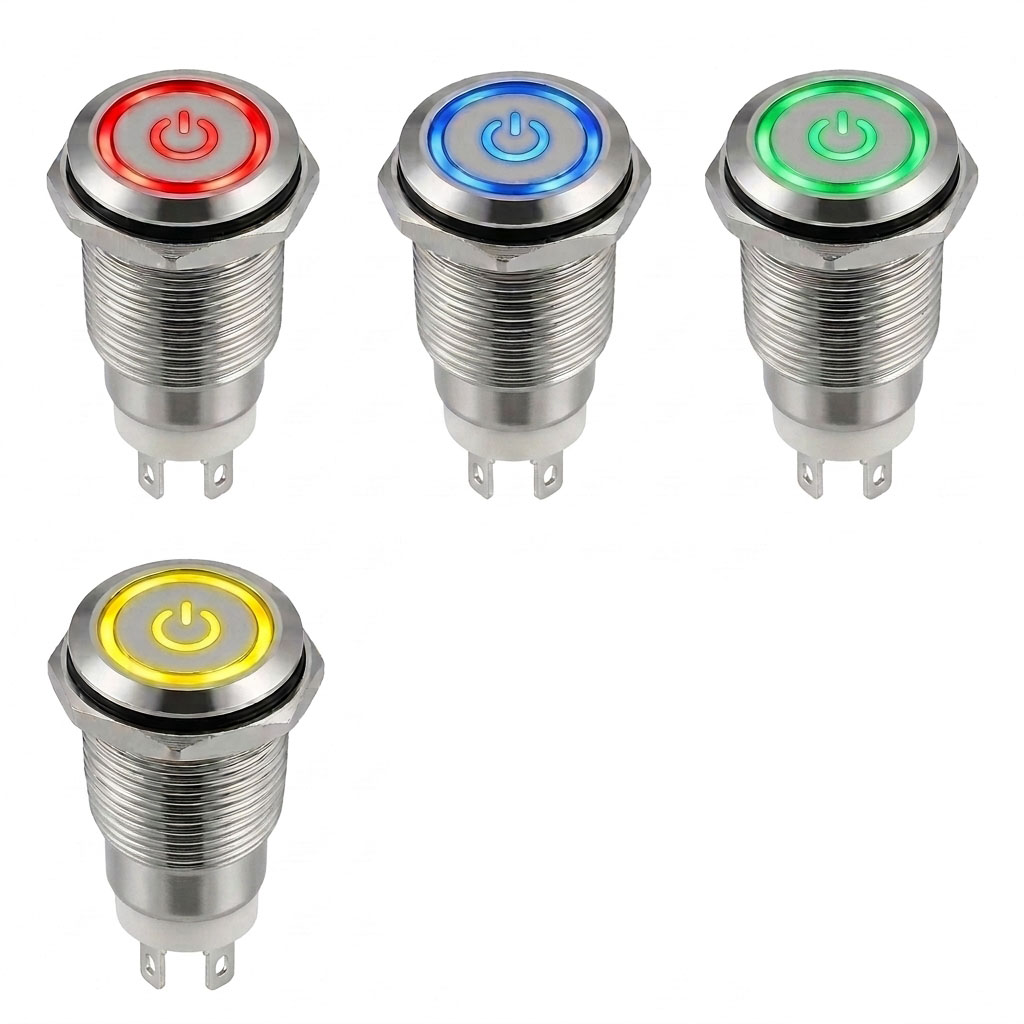

- Available in Red and Blue LED colors.
- LED voltage options of 12VDC, 24VDC, and 220VAC.
Specifications:
| Parameter | Details |
|---|---|
| Product Type | Metal Push Button Switch |
| Switch Type | Momentary |
| Operation | Push ON, Release OFF |
| Mounting Type | Panel Mount |
| Button Style | Flat Head with Power Symbol |

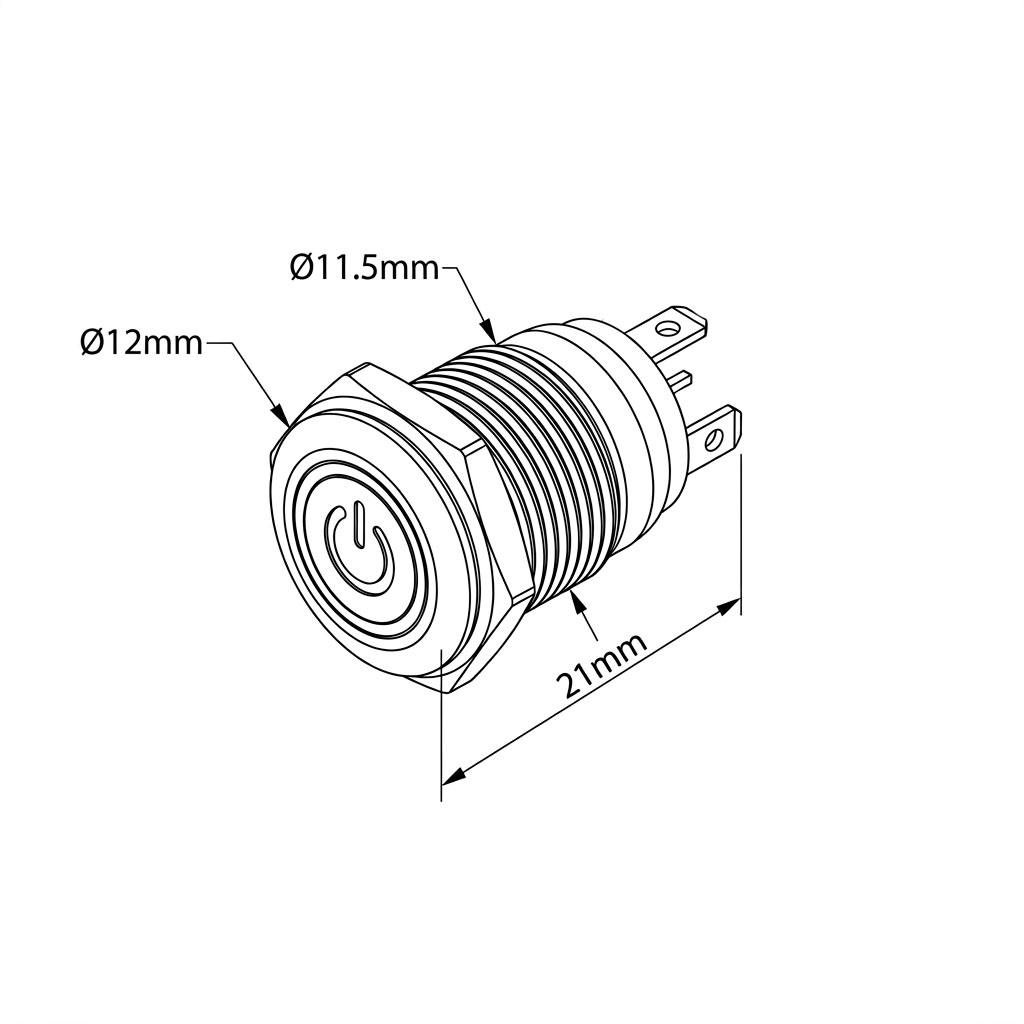

| Overall Length | 21mm (Including Pins) |
| LED Indicator | Ring LED |
| LED Voltage Options | 12VDC, 24VDC, 220VAC |
| LED Color Options | Red, Blue |
| Contact Configuration | 1NO (Normally Open) |
| Number of Pins | 4 |
| Pin Layout | 2 Switch Pins + 2 LED Pins |
| Terminal Type | Solder Terminals |
| Body Material | Nickel-Plated Brass |
| Button Material | Stainless Steel |
| Rear Housing Material | Engineering Plastic |
| Protection Rating | IP67 Waterproof |
| Operating Temperature | -20°C~+55°C |
Applications:
- Industrial control panels.
- Machine start and reset buttons.
- Automotive dashboards.
- Marine control systems.
- Home automation.
- CNC machines.
- Power supplies.
- DIY electronics projects.
- Access control systems.
- Electronic equipment enclosures.
Package Include:
1x Metal Momentary Push Switch On/Off Waterproof with LED Ring 12mm(choose: voltage/color)
