Metal Momentary Push Switch On/Off Waterproof with LED Ring 16mm
The 16mm Metal Momentary Push Switch with LED Ring is a durable, high-quality, and versatile switch designed for use in a variety of electronic and electrical applications. This switch is specifically engineered to provide reliable operation in challenging environments, featuring waterproof capabilities and a stylish LED ring for clear visual feedback.
Specifications:
- Mounting Cut Hole: 16mm
- Mounting Type: Panel mount
- Operation Type: Push Button
- LED Power: 12V
- LED Color: Red – White – Blue – Yellow – Green
- Switch Contact: 1NC 1NO
- Pin: 5
- Head Shape: Round Head
- Switch Rating: 12VDC or 220VAC
- Terminal Type: Solder
- Body Material: Brass Nickel-plated
- Operation Temperature: (-20) – (55)
- Panel Thickness: 1 – 6mm
Working Principle:

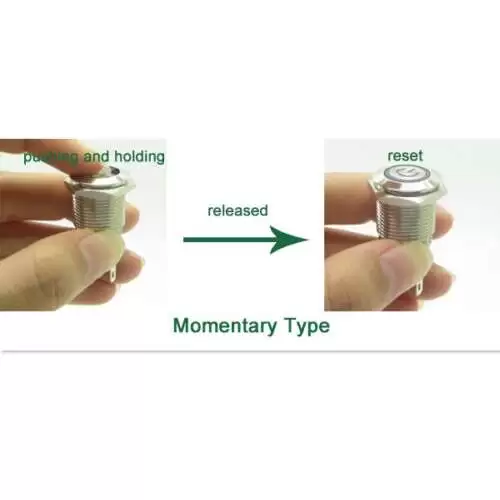

When the switch is pressed, the internal mechanism momentarily connects the circuit, allowing current to flow. When released, the switch returns to its original state, interrupting the current and turning off the connected device or system. The LED ring indicator illuminates when the circuit is active, giving a clear visual cue.
Typical Applications:
- Automotive: Used as power buttons, reset switches, or alarm triggers in vehicles or machinery.
- Industrial Control Panels: For use in control panels, where the switch provides quick, visible on/off feedback.
- Outdoor Equipment: Ideal for outdoor systems and machinery exposed to weather, given its waterproof and dustproof properties.
- DIY and Maker Projects: Perfect for DIY electronics, Arduino projects, and custom-built devices where a reliable, momentary switch is needed.
- Home Automation: Used in home automation systems for triggering actions or resetting devices.
