Metal Potentiometer 1K Ohm 3-Pin

5.50 EGP

Buy Now
Availability: In Stock
SKU:300000007149
  • An adjustable potentiometer can open up many interesting user interfaces. With this rotary potentiometer just turn the dial and the resistance changes.
  • Connect VCC to an outer pin, GND to the other, and the center pin will have a voltage that varies from 0 to VCC depending on the rotation of the pot
Specifications:
  • 1K ohm Single Linear Taper Rotary Potentiometers
  • 1K Ohm, 3 Terminals
  • Top adjustment type and knurled shaft for easy operation in daily use time.
  • Mainly used to control electrical devices such as volume controls on audio equipment.
  • Knurled shaft with split design for push-on knob.
  • Material: Metal Electronic Parts

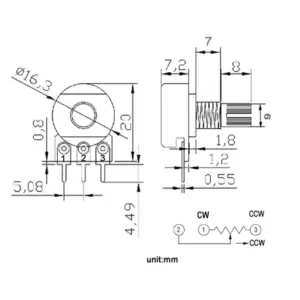

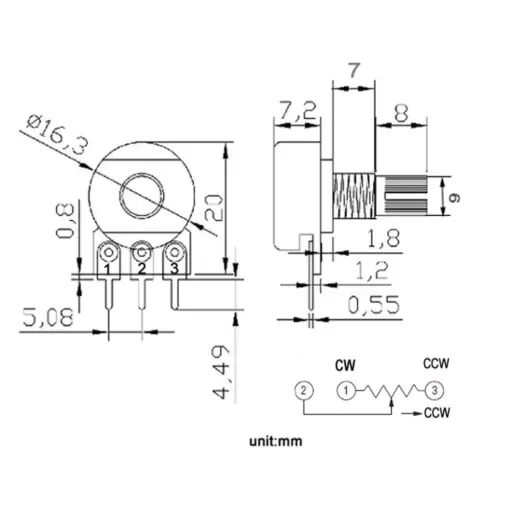

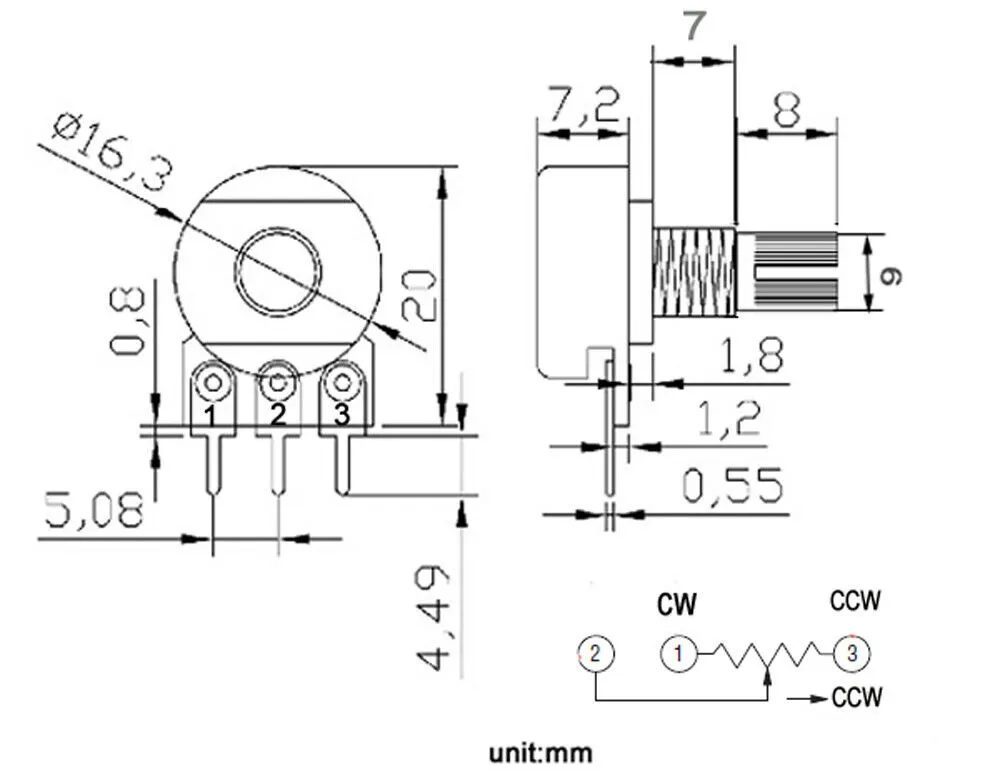

Dimensions:
