MITSUBISHI Lithium Battery 3.6V ER17330 A6BAT

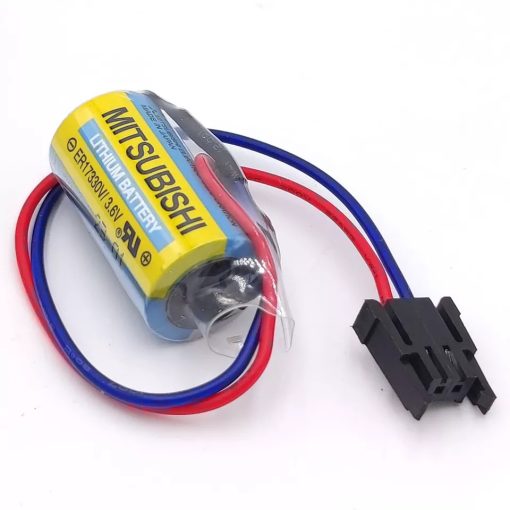

The Mitsubishi A6BAT (ER17330V) is a high‑energy, non‑rechargeable 3.6 V lithium battery specifically designed for PLC and servo‑drive memory backup and real‑time‑clock operation in industrial automation equipment. It features a plug‑in 2‑pin connector with pre‑attached lead wires for easy replacement without soldering.
Features
- High energy density – up to 2,000 mAh capacity
- Wide operating temperature range: -20°C to +60°C
- High density
- Low self-discharge rate
- Reliable performance for PLC and RTC applications
Specifications
| Parameter | Specification |
|---|---|
| Model Number | A6BAT / ER17330V |
| Battery Chemistry | Lithium Thionyl Chloride (Li-SOCl₂) |
| Nominal Voltage | 3.6 V |
| Nominal Capacity | 2 000 mAh (1 600–2 000 mAh) |
| Dimensions | 16 mm (diameter) × 30 mm (height) |
| Operating Temperature | -20°C to +60°C |
| Connector | CE171 2-pin with 130 mm cable |
| Compliance | RoHS, UN38.3 certified |
Applications
- PLC memory backup
- EEPROM/EPROM cassette data retention
- Real‑time‑clock power supply
- CNC machines, machine tools, instrumentation
- Alarm systems, meters, and other industrial control electronics
