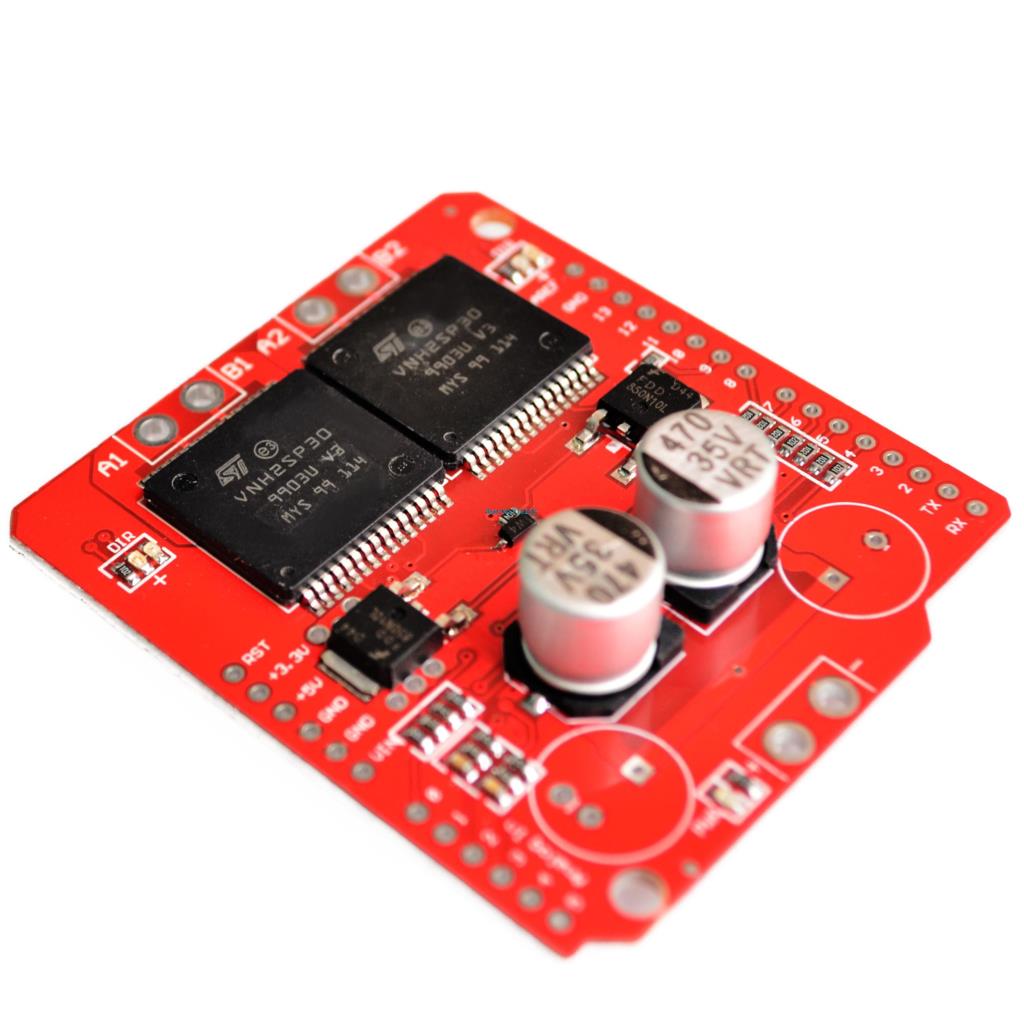

Arduino Shield “Monster Moto – Motor Driver 30A”

Features:

Voltage max: 16V

Maximum current rating: 30 A

Practical Continuous Current: 14 A

Current sensing available analog pin

MOSFET on-resistance: 19 mΩ (per leg)

Maximum PWM frequency: 20 kHz

Thermal Shutdown

Undervoltage and Overvoltage shutdown

Note: When using this board in extreme high-demand applications it may be necessary to improve thermal performance with a heat-sink or fan and to solder the wires directly to the board instead of using a screw terminal (in addition to the myriad other complications present in a high-current system) However, when using the board at currents up to 6A the chips will barely become noticeably warm.cjmcu
