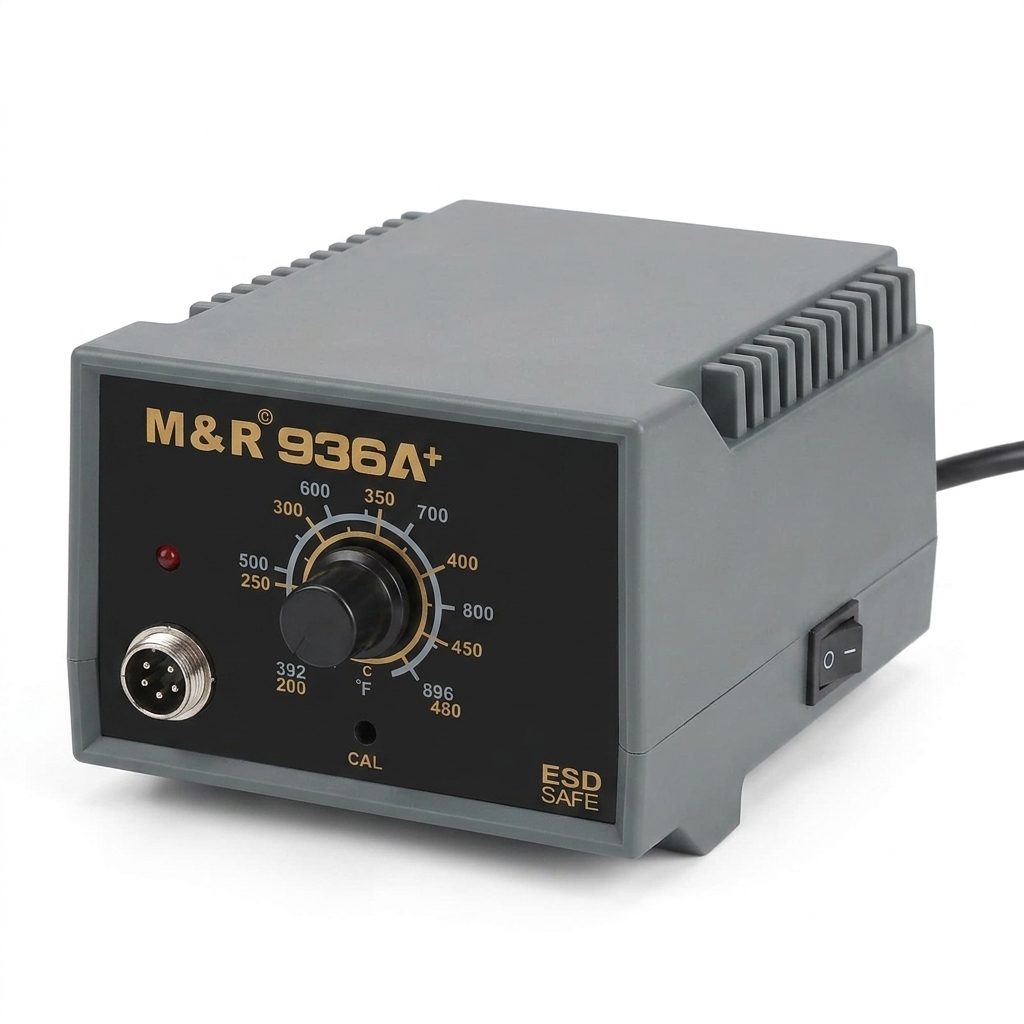

M&R 936A⁺ Hot Air Soldering Iron Station
The M&R 936A⁺ Temperature Controlled Soldering Station is a professional-grade soldering solution designed for electronics assembly, PCB repair, component replacement, prototyping, and laboratory work. Utilizing a closed-loop temperature control system with a ceramic heating element, the station delivers fast heat-up, accurate temperature regulation, and excellent thermal recovery to maintain consistent soldering performance.
Features:
- Adjustable temperature control.
- Temperature range from 200°C to 480°C.
- Ceramic heating element.
- Closed-loop PID temperature control.
- Fast heat-up and rapid temperature recovery.
- ESD-safe design.
- Adjustable calibration function.
- Dual Celsius and Fahrenheit temperature scale.
- Stable temperature control (±2°C static).
- Lightweight ergonomic soldering iron.
Specifications:
| Parameter | Value |
|---|---|
| Model | 936A+ |
| Control Type | Analog knob adjustment |
| Display Method | LED luminous tube indicator |
| Output Power | 60W |
| Input Voltage | 220VAC±10%, 50Hz |
| Output Voltage | AC 24V |
| Temperature Range | 200°C–480°C (392°F–896°F) |
| Temperature Stability | ±2°C (static) |
| Tip Ground Impedance | <2Ω |
| Tip Ground Voltage | <2mV |
| Heating Element | Ceramic heater |
| Working Temperature | 0°C–40°C, relative humidity <80% |
| Storage Temperature | -20°C–80°C, relative humidity <80% |
| ESD Protection | Yes |
| Dimensions (L × W × H) | 139.5mm × 114mm × 89mm |
Configuration:
Applications:
Applications:- PCB assembly.
- Electronic circuit repair.
- Through-hole soldering.
- Component replacement.
- DIY electronics projects.
- Arduino and Raspberry Pi projects.
- Educational laboratories.
- Mobile phone repair.
- Consumer electronics servicing.
- Industrial electronics maintenance.
- Prototype development.
- Hobby electronics.

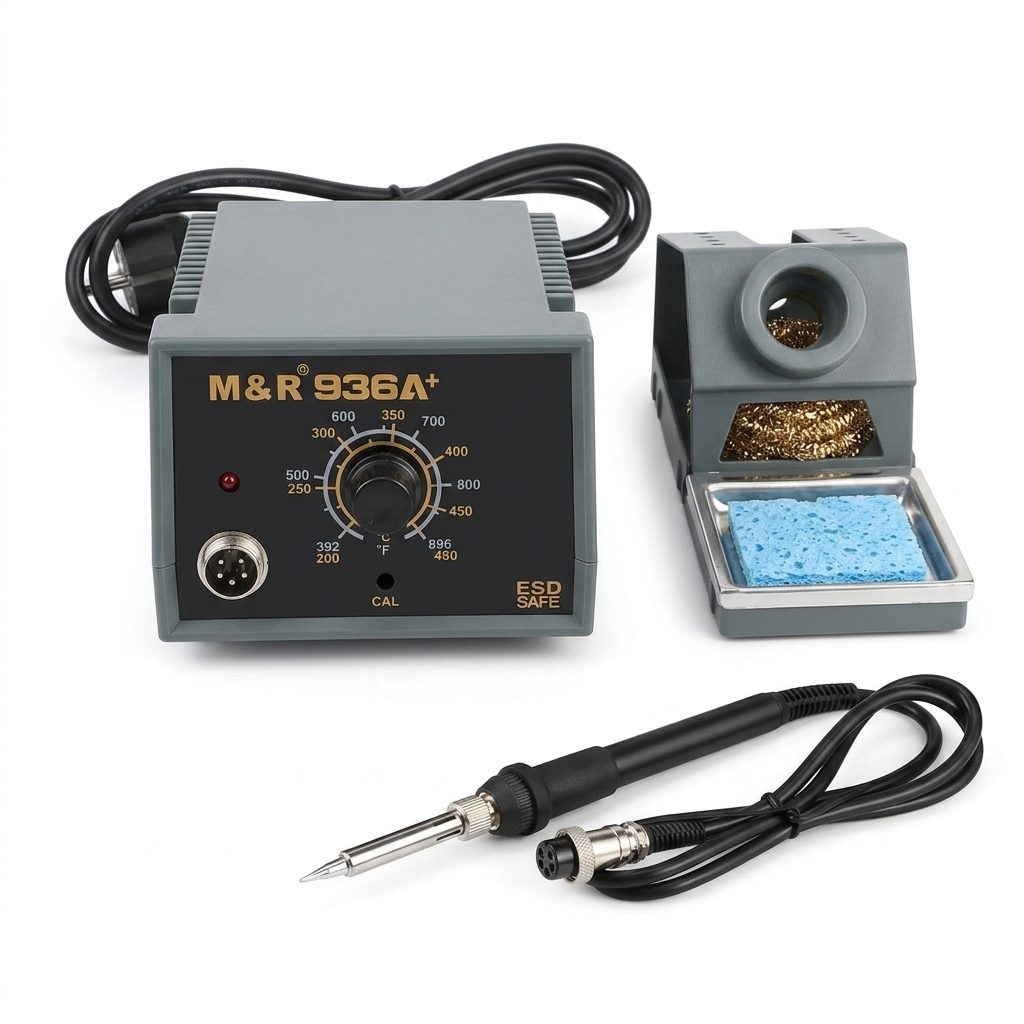

Package Include:
-
1x M&R 936A+ Soldering Station Host.
-

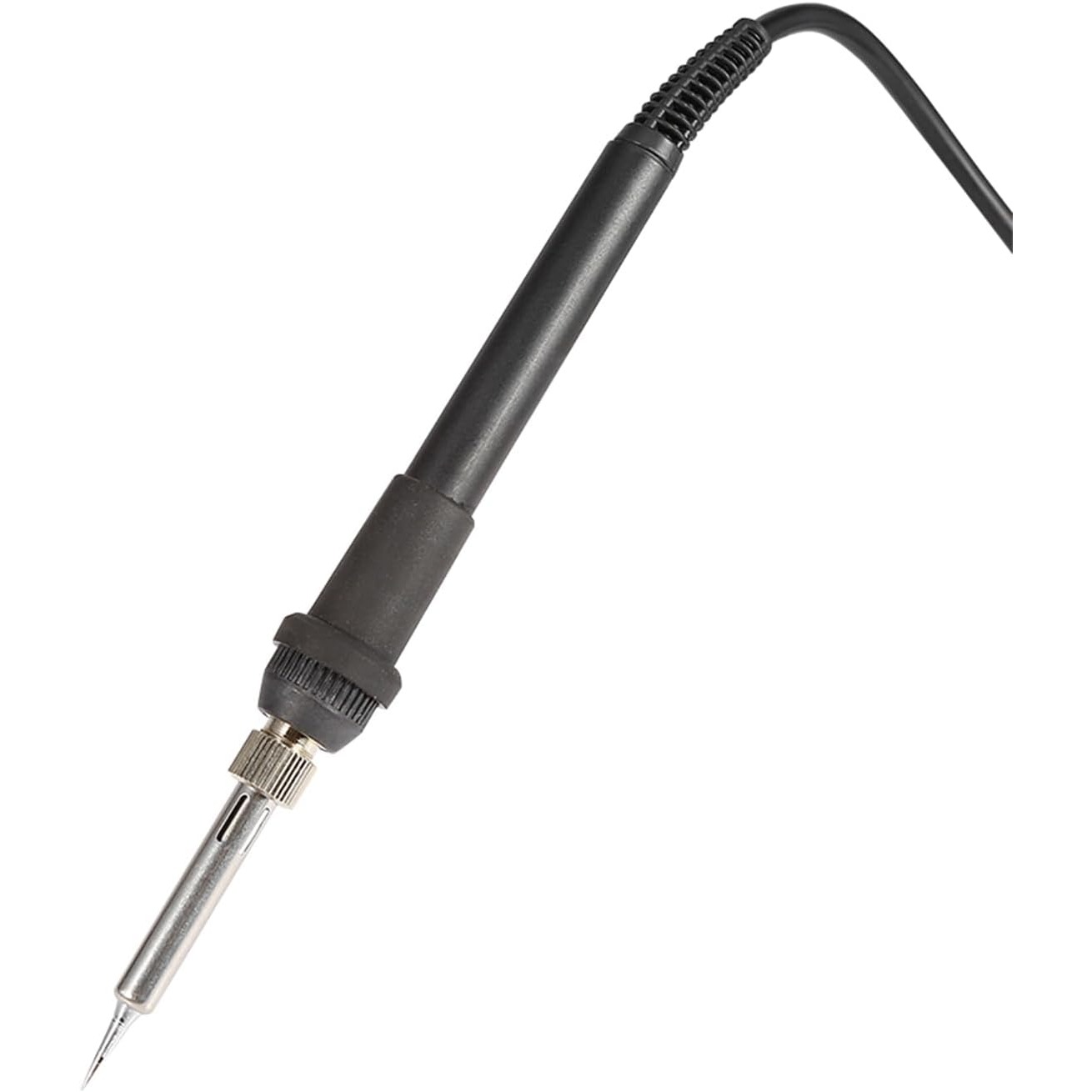

1x Soldering Iron Handle with Tip.
-
1x Soldering Iron Stand.
-
1x Power Cable.
-
1x Cleaning Sponge.
-
1x User Manual.
