NE592N

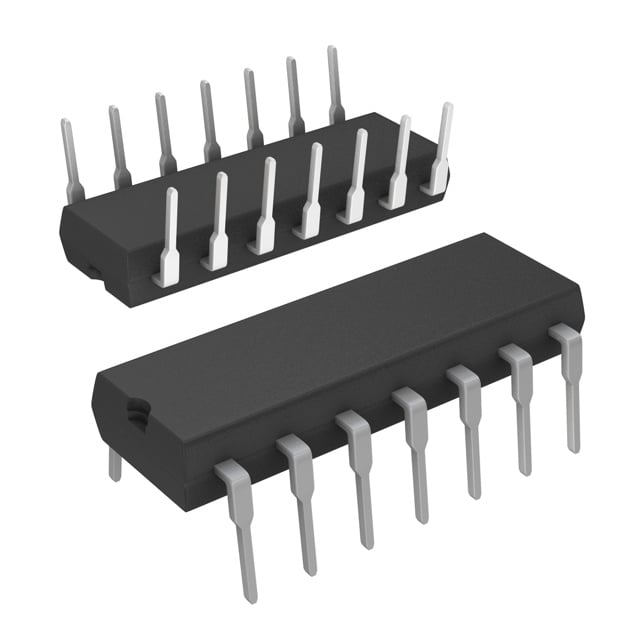

NE592N14 Video Amplifier 8V 10mA PDIP-14

NE592N14 wideband video amplifier in a 14-pin DIP. Features 120MHz bandwidth, fixed gains of 100/400, and 8V supply / 10mA output. Housed in a 14-pin plastic package.

18.00 EGP

Buy Now
Availability: In Stock
SKU:34963000847610
Categories:
Tags:, , , ,
NE592N14 Video Amplifier 8V 10mA PDIP-14

The NE592N14 is a monolithic, two-stage, differential output, wideband video amplifier housed in a 14-pin plastic Dual In-Line Package (DIP). It delivers high performance with selectable fixed gains of 100 and 400 without requiring external components, and its gain can be adjusted from 400 down to 0 using a single external resistor.

Features
  • High-Speed Bandwidth
  • Flexible Gain Control
  • Integrated Filtering
  • Simplified Design
  • Efficient Wave Shaping
  • High Reliability
Specifications
Absolute Maximum Ratings (TA = 25°C unless otherwise specified)
Symbol Parameter Rating Unit
VCC Supply voltage +8 V
VIN Differential input voltage +5 V
VCM Common-mode input voltage +6 V
IOUT Output current 10 mA
PDMAX Maximum power dissipation, TA = 25°C (still air) [N-14 package] 1.44 W
TA Operating ambient temperature range 0 to +70 °C
TSTG Storage temperature range -65 to +150 °C
DC Electrical Characteristics (VSS = ±6V, VCM = 0, Recommended VS = ±6.0V)
Symbol Parameter Test Conditions Min Typ Max Unit
Differential Voltage Gain (Standard Part)
AVOL Gain 1 (Pins G1A/G1B connected) RL = 2kΩ, VOUT = 3VP-P, TA = 25°C 250 400 600 V/V
AVOL Gain 1 (Pins G1A/G1B connected) RL = 2kΩ, VOUT = 3VP-P, 0°C ≤ TA ≤ 70°C 250 – 600 V/V
AVOL Gain 2 (Pins G2A/G2B connected) RL = 2kΩ, VOUT = 3VP-P, TA = 25°C 80 100 120 V/V
AVOL Gain 2 (Pins G2A/G2B connected) RL = 2kΩ, VOUT = 3VP-P, 0°C ≤ TA ≤ 70°C 80 – 120 V/V
Input & Output Impedance / Range
RIN Input resistance (Gain 1) TA = 25°C – 4.0 – kΩ
RIN Input resistance (Gain 2) TA = 25°C 10 30 – kΩ
RIN Input resistance (Gain 2) 0°C ≤ TA ≤ 70°C 8.0 – – kΩ
CIN Input capacitance Gain 2, TA = 25°C – 2.0 – pF
VIN Input voltage range 0°C ≤ TA ≤ 70°C ±1.0 – – V
ROUT Output resistance TA = 25°C – 20 – Ω
Offsets, Noise & Rejection Ratios
IOS Input offset current TA = 25°C / 0°C ≤ TA ≤ 70°C – 0.4 5.0 / 6.0 μA
IBIAS Input bias current TA = 25°C / 0°C ≤ TA ≤ 70°C – 9.0 30 / 40 μA
VNOISE Input noise voltage BW 1kHz to 10MHz, TA = 25°C – 12 – μVRMS
CMRR Common-mode rejection ratio Gain 2, VCM = ±1V, f < 100kHz, TA = 25°C 60 86 – dB
CMRR Common-mode rejection ratio Gain 2, VCM = ±1V, f = 5MHz, TA = 25°C 50 60 – dB
PSRR Supply voltage rejection ratio Gain 2, ΔVS = ±0.5V, TA = 25°C – 70 – dB
VOS Output offset voltage (Gain 1) RL = ∞, 0°C ≤ TA ≤ 70°C – – 1.5 V
VOS Output offset voltage (Gain 2) RL = ∞, 0°C ≤ TA ≤ 70°C – – 1.5 V
VOS Output offset voltage (Gain 3 – all open) RL = ∞, TA = 25°C / 0°C ≤ TA ≤ 70°C – 0.35 0.75 / 1.0 V
Voltages & Supply Current
VCM Output common-mode voltage RL = ∞, TA = 25°C 2.4 2.9 3.4 V
VOUT Output voltage swing differential RL = 2kΩ, TA = 25°C / 0°C ≤ TA ≤ 70°C 3.0 / 2.8 4.0 – V
ICC Power supply current RL = ∞, TA = 25°C / 0°C ≤ TA ≤ 70°C – 18 24 / 27 mA
AC Electrical Characteristics (TA = 25°C, VSS = ±6V, VCM = 0, VOUT = 1VP-P)
Symbol Parameter Test Conditions Min Typ Max Unit
BW Bandwidth Gain 1 40 – – MHz
BW Bandwidth Gain 2 90 – – MHz
tr Rise time Gain 1 – 10.5 – ns
tr Rise time Gain 2 – 4.5 – ns
PD Propagation delay Gain 1 – 7.5 10 ns
PD Propagation delay Gain 2 – 6.0 10 ns
Applications
  • Floppy Disk Head Amplifier
  • Video Amplifier
  • Pulse Amplifier in Communications
  • Magnetic Memory
  • Video Recorder Systems
Package Content
  • 1 x NE592N14 Video Amplifier 8V 10mA PDIP-14
DataSheet
