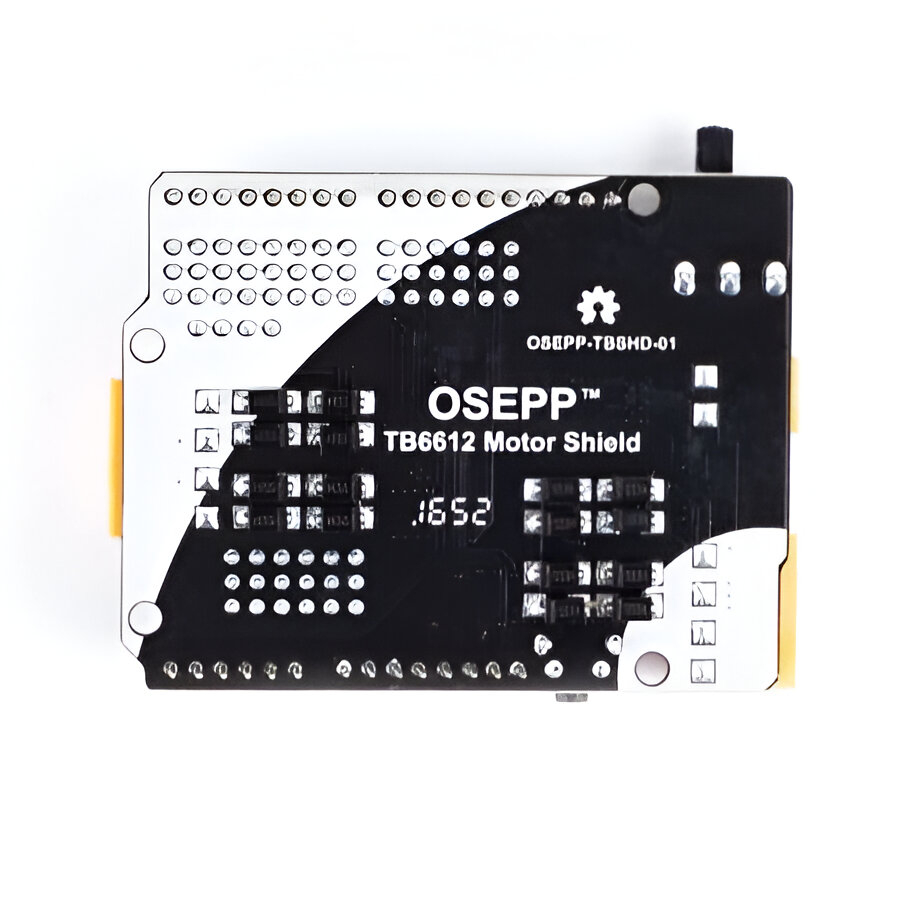

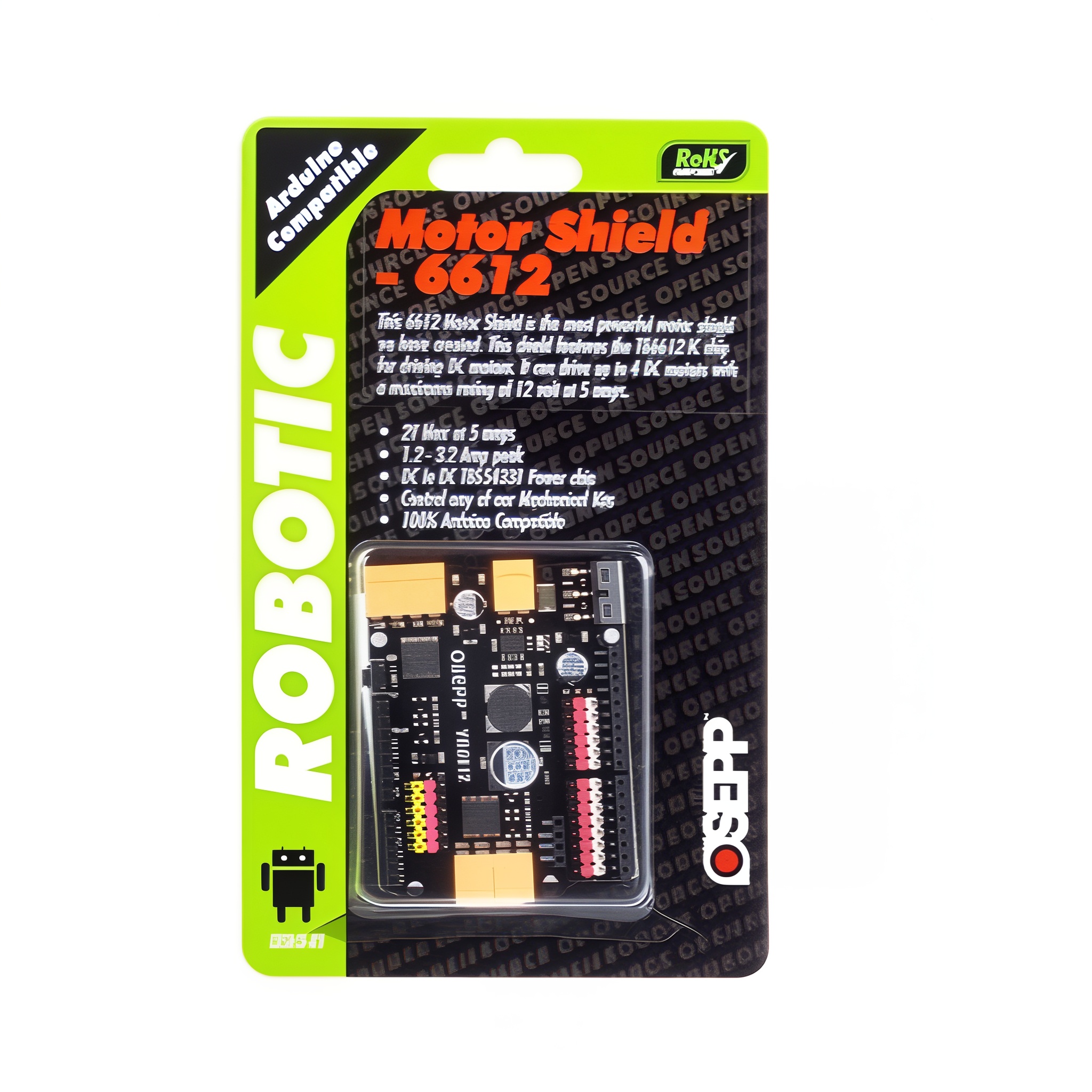

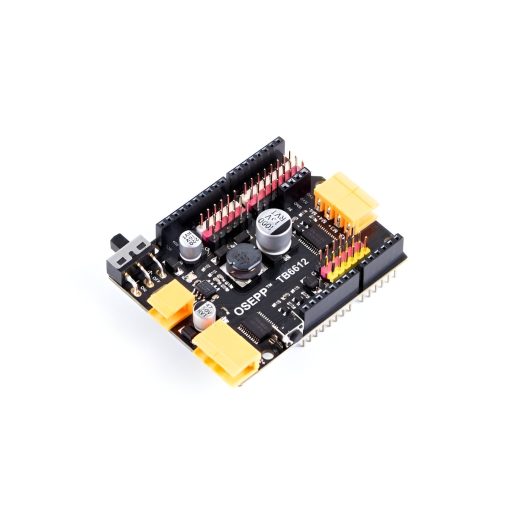

OSEPP TBSHD-01 Motor Driver Shield 6122
The OSEPP TBSHD-01 Motor Driver Shield 6122 is a powerful and reliable solution for controlling DC motors and stepper motors in Arduino-based projects. With its dual H-Bridge design, this motor driver shield can control two motors simultaneously, making it ideal for robotics, automation, and other motor-driven applications. It is designed to be stacked directly on top of an Arduino board, providing easy integration and minimal wiring.
Features:
- Dual H-Bridge design for controlling two DC motors or stepper motors.
- Supports up to 2A continuous current per motor.
- Thermal shutdown and overcurrent protection for safety.
- Easy-to-stack design, compatible with Arduino boards.
- Provides multiple pins for connecting sensors and actuators.
Specifications:
| Compatibility | Arduino Uno and compatible boards |
| Motor Channels | 4 |
| Max Motor Voltage | 12 V |
| Max Current | 5 A |
| Peak Current | 1.2 A to 3.2 A |
| Driver IC | TB6612FNG (x2) |
| Power IC | TPS54331 |
Applications:
- Ideal for controlling motors in robotics and automation systems.
- Perfect for creating mobile robots, moving platforms, and actuators.
- Used in projects requiring precise control of DC motors or stepper motors.
- Suitable for DIY projects, educational applications, and prototyping.
Package Include:
1x OSEPP TBSHD-01 Motor Driver Shield 6122.
